Blue single-fan low-profile graphics card with HDMI and DisplayPort outputs

SRhonyra

SRhonyra GTX 1060 6GB Low Profile graphics card

SKU CH-Y592-B1Q6D

Low-profile GTX 1060 with 6 GB GDDR5, 1280 CUDA cores, 70 W TDP and HDMI 2.0 plus DisplayPort 1.4a for dual 4K monitors

  • Core Clock1506 MHz
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce GTX 10 Series
  • GPUGeForce GTX 1060
  • ArchitecturePascal
  • Boost Clock1709 MHz

Option GTX 1060 6GB DP+HDMI Outputs

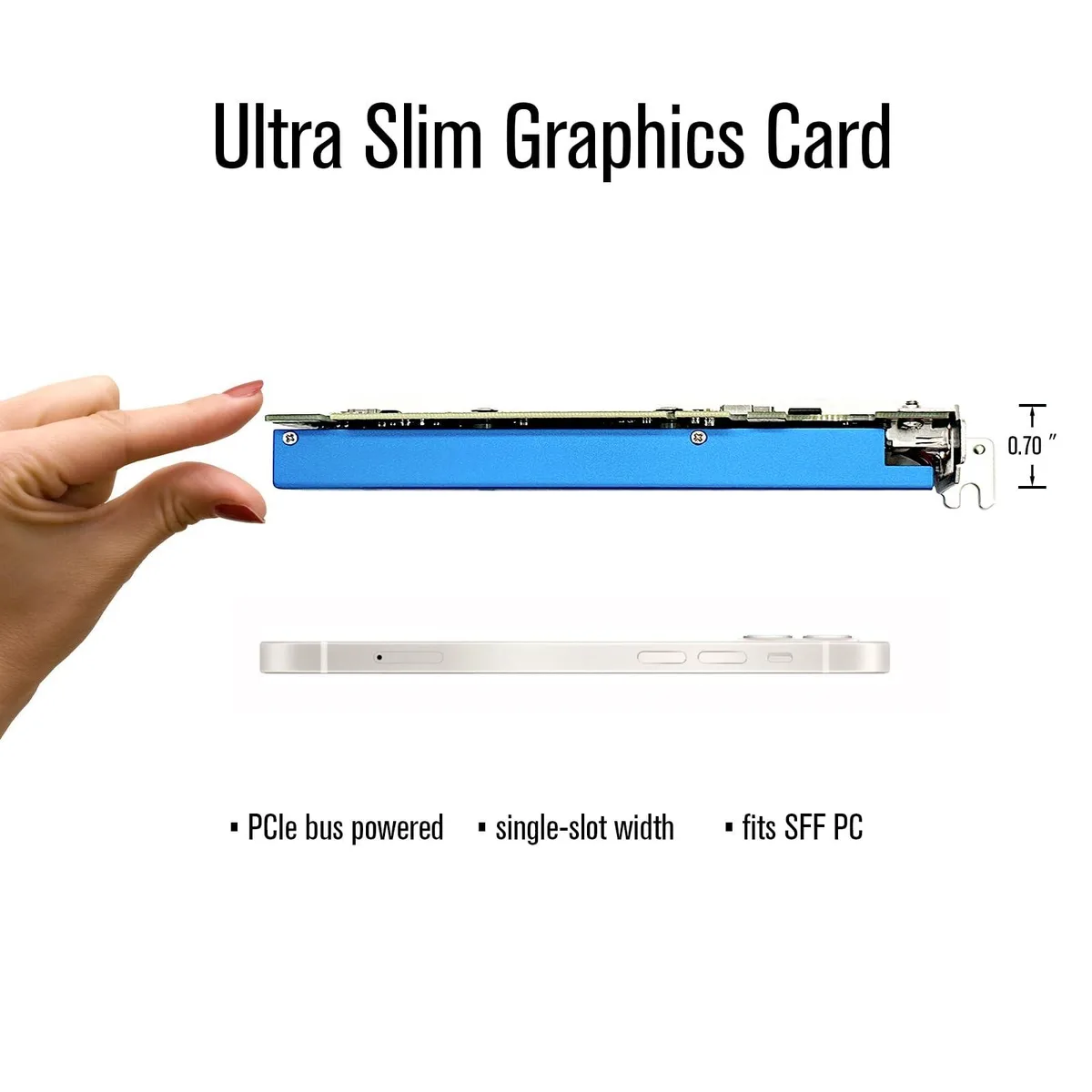

  • Low-profile single-slot card fits small-form-factor builds at 6.61×2.7 inches and 0.71 inches thick
  • 6 GB GDDR5 memory meets 4–6 GB VRAM needs for gaming and creative workloads
  • Pascal architecture with 1280 CUDA cores and 1709 MHz boost clock delivers strong 1080p performance
  • 75 W PCIe bus power requires no extra connector and works with a 200 W supply
  • HDMI 2.0 and DisplayPort 1.4a drive two displays up to 4096×2160 resolution

Low-Profile GTX 1060 for SFF Builds

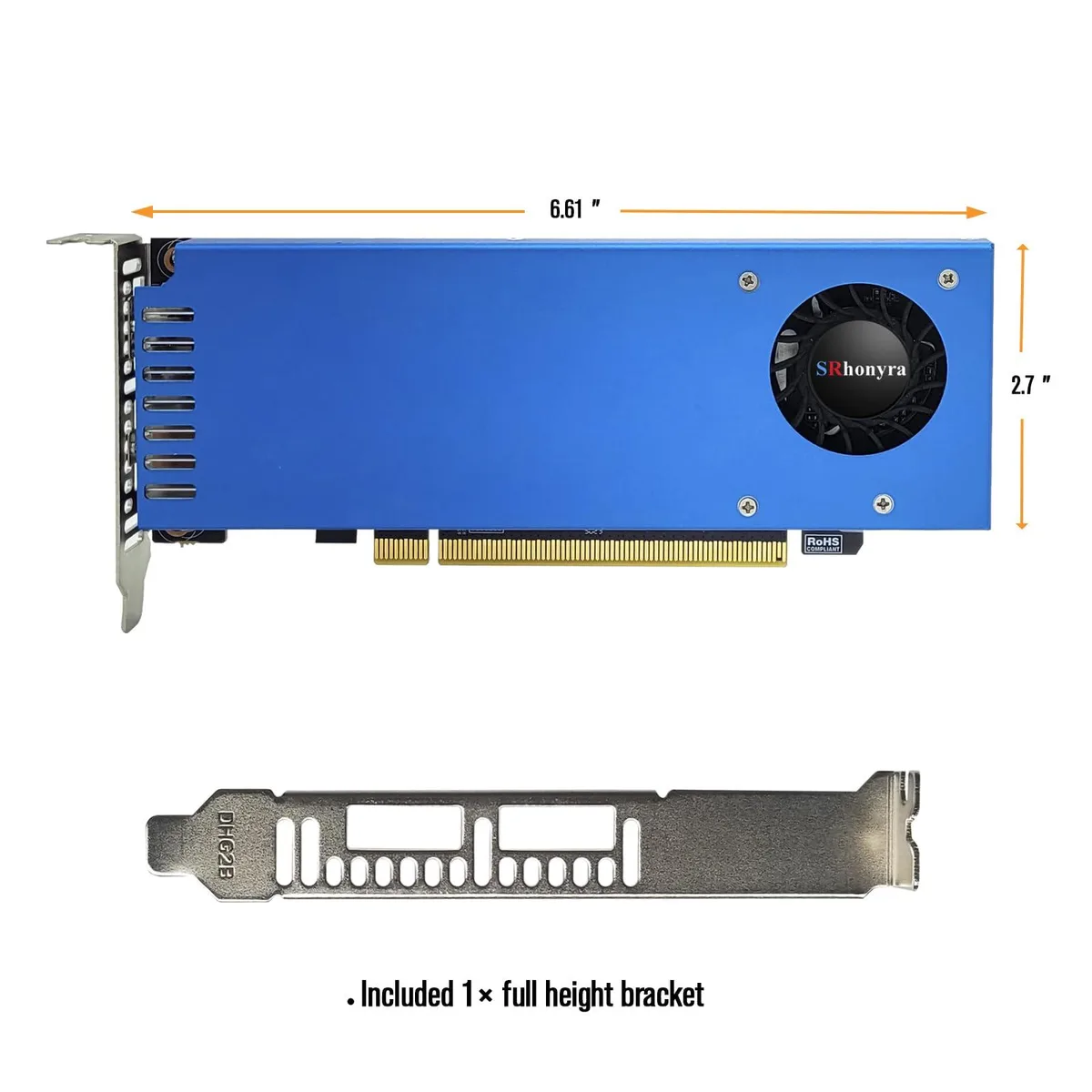

The SRhonyra GTX 1060 6GB is a single-slot graphics card measuring 6.61 by 2.7 inches and 0.71 inches thick. It targets small-form-factor systems that cannot accept full-length boards. A full-height bracket is included for standard chassis installations. The Pascal GPU runs at a 1506 MHz base clock and a 1709 MHz boost clock.

6 GB GDDR5 on a 192-Bit Bus

The 6 GB GDDR5 frame buffer connected via a 192-bit interface is the specification that determines suitability for modern workloads. It meets the minimum VRAM requirement for 3D modelling, animation, video editing and graphic design tasks that sit between 4 GB and 6 GB. The memory configuration also covers most graphics-based games at 1080p resolution.

70 W TDP Powered by PCIe Bus

With a 70 W thermal design power and a 75 W PCIe bus draw, the card operates without auxiliary power connectors. The single-fan cooler manages sustained heat output within the 200 W recommended PSU headroom. This allows continuous compute or render sessions in compact enclosures where airflow is limited and extra cabling is impractical.

Highlights

  • Low-profile single-slot card fits small-form-factor builds at 6.61×2.7 inches and 0.71 inches thick
  • 6 GB GDDR5 memory meets 4–6 GB VRAM needs for gaming and creative workloads
  • Pascal architecture with 1280 CUDA cores and 1709 MHz boost clock delivers strong 1080p performance
  • 75 W PCIe bus power requires no extra connector and works with a 200 W supply
  • HDMI 2.0 and DisplayPort 1.4a drive two displays up to 4096×2160 resolution

Specifications

Core Clock1506 MHz
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce GTX 10 Series
GPUGeForce GTX 1060
ArchitecturePascal
Boost Clock1709 MHz
CUDA Cores1280
Max Resolution4096 x 2160
ColorBlue
AI FeaturesAI Ready
3D VISION Game ReadyYes
TrueAudio SupportYes
CoolerSingle Fan
Thermal Design Power70W
Recommended PSU Wattage200W
HDCP ReadyYes
DisplayPort1 x DisplayPort 1.4a
DVINo
HDMI1 x HDMI 2.0
Multi-Monitor Support2
Card Dimensions (L x H)6.61 x 2.7 inches
Slot WidthSingle Slot
Form FactorLow Profile
Low Profile Bracket IncludedYes
DirectXDirectX 12
OpenGLOpenGL 4.6
BrandSRhonyra
ModelGTX 1060
InterfacePCI Express 3.0 x16
Effective Memory Clock2002 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
FeaturesStandard Low Profile Size
Package ContentsSRhonyra GTX 1060 6GB low profile graphics card x1
Unattached full-height bracket x1
User manual x1

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 1709 MHz boost clock perform in a real system?

The card reaches 1709 MHz boost clock under load while staying within a 70W thermal design power envelope, so it runs on a 200W supply without extra cables.

What does the PCIe 3.0 x16 interface limit in practice?

The PCIe 3.0 x16 bus delivers up to 75 Watts, so the card needs no external power connector and fits any board with a full-length slot.

Will the 6.61 by 2.7 inch single-slot card fit my slim case?

At 6.61 inches long, 2.7 inches wide and .71 inches thick, it slides into low-profile chassis, and a full-height bracket is included for standard towers.
