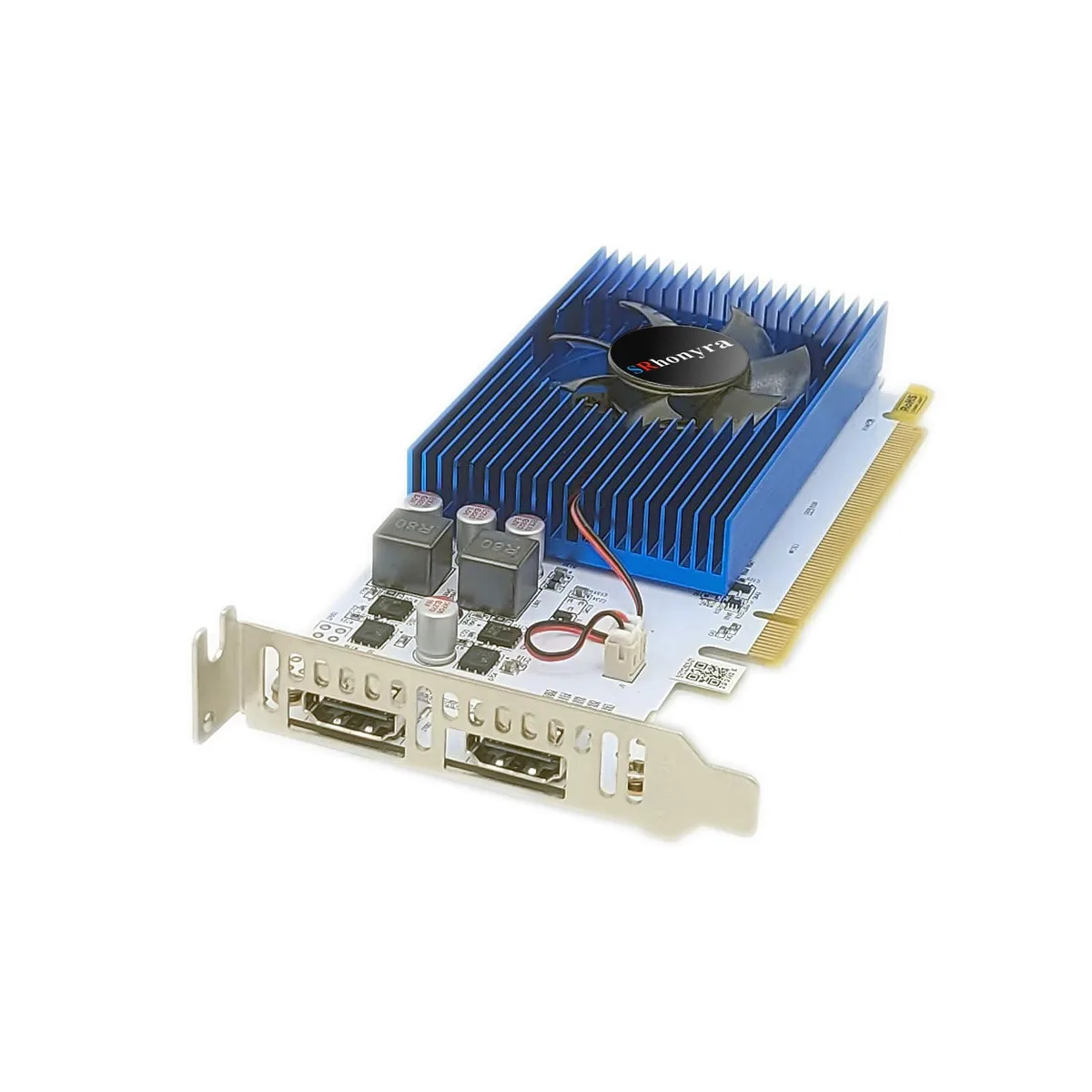

Blue low-profile graphics card, single-slot, dual HDMI ports, compact half-height bracket

SRhonyra

SRhonyra R5 230 Low Profile 2GB DDR3 Dual HDMI Graphics Card

SKU CH-QEJF-HB4AN

Low-profile R5 230 with 2 GB DDR3 and dual HDMI for dual 1080p displays at 60 Hz, 20 W bus-powered, single-slot, 5.7-inch length, supports Windows and Linux

  • Core Clock625 megahertz
  • Chipset ManufacturerAMD
  • GPU SeriesVolcanic Islands (R5 200)
  • GPUR5 230
  • ArchitectureTeraScale 2
  • Boost Clock625 megahertz
  • Dual HDMI outputs enable two monitors without adapters
  • 20 W TDP runs on bus power with a 180 W PSU
  • Low-profile, single-slot design fits 5.7 × 2.6 inch SFF cases
  • 2 GB DDR3 and 625 MHz clock handle 1080p video and office apps
  • Drivers 15.7.1 support Windows 10, 8, 7 and Linux

Entry-Level GPU for Compact Builds

The SRhonyra R5 230 is a low-profile graphics card built on AMD TeraScale 2 architecture. It targets small-form-factor desktops or 2U servers that need discrete video output without a power cable. The single-slot design fits tight chassis where integrated graphics are insufficient for multi-monitor work.

2 GB DDR3 Frame Buffer and 20 W TDP

Two gigabytes of DDR3 memory drive basic desktop tasks, video playback and dual 1080p displays at 60 Hz. The 20 W thermal design power draws entirely from the PCIe 2.0 x16 slot, so a 180 W or 200 W power supply is adequate. Demanding 3D workloads or modern games will exceed the available memory bandwidth and shader throughput.

PCIe 2.0 x16 Interface and Dual HDMI Outputs

The card communicates over a PCIe 2.0 x16 link, limiting peak bandwidth to the 2.0 specification. Two native HDMI ports support duplicated or extended splicing modes without adapters. Maximum resolution per output is 1920 x 1080 at 60 Hz, so higher refresh rates or 4K panels are not supported.

Highlights

  • Dual HDMI outputs enable two monitors without adapters
  • 20 W TDP runs on bus power with a 180 W PSU
  • Low-profile, single-slot design fits 5.7 × 2.6 inch SFF cases
  • 2 GB DDR3 and 625 MHz clock handle 1080p video and office apps
  • Drivers 15.7.1 support Windows 10, 8, 7 and Linux

Specifications

Core Clock625 megahertz
Chipset ManufacturerAMD
GPU SeriesVolcanic Islands
(R5 200)
GPUR5 230
ArchitectureTeraScale 2
Boost Clock625 megahertz
Max Resolution1920x1080@60Hz pixels
ColorBlue
Cooler1
Thermal Design Power20W
Recommended PSU Wattage180 Watts
Power ConnectorNo
DisplayPortHDMI *2
DVINo
HDMI2 x HDMI
Multi-Monitor Support2
Card Dimensions (L x H)5.7 x 2.6 inches
Slot WidthSingle Slot
Form FactorLow Profile Ready
Max GPU Length145 mm
Low Profile Bracket IncludedYes
DirectXDirectX 11.2
OpenGLOpenGL 4.4
BrandSRhonyra
ModelSR232H21
Part NumberSR232H21
InterfacePCIe 2.0 x16
Effective Memory Clock533 MHz
Memory Size2 GB
Memory Interface64 bits
Memory TypeGDDR3
FeaturesDual Native HDMI Ports
Package Contents1 x R5 230 low profile graphics card
1 x User manual
1 x Full-height bracket

Questions about this item

Will this card fit in a small-form-factor case or 2U server?

The card measures 5.7 x 2.6 inches, uses a single-slot design and is low-profile ready, so it fits SFF desktops and 2U servers.

Do I need a separate power cable or a large power supply?

It draws 20 W from the PCIe 2.0 x16 slot with no external connector; the manufacturer recommends a minimum 180 W PSU.

Can I run two HDMI monitors without adapters and which modes are supported?

Two native HDMI ports support duplicated and splicing modes for a dual-monitor setup up to 1920x1080@60Hz.
