SSK
SSK HE-C325 Aluminum NVME Enclosure USB 3.1 Gen 2 10Gbps 2242/2260/2280
Aluminium enclosure turns an M.2 NVME drive into a 10 Gbps USB-C portable SSD with tool-free fitting for 2242, 2260 and 2280 lengths
- ColorGray
- SizeNVMe PCIe 2242/2260/2280
- TypeEnclosure
- MaterialAluminum
- Thunderbolt 3Yes
- Internal InterfaceM.2 NVME M-Key
- Up to 10 Gbps transfer speed with USB 3.1 Gen 2 interface
- Tool-free installation fits 2242, 2260 and 2280 NVME M-Key SSDs
- Aluminium alloy shell provides passive cooling for sustained performance
- JMS583 controller supports UASP and TRIM across Windows, Linux and Mac
- Blue LED indicates real-time data activity at a glance
Aluminium NVMe Enclosure with Thunderbolt 3

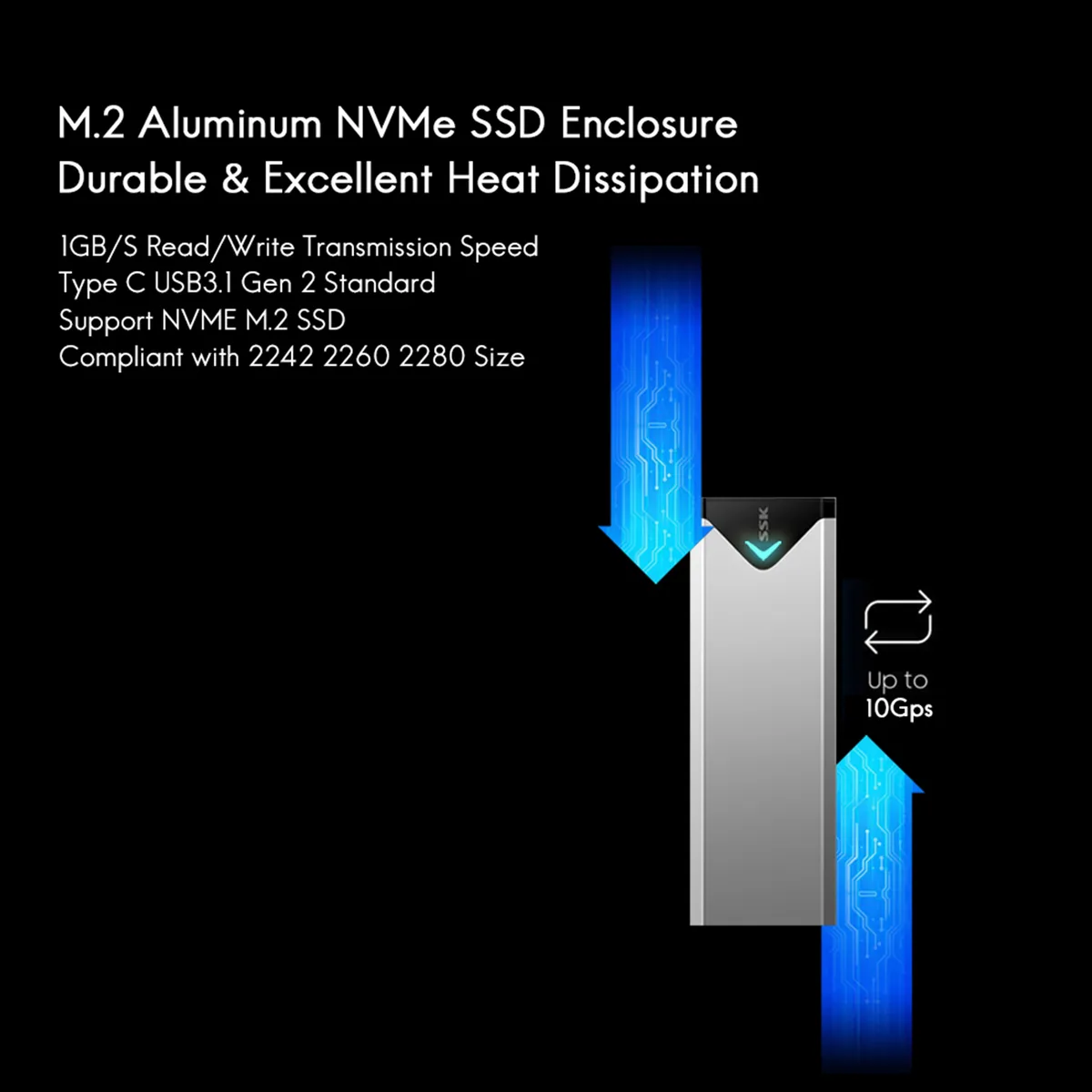

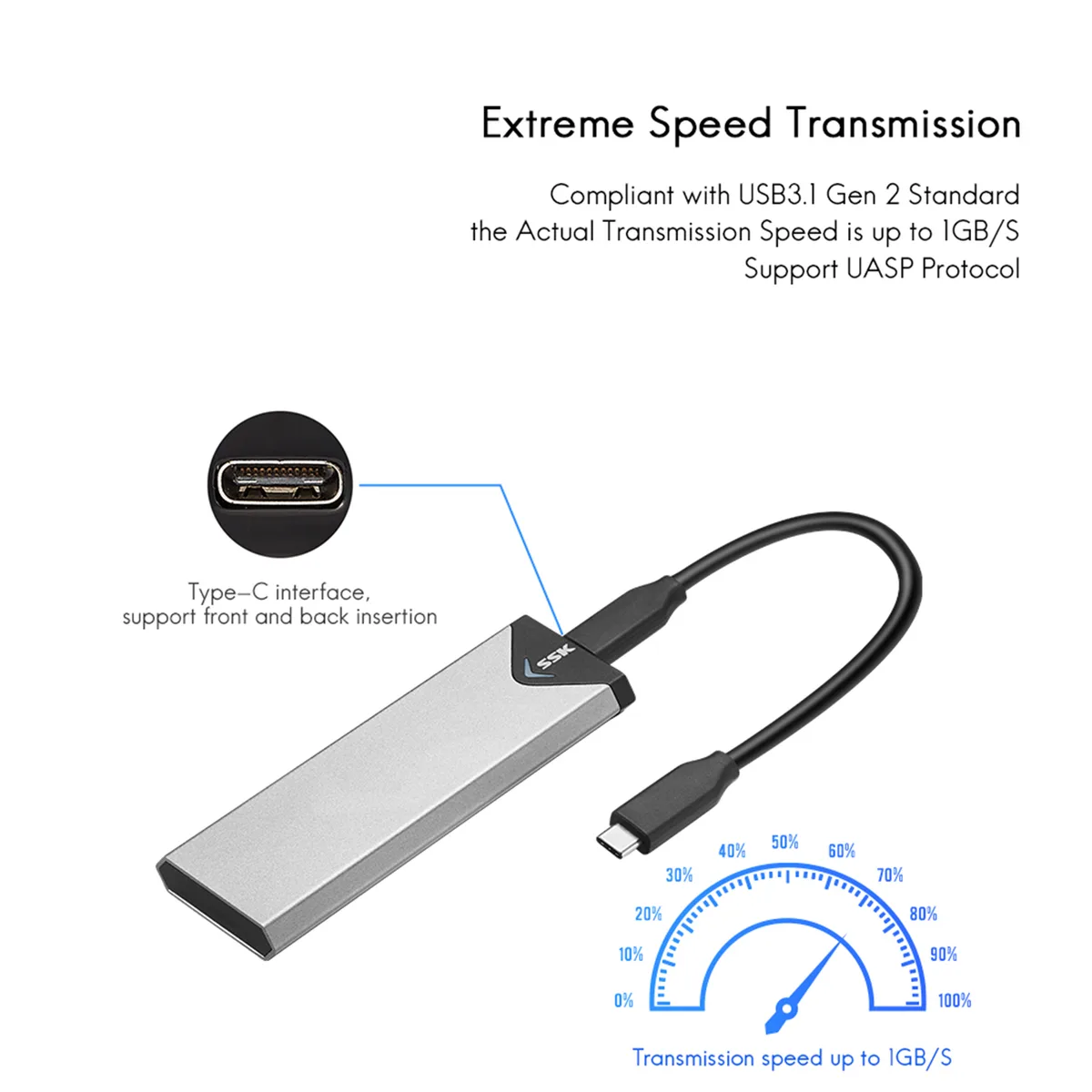

The SSK HE-C325 is an aluminium enclosure that accepts a single M.2 NVMe SSD in 2242, 2260 or 2280 sizes. It connects through a USB-C port that runs at USB 3.1 Gen 2 10 Gbps and also supports Thunderbolt 3. A JMS583 controller provides UASP and TRIM support across Windows, Linux and macOS.
For NVMe drives only — SATA and AHCI excluded
This enclosure suits users who want to turn a spare PCIe NVMe M-Key drive into fast external storage. It will not work with M.2 SATA SSDs, PCIe AHCI drives, Wi-Fi or capture cards, mSATA modules or original MacBook SSDs. Builders needing SATA support should choose a different model.
M-Key NVMe requirement decides compatibility
The decisive specification is the internal M.2 M-Key NVMe interface limited to 2242, 2260 and 2280 form factors. Only PCIe-based NVMe drives up to 4 TB are supported; SATA or AHCI variants will not function.
Highlights
- Up to 10 Gbps transfer speed with USB 3.1 Gen 2 interface
- Tool-free installation fits 2242, 2260 and 2280 NVME M-Key SSDs
- Aluminium alloy shell provides passive cooling for sustained performance
- JMS583 controller supports UASP and TRIM across Windows, Linux and Mac
- Blue LED indicates real-time data activity at a glance
Specifications
| Brand | SSK |
|---|---|
| Model | HE-C325 |
| Color | Gray |
| Size | NVMe PCIe 2242/2260/2280 |
| Type | Enclosure |
| Material | Aluminum |
| Thunderbolt 3 | Yes |
| Internal Interface | M.2 NVME M-Key |
| External Interface | USB 3.1 Gen 2 |
| HDD Count Supported | Single SSD |
| Number of Bay | 1 |
| Maximum Capacity (per Bay) | Up to 4TB |
Questions about this item
Which M.2 length should I choose for this enclosure?
The enclosure accepts 2242, 2260 and 2280 NVMe M-Key SSDs; pick the length that matches your drive.
What real-world speed does the 10 Gbps USB 3.1 Gen 2 link deliver?
Expect up to 10 Gbps with a compatible NVMe drive and USB 3.1 Gen 2 or Thunderbolt 3 host; the JMS583 controller supports UASP and TRIM for sustained throughput.
Does the USB-C port require Thunderbolt 3 to hit 10 Gbps?
No — USB 3.1 Gen 2 at 10 Gbps works over standard USB-C; Thunderbolt 3 is also supported but not required for the rated speed.
