Black 95mm PWM CPU cooler with aluminium heatsink for LGA1155/1156

STARTECH

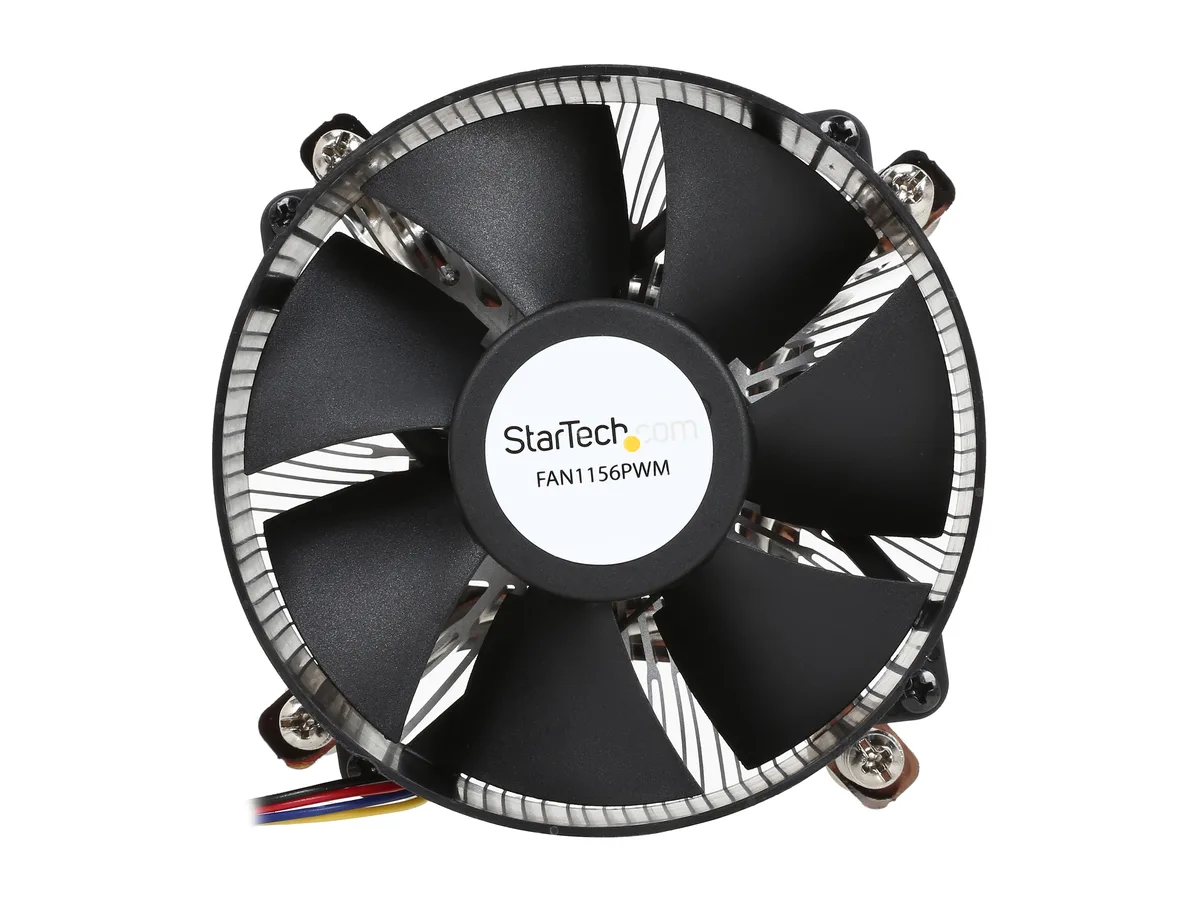

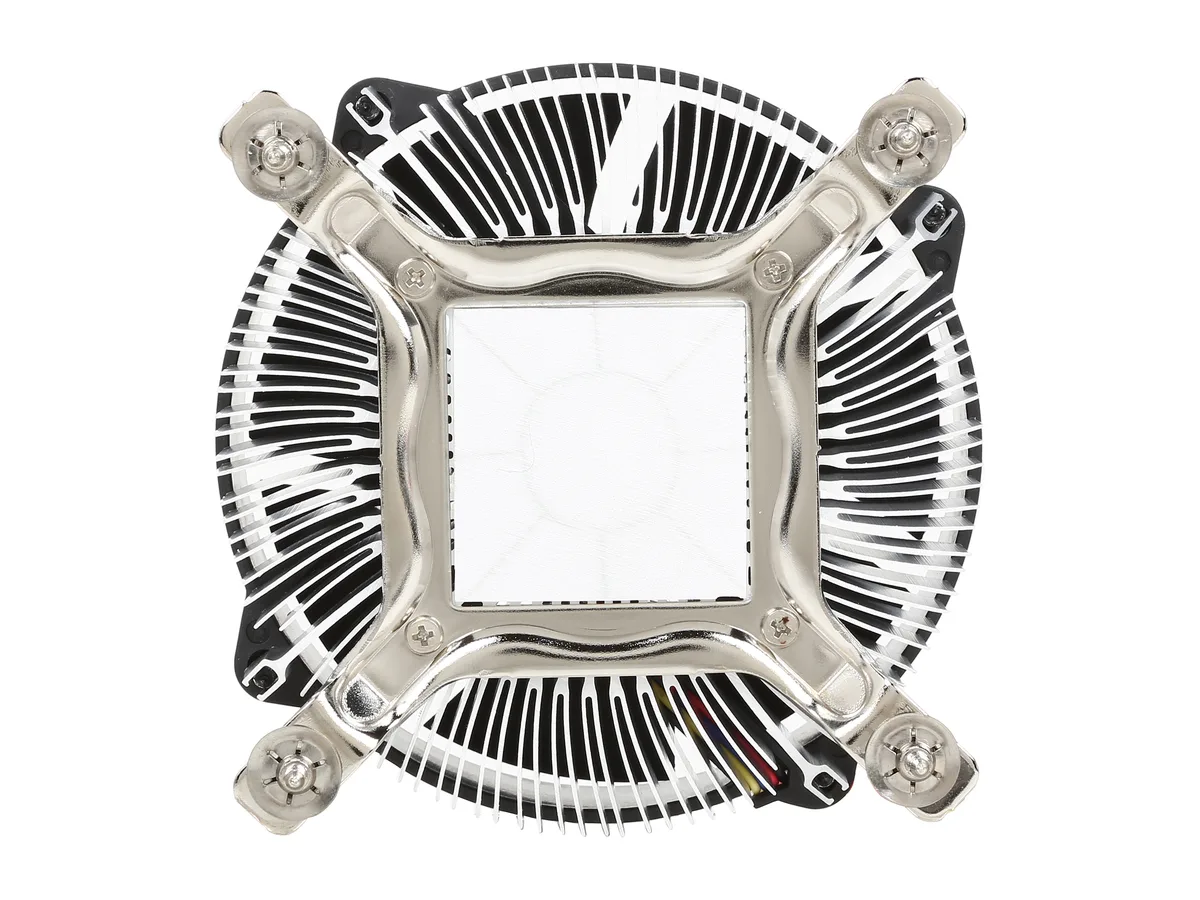

STARTECH FAN1156PWM 95mm CPU cooler LGA1155/1156

SKU CH-VTW4-68TG4 MPN FAN1156PWM

95mm PWM cooler with aluminium heatsink fits Intel LGA1155 and LGA1156 sockets, runs 1000-3000 RPM at under 33 dBA

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size95mm
  • CPU Socket CompatibilityIntel LGA 1155 / Intel LGA 1156
  • Bearing TypeEver Lubricate
  • RPM1000 ~ 3000 RPM

Model Socket LGA 1156/1155

  • PWM control adjusts fan speed from 1000 to 3000 RPM for thermal balance
  • 95 mm fan delivers up to 65.61 CFM airflow across aluminium heatsink
  • Noise stays below 33 dBA even at maximum rotational speed
  • Compact 55 mm height fits tight LGA1155 and LGA1156 builds
  • Ever Lubricate bearing and 350 mA draw ensure long-term reliability

Replacement cooler for LGA1155 and LGA1156

This 95 mm air cooler fits Intel LGA 1155 and LGA 1156 sockets. It replaces a noisy or failed stock cooler on older desktop systems. The unit ships new and includes the heatsink and fan assembly ready for installation.

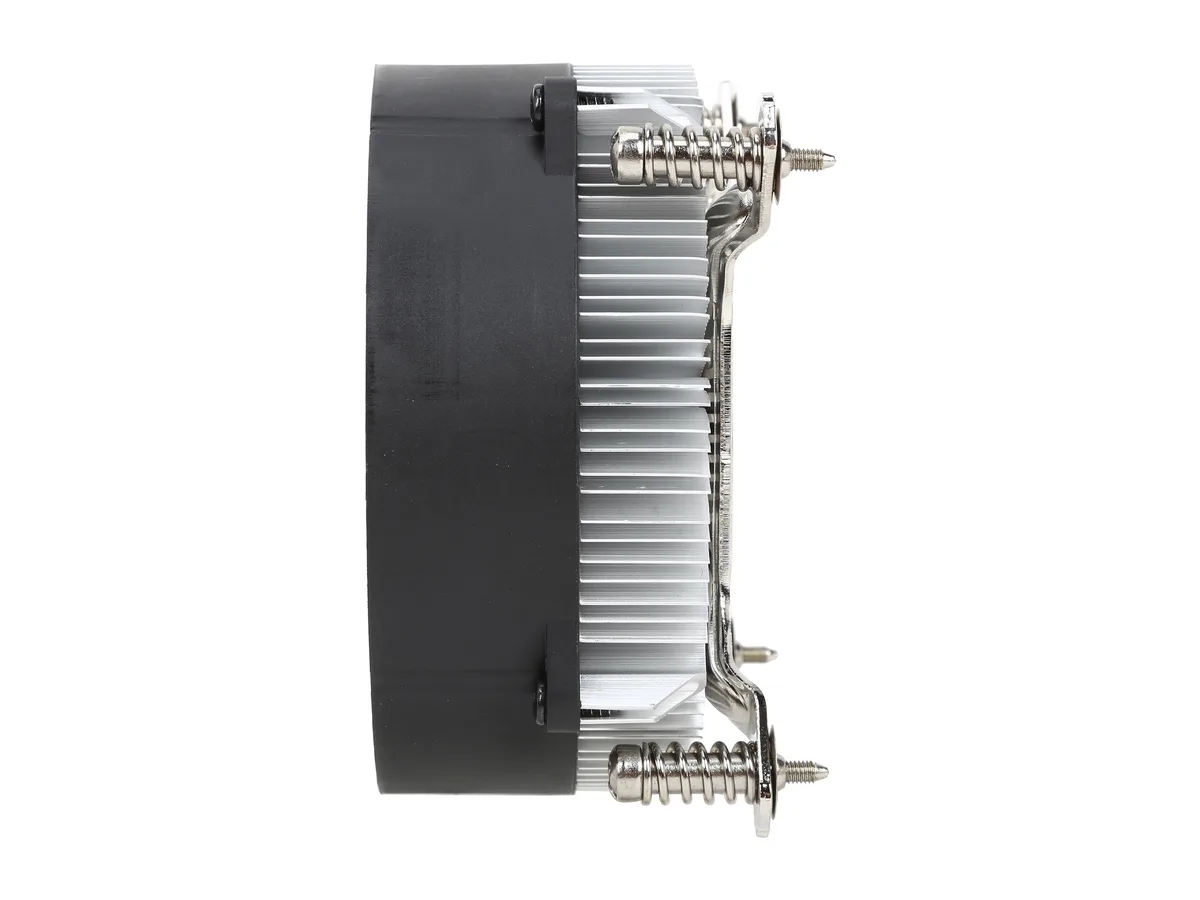

Fits low-profile builds with 55 mm clearance

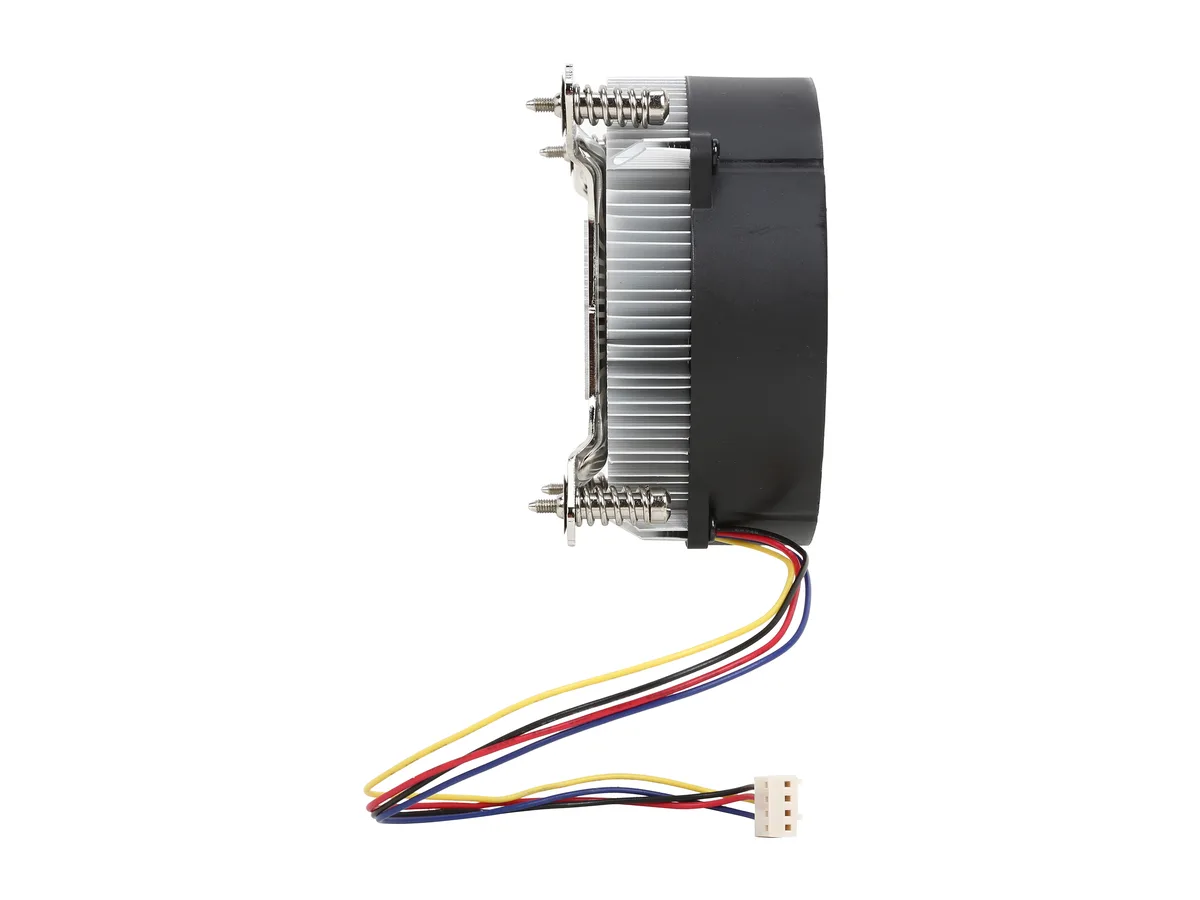

The cooler stands 55 mm tall, so it suits chassis with limited vertical space. A 4-pin PWM connector draws 12 V DC at 350 mA and allows the motherboard to vary fan speed between 1000 and 3000 RPM. No extra power cables or brackets are required beyond the standard socket mounting holes.

Pre-applied thermal interface simplifies fitting

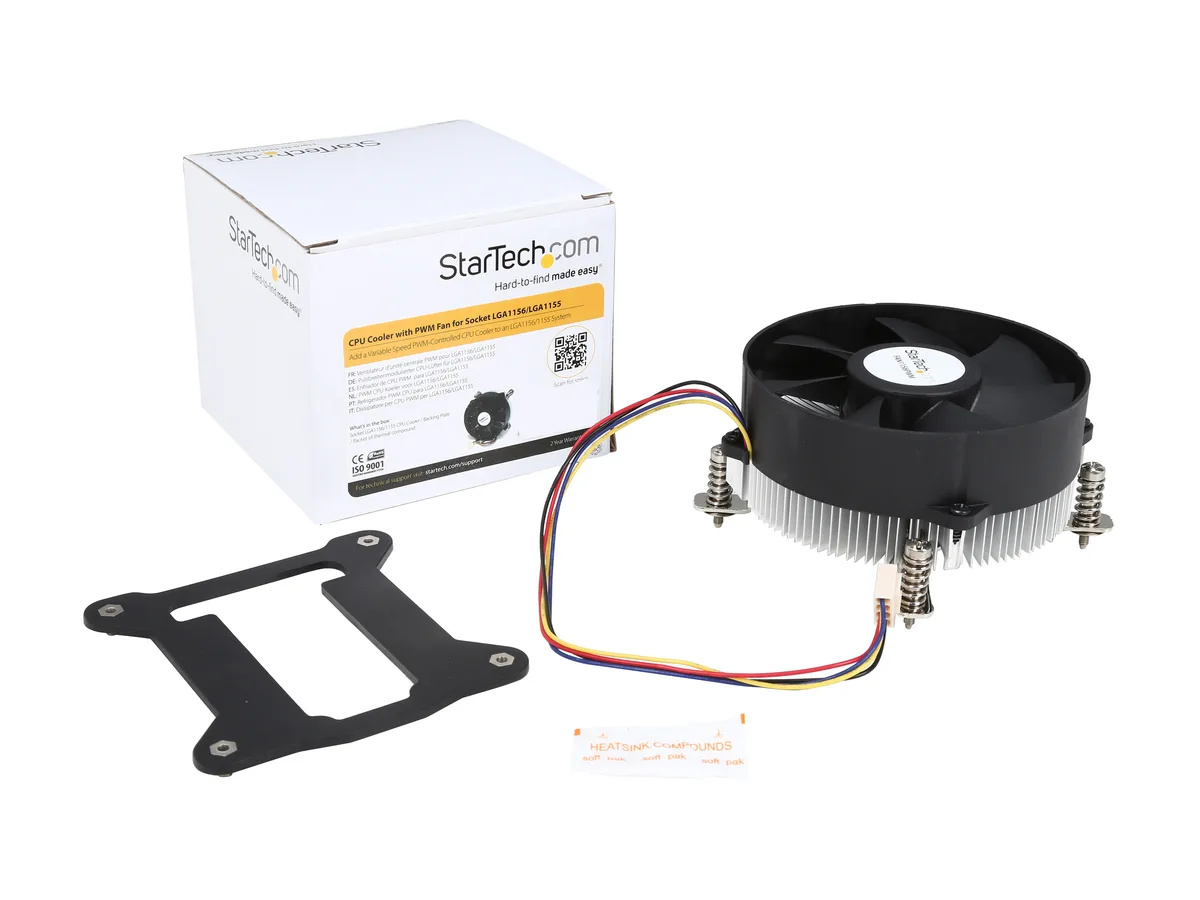

The package contains the cooler and thermal compound so the builder can mount it without sourcing paste separately. The Ever Lubricate bearing and aluminium heatsink keep noise below 33 dBA while moving up to 65.61 CFM of air.

Highlights

  • PWM control adjusts fan speed from 1000 to 3000 RPM for thermal balance
  • 95 mm fan delivers up to 65.61 CFM airflow across aluminium heatsink
  • Noise stays below 33 dBA even at maximum rotational speed
  • Compact 55 mm height fits tight LGA1155 and LGA1156 builds
  • Ever Lubricate bearing and 350 mA draw ensure long-term reliability

Specifications

BrandStarTech.com
ModelFAN1156PWM
ColorBlack
TypeFan & Heatsinks
Fan Size95mm
CPU Socket CompatibilityIntel LGA 1155 / Intel LGA 1156
Bearing TypeEver Lubricate
RPM1000 ~ 3000 RPM
Air Flow65.61 (max) CFM
Noise Level<33 dBA
Power Connector4 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height55 mm
Fan Dimensions95mm x 95mm x 25mm
Heatsink Dimensions95mm x 95mm x 20mm
Weight272 g
FeaturesInput Current: 350 mA
Input Voltage: 12 DC
Connector Type(s): 1 - Molex Fan (4 pin; PWM) Female
Replace a noisy or failed CPU cooler for an LGA1156/1155 system.
Package Contents79958Q
Shipping weight0.34 kg
Package size104 × 102 × 86 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What is the maximum airflow the 95 mm fan can deliver?

The fan provides up to 65.61 CFM of airflow at its highest speed.

How loud does the cooler get under continuous load?

Noise stays below 33 dBA even when the fan spins at 3000 RPM.

Which motherboard power header does the 4-pin PWM connector plug into?

It connects to a standard 4-pin CPU fan header on an LGA 1155 or LGA 1156 board.
