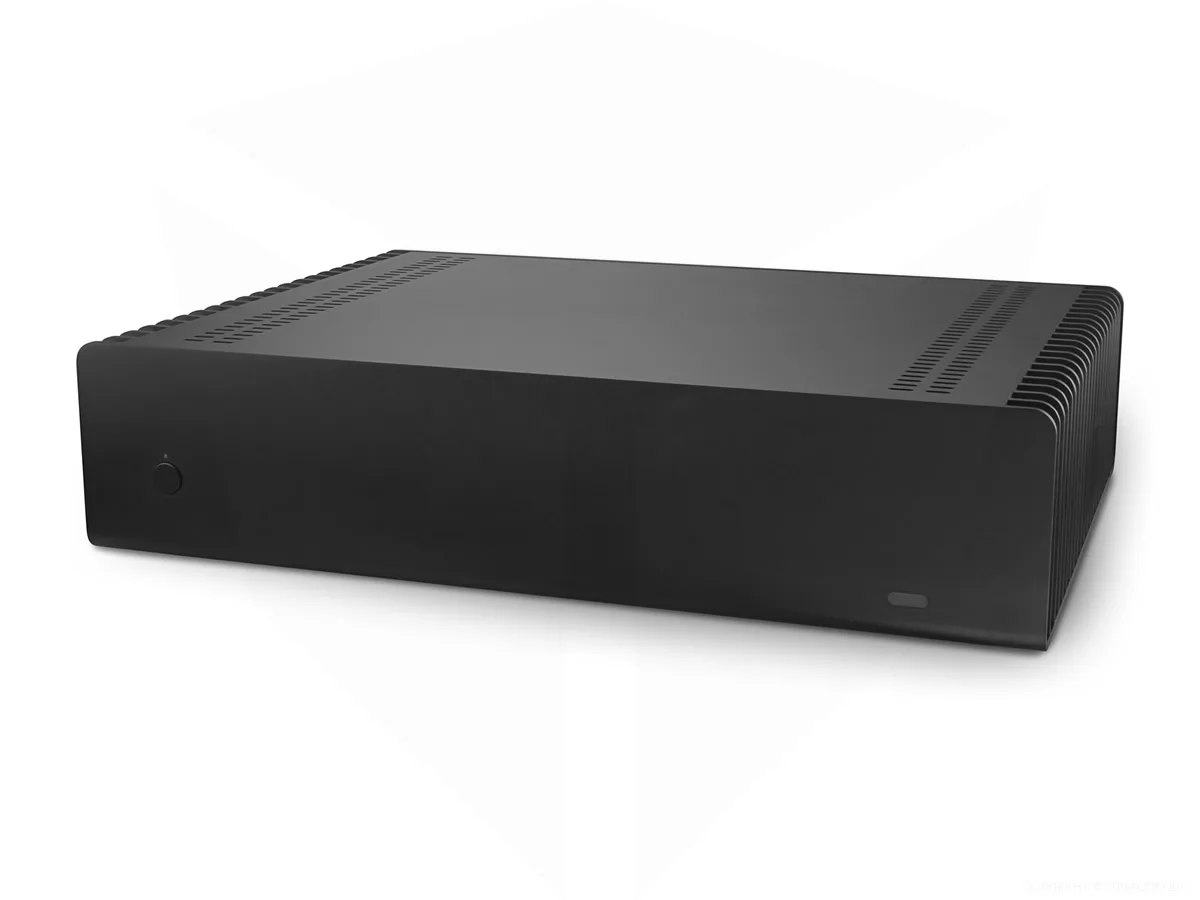

Black aluminium fanless chassis, 435 mm wide, sandblasted finish, heatpipe cooling visible

Streacom

Streacom FC10B-ALPHA Fanless Chassis Black

SKU CH-BSN0-CQW5R

All-aluminium fanless ATX HTPC case supporting Mini-ITX, Micro-ATX and full ATX boards with up to five 3.5" drives, four 2.5" drives and two full-height expansion slots

  • TypeATX Media Center / HTPC Case
  • ColorBlack
  • Case MaterialBlack
  • Power SupplyNo
  • Motherboard CompatibilityMini ITX, Micro ATX and FULL Size ATX
  • Internal 3.5" Drive BaysMaximum 5 x 3.5?, Depending on Configuration
  • Fanless design enables silent operation with 6063 aluminium construction
  • Supports Mini ITX, Micro ATX and full-size ATX motherboards
  • Up to five 3.5 inch and four 2.5 inch drive bays configurable
  • Two full-height expansion slots at 300 mm and 190 mm lengths
  • Dual USB 3.0 front ports using 19/20 pin headers

Fanless aluminium chassis

The Streacom FC10B-ALPHA is an all-aluminium fanless chassis designed for silent media-centre or HTPC builds. Premium grade 6063 alloy with 4 mm thick extruded panels forms the structure and doubles as a heatsink. It accepts Mini ITX, Micro ATX and full-size ATX motherboards. The black sandblasted finish suits living-room placement.

Heatpipe cooling and flexible layout

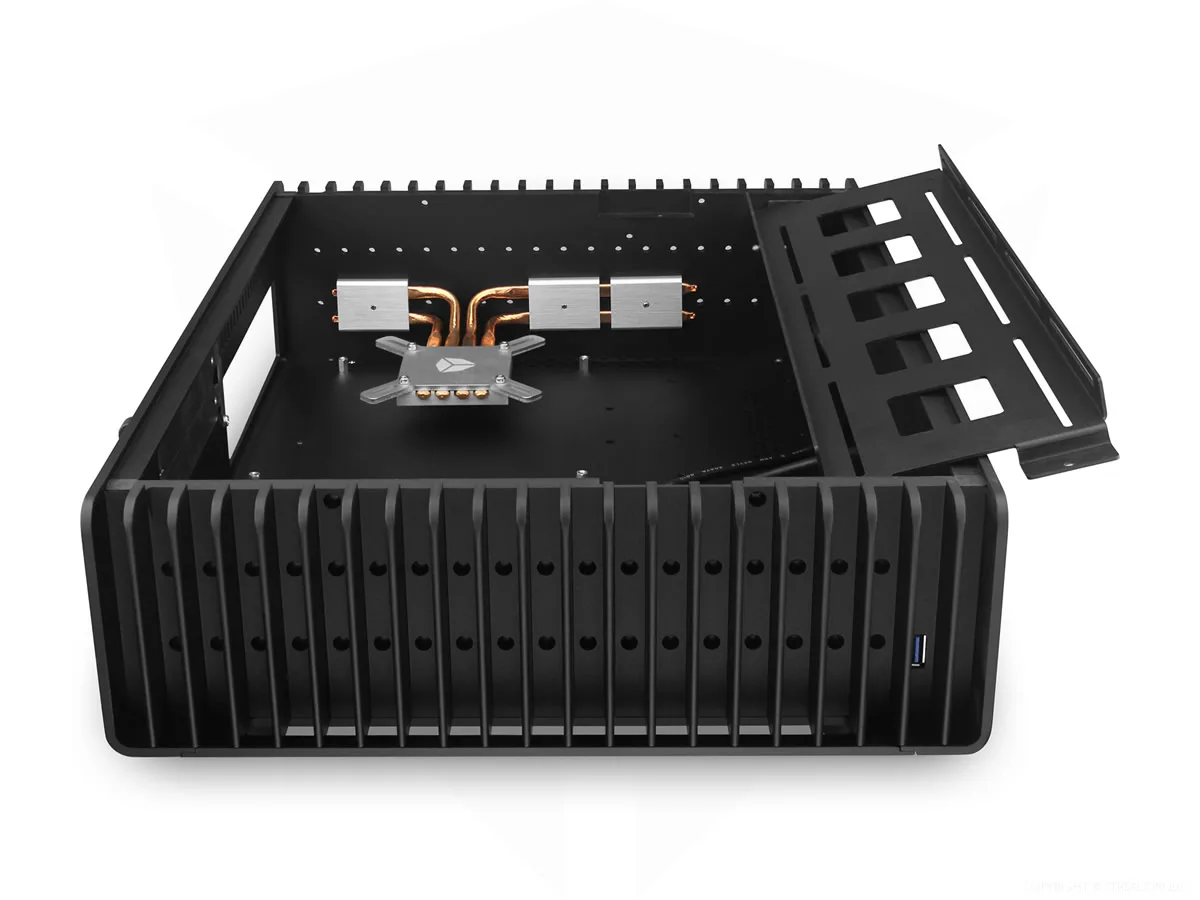

Heatpipe Direct Touch cooling transfers CPU heat to the case walls without any moving parts. A pivoting drive cage simplifies component installation inside the enclosure. Two full-height expansion slots are provided, the upper allowing 300 mm cards and the lower 190 mm cards, though a flexible riser is required. Front I/O includes two USB 3.0 ports on left and right sides using a 19/20 pin header.

Storage capacity and expansion limits

Up to five 3.5 inch drives can be fitted depending on the internal configuration chosen. Alternatively the cage supports a maximum of four 2.5 inch drives. No power supply, optical drive eject button, front audio, eSATA, card reader, remote module or front display are included. Builders needing more than two expansion slots or integrated front audio should consider other enclosures.

Highlights

  • Fanless design enables silent operation with 6063 aluminium construction
  • Supports Mini ITX, Micro ATX and full-size ATX motherboards
  • Up to five 3.5 inch and four 2.5 inch drive bays configurable
  • Two full-height expansion slots at 300 mm and 190 mm lengths
  • Dual USB 3.0 front ports using 19/20 pin headers

Specifications

BrandStreacom
SeriesFanless
ModelST-FC10B-ALPHA
TypeATX Media Center / HTPC Case
ColorBlack
Case MaterialBlack
Power SupplyNo
Motherboard CompatibilityMini ITX, Micro ATX and FULL Size ATX
Internal 3.5" Drive BaysMaximum 5 x 3.5?, Depending on Configuration
Internal 2.5" Drive BaysMAximum 4 x 2.5?, Depending on Configuration
Expansion Slots2 x Full Height Slots (300mm Upper, 190mm Lower Slot, Flexible Riser Required)
Front USB Ports2 x USB3.0, Left & Right Side, 19/20 PIN
Front FireWire PortsNo
Front Audio PortsNo
Front eSATA PortsNo
Front Card ReaderNo
Remote Control ModuleNo
Front DisplayNo
Side Air ductNo
FeaturesPremium Grade (6063) All Aluminium, 4mm Thick Extruded Panels, Fanless Chassis
Height39.3 Inch
Width171.17 Inch
Depth125.19 Inch
Weight11.9 Inch

Questions about this item

How many 3.5-inch drives can the pivoting cage hold at once?

The pivoting cage supports up to five 3.5-inch drives depending on the internal configuration chosen.

Does the all-aluminium chassis stay cool and silent during continuous operation?

The fanless design uses Heatpipe Direct Touch cooling across 4mm thick 6063 aluminium panels to dissipate heat without any moving parts.

Which motherboard form factors fit inside the 435mm wide enclosure?

Mini ITX, Micro ATX and full-size ATX boards are all compatible with the chassis layout.
