Compact silver aluminium Mini-ITX fanless chassis with side vents and front USB 3.0 ports

Streacom

Streacom ST-FC8B-ALPHA-OPT fanless PC case

SKU CH-D1HB-N1SY5

A Mini-ITX aluminium chassis with integrated heatsink panels that cool components without fans, supporting up to two 3.5-inch or five 2.5-inch drives and one low-profile expansion slot

  • TypeMini-ITX
  • Case MaterialAluminum
  • Power SupplyNo
  • Motherboard CompatibilityMini ITX
  • Internal 3.5" Drive BaysMaximum 2 x 3.5?, Depending on Configuration
  • Internal 2.5" Drive BaysMaximum 5 x 2.5? , Depending on Configuration
  • Fanless design with 6063 aluminium extrusion enables silent operation
  • 4 mm thick single-piece top panel adds structural rigidity
  • Low-profile expansion slot supports one add-in card
  • Two USB 3.0 ports on the front panel provide fast connectivity

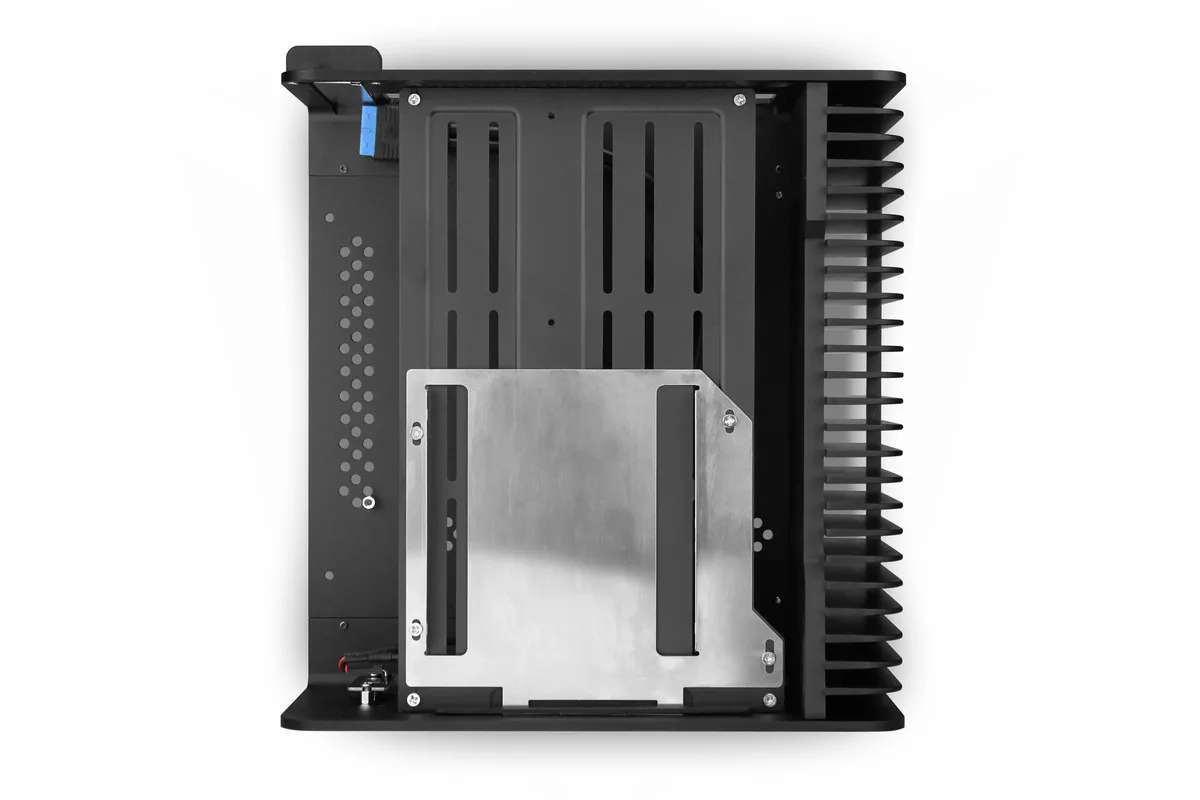

  • Drive tray fits up to two 3.5" or five 2.5" drives

Fanless Mini-ITX aluminium chassis

The Streacom ST-FC8B-ALPHA-OPT is a fanless Mini-ITX chassis built from premium grade 6063 aluminium with 4mm thick extruded panels. It targets builders who need a completely silent system without moving parts. The case relies on its external heatsink fins and stealth side vents for passive convection cooling. It is not for buyers who want active airflow or liquid cooling support.

Passive thermal capacity under sustained load

The redesigned heatsink is sleeker, easier to clean and balanced for future heatpipe configurations. A single-piece top panel extrusion removes venting holes, reducing internal dust while improving convection airflow over long sessions. The chassis handles continuous thermal load through its aluminium mass and heatpipe mounts rather than short-burst fan curves. It is not for workloads that exceed the passive dissipation limits of the case material.

Thermals, noise and power draw in normal use

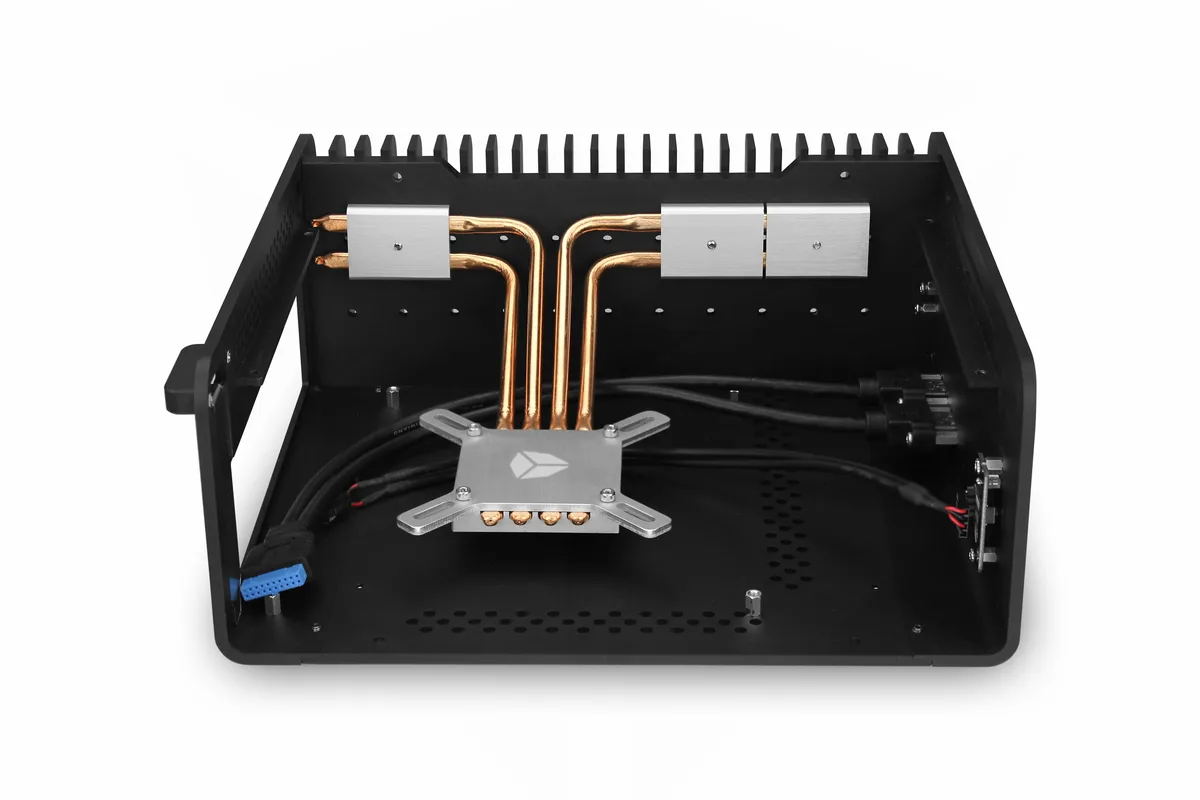

With no fans installed, the system runs at zero decibels during typical desktop use. The aluminium body acts as a large heatsink, drawing heat from the CPU through upgraded heatpipes to the external fins. Power draw is determined entirely by the chosen components, as no power supply is included. It is not for builds that require high-wattage components without additional thermal planning.

Highlights

  • Fanless design with 6063 aluminium extrusion enables silent operation
  • 4 mm thick single-piece top panel adds structural rigidity
  • Low-profile expansion slot supports one add-in card
  • Two USB 3.0 ports on the front panel provide fast connectivity
  • Drive tray fits up to two 3.5" or five 2.5" drives

Specifications

BrandStreacom
SeriesFanless
ModelST-FC8B-ALPHA-OPT
TypeMini-ITX
Case MaterialAluminum
Power SupplyNo
Motherboard CompatibilityMini ITX
Internal 3.5" Drive BaysMaximum 2 x 3.5?, Depending on Configuration
Internal 2.5" Drive BaysMaximum 5 x 2.5? , Depending on Configuration
Expansion Slots1 x Low Profile Expansion Card
Front USB Ports2 x USB3.0, 19/20 PIN
Front FireWire PortsNo
Front Audio PortsNo
Front eSATA PortsNo
Front Card ReaderNo
Remote Control ModuleNo
Front DisplayNo
FeaturesPremium Grade (6063) All Aluminium, 4mm Thick Extruded Panels, Fanless chassis
Height3.93 Inch
Width9.431 Inch
Depth9.827 Inch
Weight5.95 Lbs

Questions about this item

How does the fanless aluminium chassis handle heat when the system runs continuously?

The 4 mm thick 6063 aluminium panels act as a large heatsink; a redesigned top extrusion and stealth side vent improve convection airflow so heat dissipates silently without fans.

Which power supply and motherboard must I already have to build in this case?

You need a Mini-ITX motherboard and a separate power supply — the chassis includes neither, and only low-profile expansion cards fit the single slot.

Will my existing 3.5-inch hard drives and low-profile add-in card fit alongside the new motherboard?

The removable tray accepts up to two 3.5-inch drives or five 2.5-inch drives depending on configuration, and the single expansion slot is low-profile only.
