Black all-in-one liquid cooler with a square 3.4 inch LCD on the pump block, three 120 mm fans and a 360 mm radiator

Sudokoo

Sudokoo R-PTS360-BKDSMP-GAS-1 liquid cooler 360 3.4" LCD 320W

SKU CH-DCT3-B5EGF MPN R-PTS360-BKDSMP-GAS-1

A 360 mm liquid CPU cooler with a customisable 3.4 inch 480×480 LCD, PWM pump up to 3600 RPM, three 30 mm thick 120 mm fans delivering 91.1 CFM.

  • Typeliquid cooler
  • Block CompatibilityCpu
  • Block Compatibility - AMDAM5, AM4
  • Block Compatibility - IntelLGA1851/1700/1200/1151/1150/1155
  • Block Dim.402x123x27 mm
  • Display3.4 inch 480*480 TFT LCD

Option

  • Sudokoo Proteus 360 AIO LCD Liquid CPU Cooler, Customizable Segment 3.4" LCD Screen, PWM Pump, TDP 320W, 30mm Thick High Performance Fans, Intel LGA 1
  • ASUS TUF GAMING X870E-PLUS WIFI7 AM5 + Sudokoo Proteus 360 AIO LCD Liquid CPU Cooler, Customizable Segment 3.4" LCD Screen, PWM Pump, TDP 320W, 30mm T

Struck-through versions exist but are not stocked here.

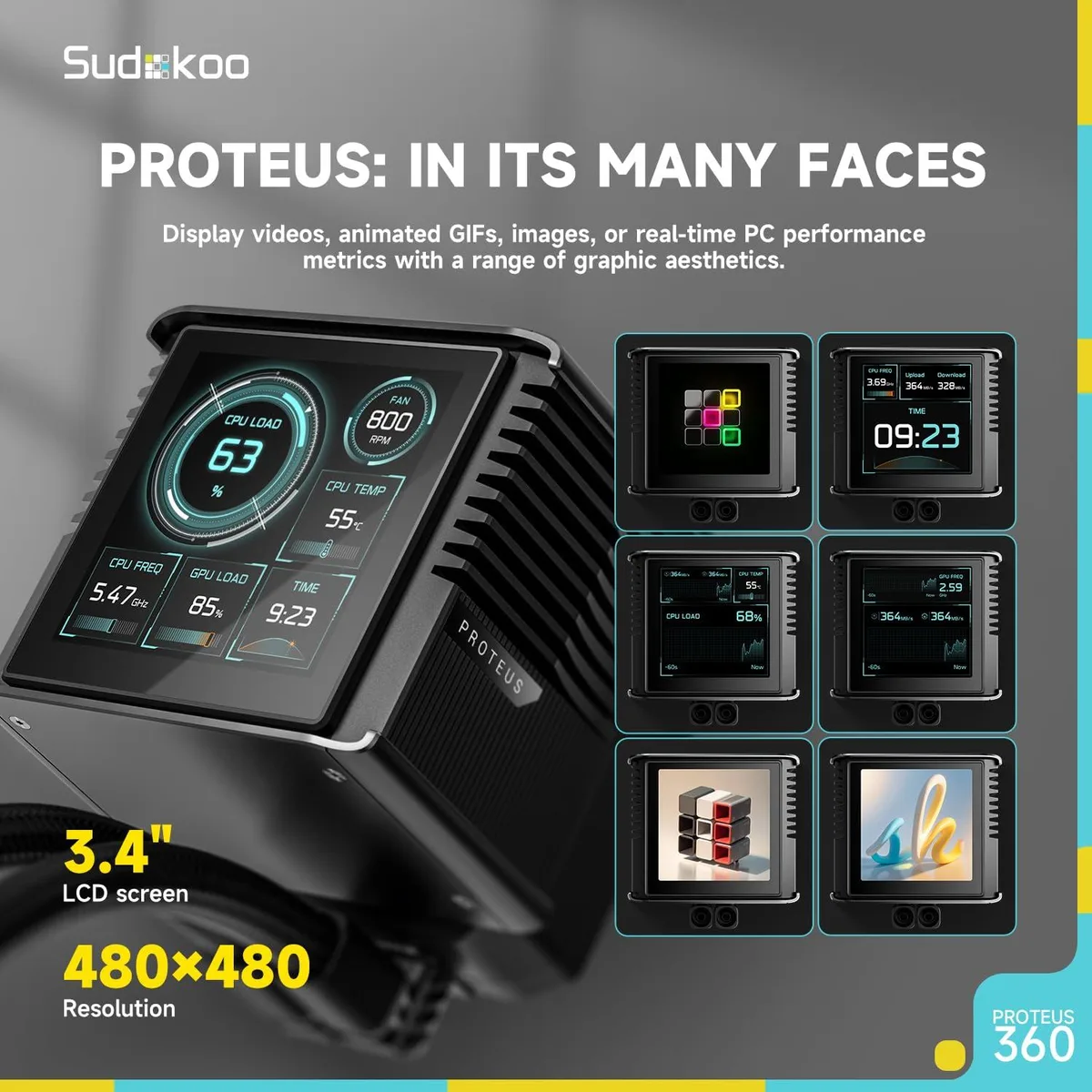

  • Customizable 3.4" 480×480 LCD shows real-time stats and media
  • PWM pump runs 2500–3600 RPM at 33 dB(A) for 320 W TDP

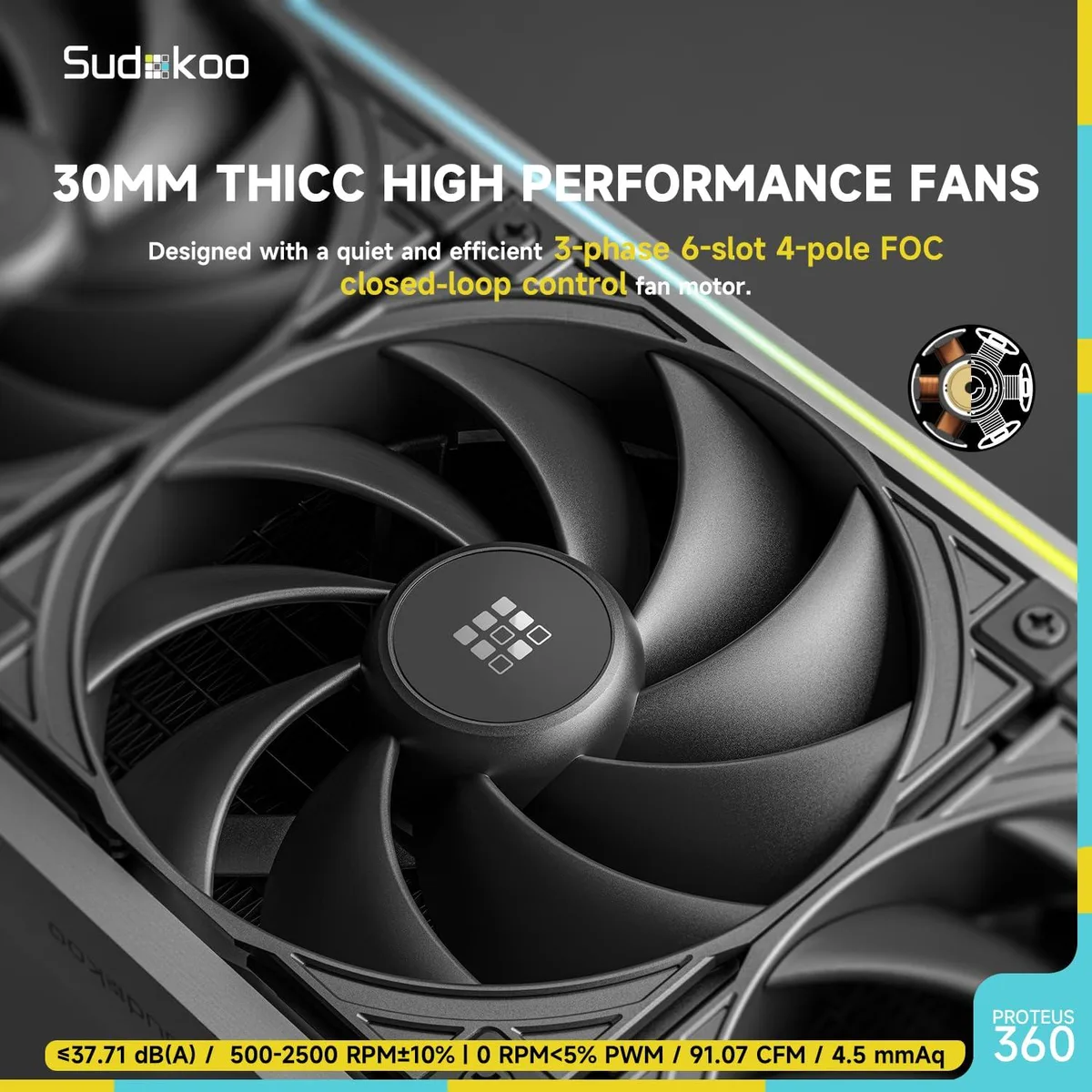

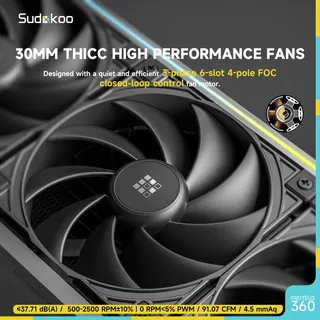

  • Three 30 mm thick 120 mm fans deliver 91.1 CFM at 37.7 dB(A)
  • Supports Intel LGA1851/1700/1200/115X and AMD AM5/AM4 sockets
  • MasterCraft software controls fan, pump and addressable RGB from one hub

Purpose-built liquid cooler

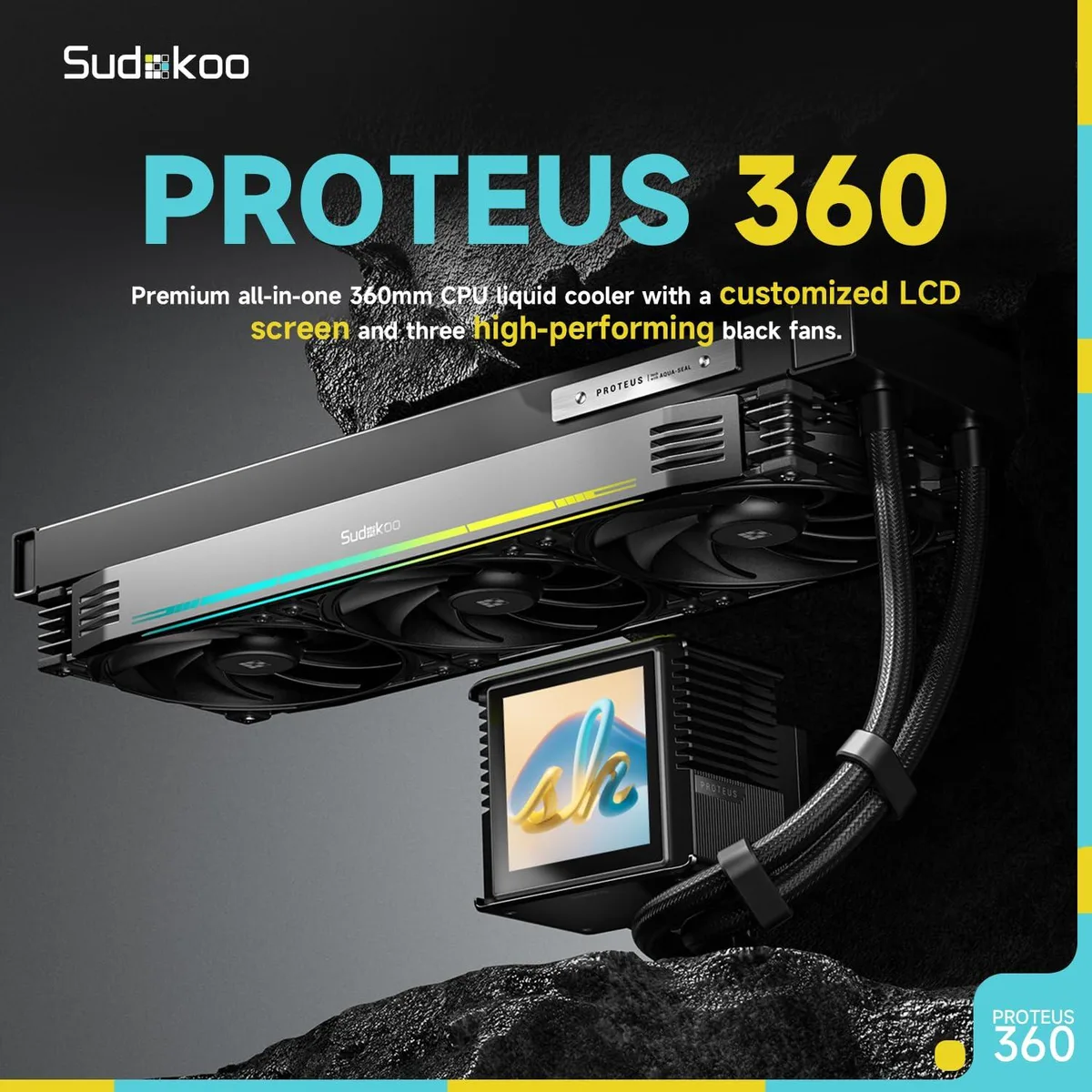

The Sudokoo Proteus 360 is an all-in-one CPU cooler rated for 320 W TDP. It fits Intel LGA 1851, 1700, 1200, 1151, 1150 and 1155 sockets plus AMD AM5 and AM4 platforms. A 3.4 inch 480 x 480 TFT LCD sits on the pump block for system monitoring or custom graphics. Three 120 mm fans mount on a 402 x 123 x 27 mm aluminum radiator.

LCD interface limits

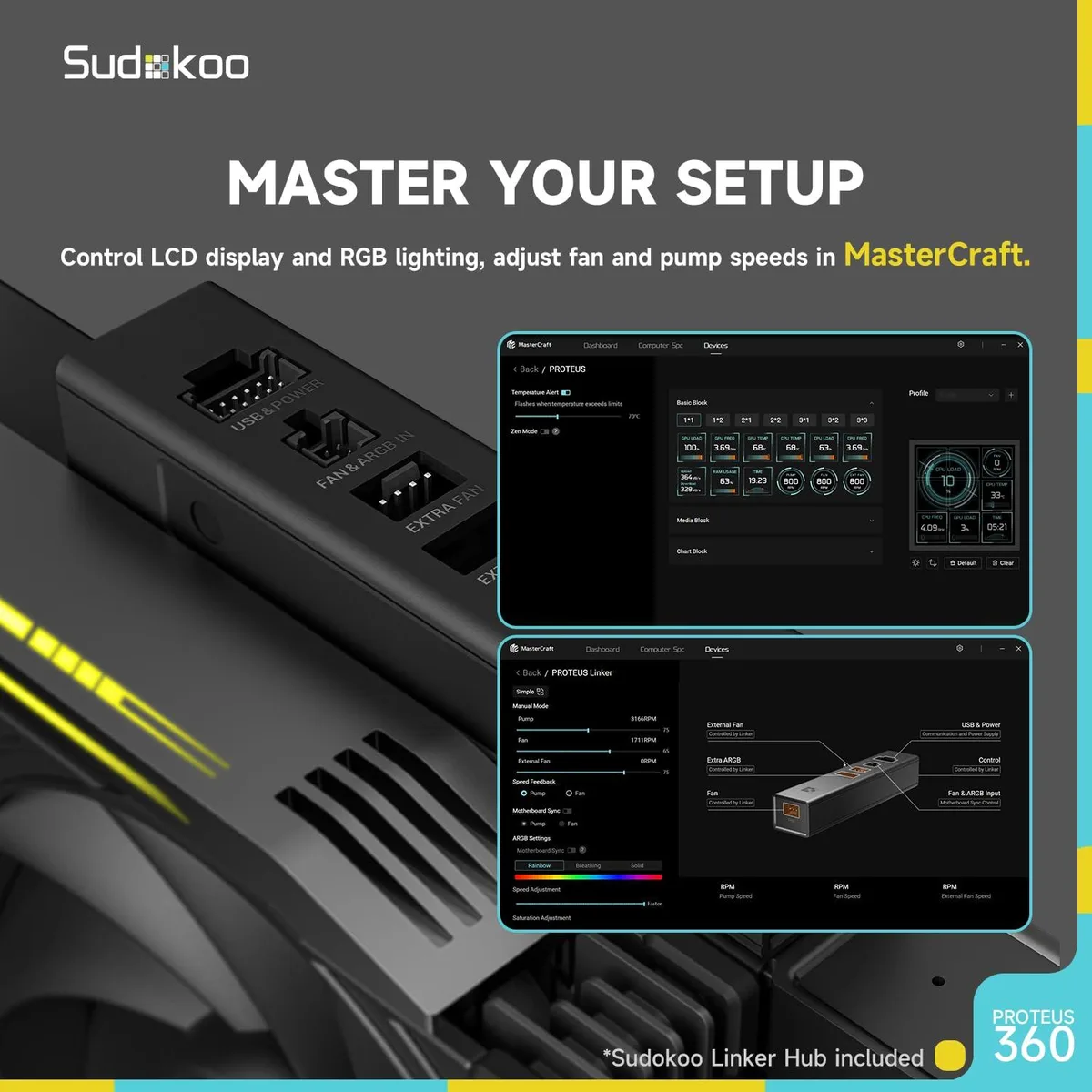

The screen connects through the included Sudokoo Linker Hub and is driven by the MasterCraft software suite. Content is limited to what the software can push: static images, animated GIFs, video clips and real-time sensor read-outs. No independent video input or standalone operation is provided. The 480 x 480 pixel grid fixes the maximum detail level for any custom artwork.

320 W thermal ceiling

The pump runs at 2,500 to 3,600 RPM and the fans at up to 2,500 RPM, producing 91.1 CFM airflow at 37.7 dB(A). This combination sets the practical heat-dissipation limit at 320 W. CPUs that sustain higher loads will exceed the cooler's capacity regardless of fan curve adjustments.

Highlights

  • Customizable 3.4" 480×480 LCD shows real-time stats and media
  • PWM pump runs 2500–3600 RPM at 33 dB(A) for 320 W TDP
  • Three 30 mm thick 120 mm fans deliver 91.1 CFM at 37.7 dB(A)
  • Supports Intel LGA1851/1700/1200/115X and AMD AM5/AM4 sockets
  • MasterCraft software controls fan, pump and addressable RGB from one hub

Specifications

BrandSudokoo
Part NumberPROTEUS 360 Amazon
Typeliquid cooler
Block CompatibilityCpu
Block Compatibility - AMDAM5, AM4
Block Compatibility - IntelLGA1851/1700/1200/1151/1150/1155
Block Dim.402x123x27 mm
Display3.4 inch 480*480 TFT LCD
Pump Speed2500-3600 RPM+-10%
Pump Dim.102x95x93 mm
Pump BearingAluminum
Pump Noise33 dB(A)
Radiator Size402x123x27 mm(LxWxH)
Radiator MaterialAluminum
Fan Size3 Fan Slots (120mm)
Fan Dim.120 x 120 x 30
Bearing TypeHybrid Hydraulic Bearing
Fan RPM2500 rpm
Fan Air Flow91.1 CFM
Fan Noise37.7 decibels
Fan Connector4-pin PWM
ColorBlack
LED ColorARGB
Pressure4.50 mmAq
Tube Dim.410 mm
Coolant CapacityIntel LGA1851/1700/1200/1151/1150/1155 AMD AM5/AM4
Package Contentsliquid cooler
Shipping weight2.40 kg
Package size456 × 222 × 163 mm

Questions about this item

Should I pick the 360 mm radiator or a smaller size for a 320 W TDP CPU?

The 360 mm radiator with three 30 mm thick fans is built for the 320 W TDP rating. A smaller radiator would reduce surface area and airflow, making it harder to keep that heat load under control.

What does the 320 W TDP figure mean once the cooler is installed in my PC?

It means the pump and three 120 mm fans running up to 2500 rpm can continuously move 91.1 CFM across the 402×123×27 mm aluminum radiator to dissipate up to 320 W of CPU heat.

Which fan and pump connectors does the cooler use, and what do they limit in practice?

PWM headers control both the 500–2500 rpm fans and the 2500–3600 rpm pump, so speed curves are set in BIOS or software; the 4.50 mmAq static pressure caps airflow through dense radiator fins.
