Black single-tower CPU cooler with seven heatpipes and a 120 mm PWM fan

Sudokoo

Sudokoo SK700 US CPU cooler AM5 7 heatpipes 120mm PWM fan

SKU CH-TDRK-NNNFT MPN SK700 US

Single-tower air cooler with seven 6 mm heatpipes, a 120 mm PWM fan reaching 2200 RPM and 66.29 CFM, rated for 220 W TDP on AMD AM5 sockets

  • ColorBlack
  • TypeAir
  • Fan Size120x120x25 mm(LxWxH)
  • CPU Socket CompatibilityAMD Socket AM5
  • Bearing TypeFluid Dynamic bearing
  • RPM2200 rpm

Color BLACK

Model SK700

  • AM5-exclusive bracket prevents CPU bending under cooler weight

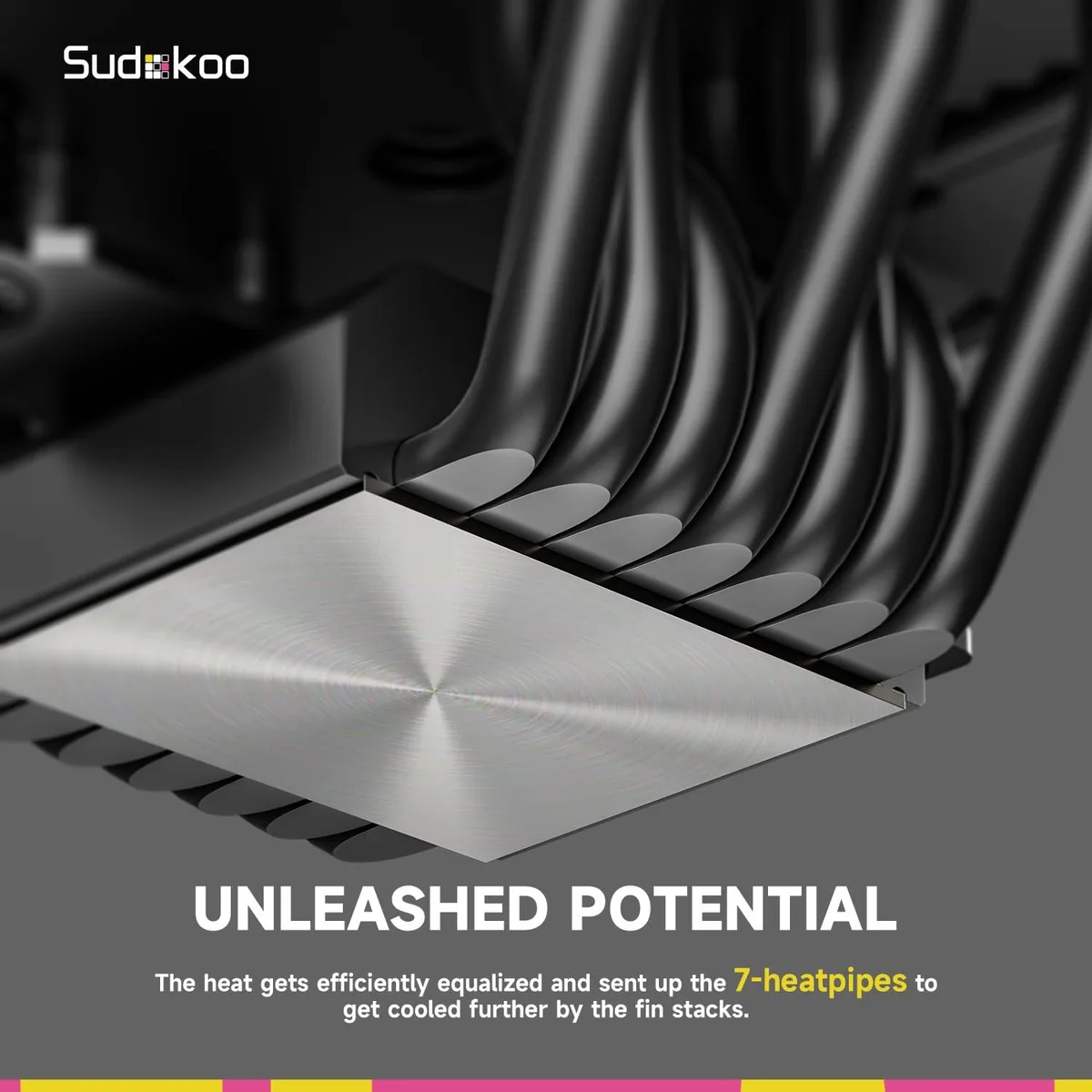

  • Seven 6 mm heatpipes deliver 220 W thermal capacity

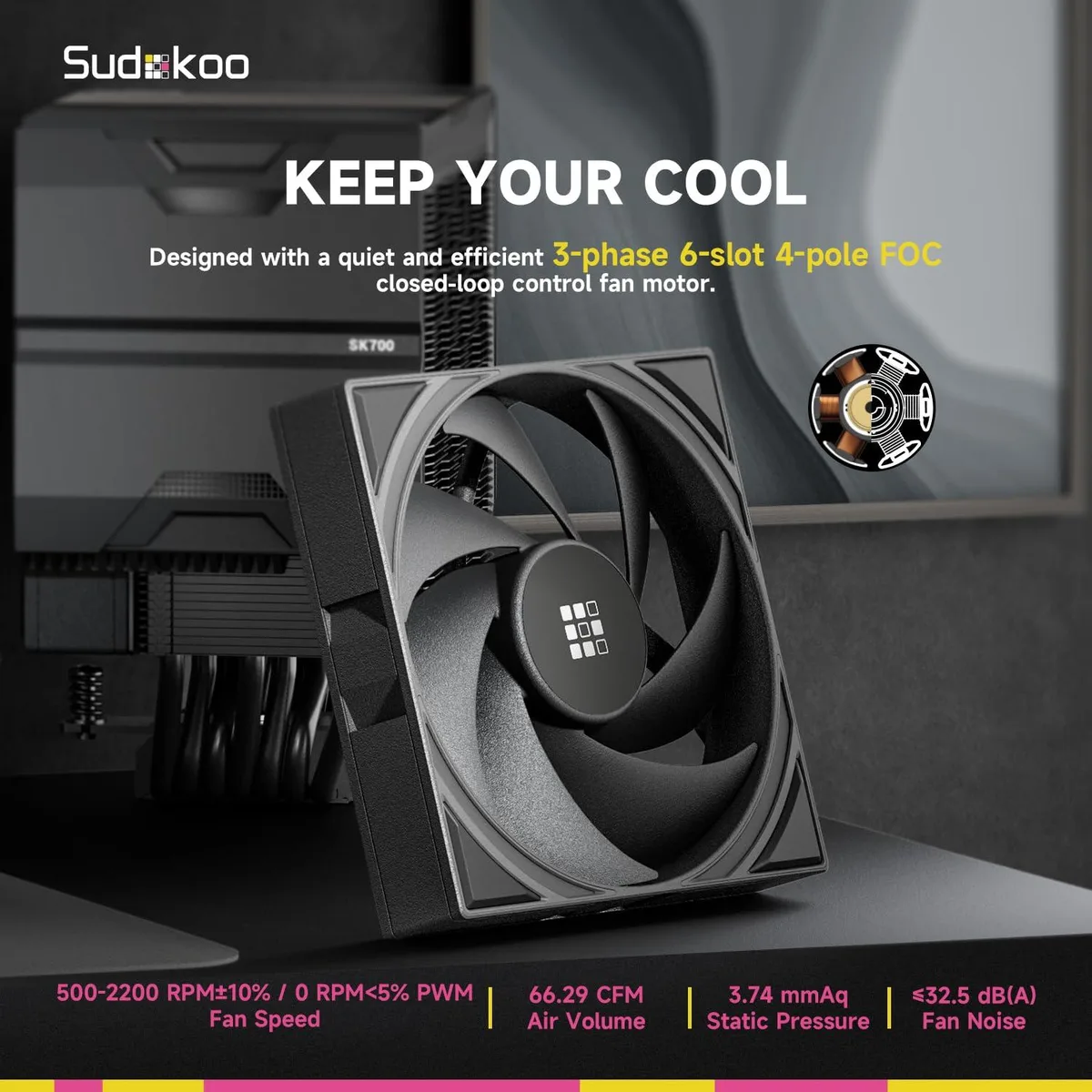

  • 120 mm FDB PWM fan runs 500–2200 RPM at 32.5 dB
  • 29 CFM airflow with 3.74 mmAq pressure for dense fins

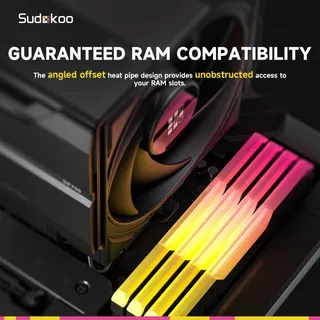

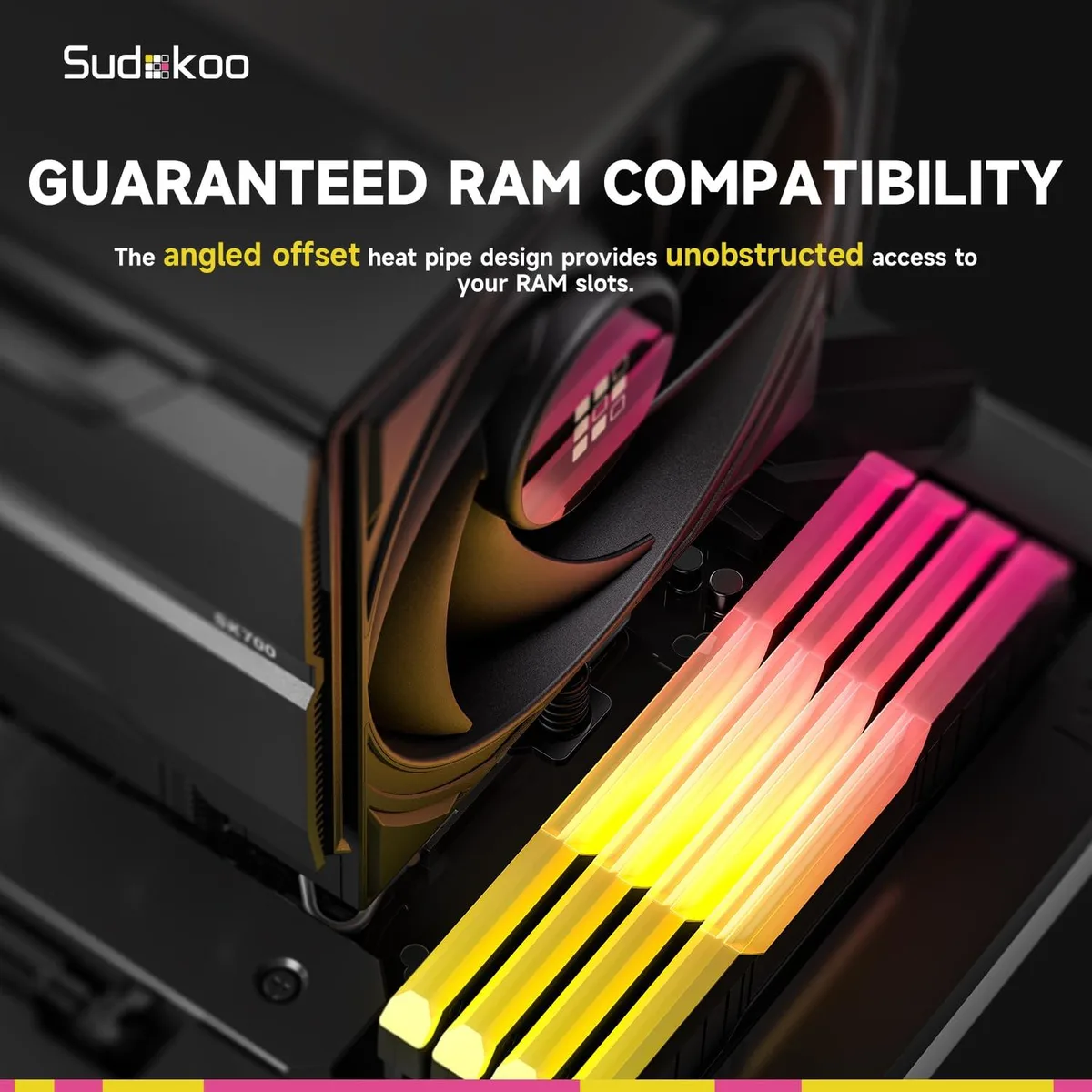

  • Single-tower layout (124×76×151 mm) keeps RAM slots clear

AM5-exclusive air cooler

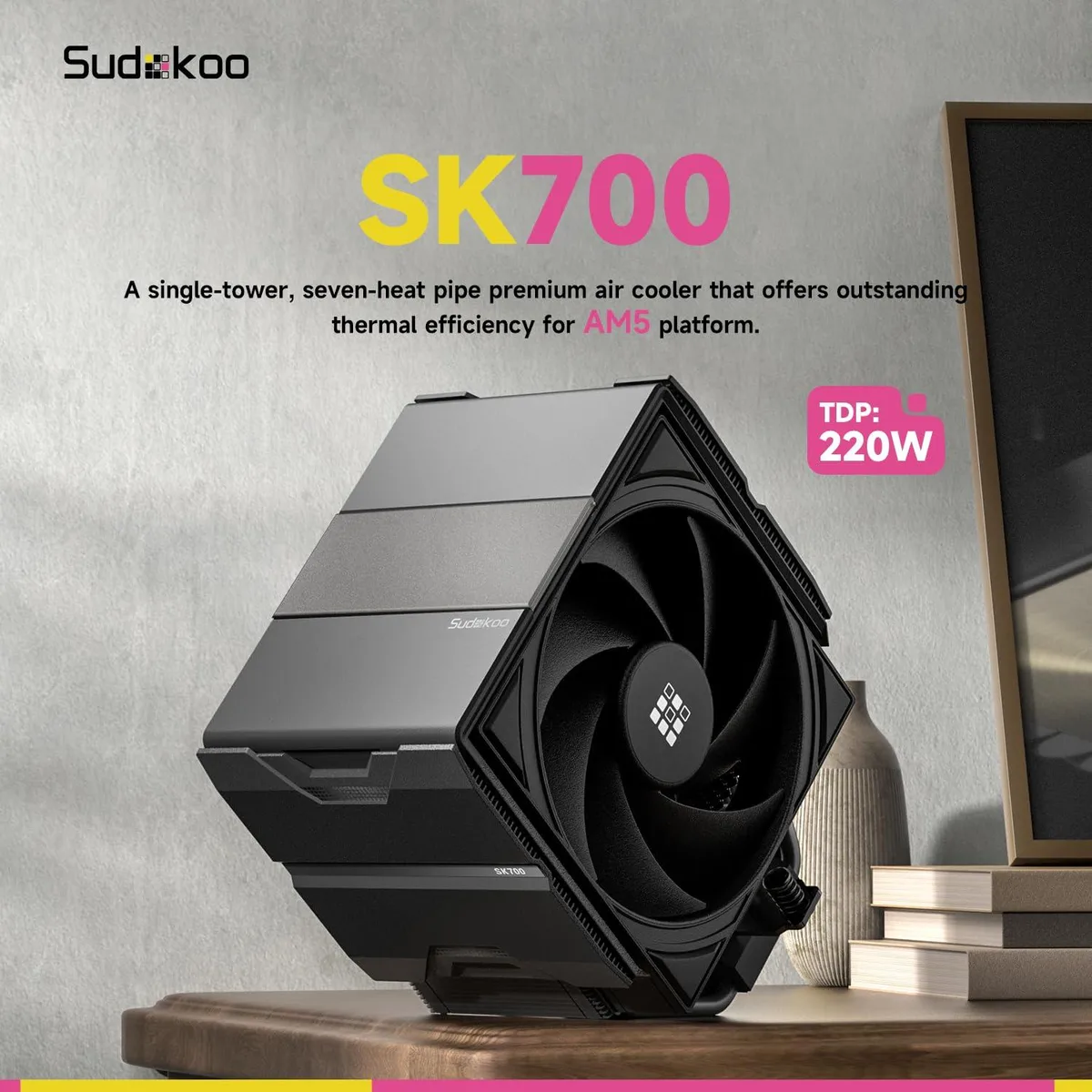

The Sudokoo SK700 US is a single-tower air cooler built only for AMD Socket AM5. It uses seven 6 mm heatpipes and a 120 mm fluid-dynamic-bearing PWM fan to deliver a thermal design power rating of 220 W. The package contains the cooler and an anti-bend bracket that supports the heatsink weight when the motherboard lies horizontally.

Socket AM5 only — not for other platforms

Compatibility is limited to AMD AM5; the cooler will not mount on Intel sockets or older AMD platforms. The manufacturer also notes mechanical interference with the MSI MAG B850M Mortar and MAG B850M Mortar WiFi motherboards, so builders using those boards must choose a different cooler.

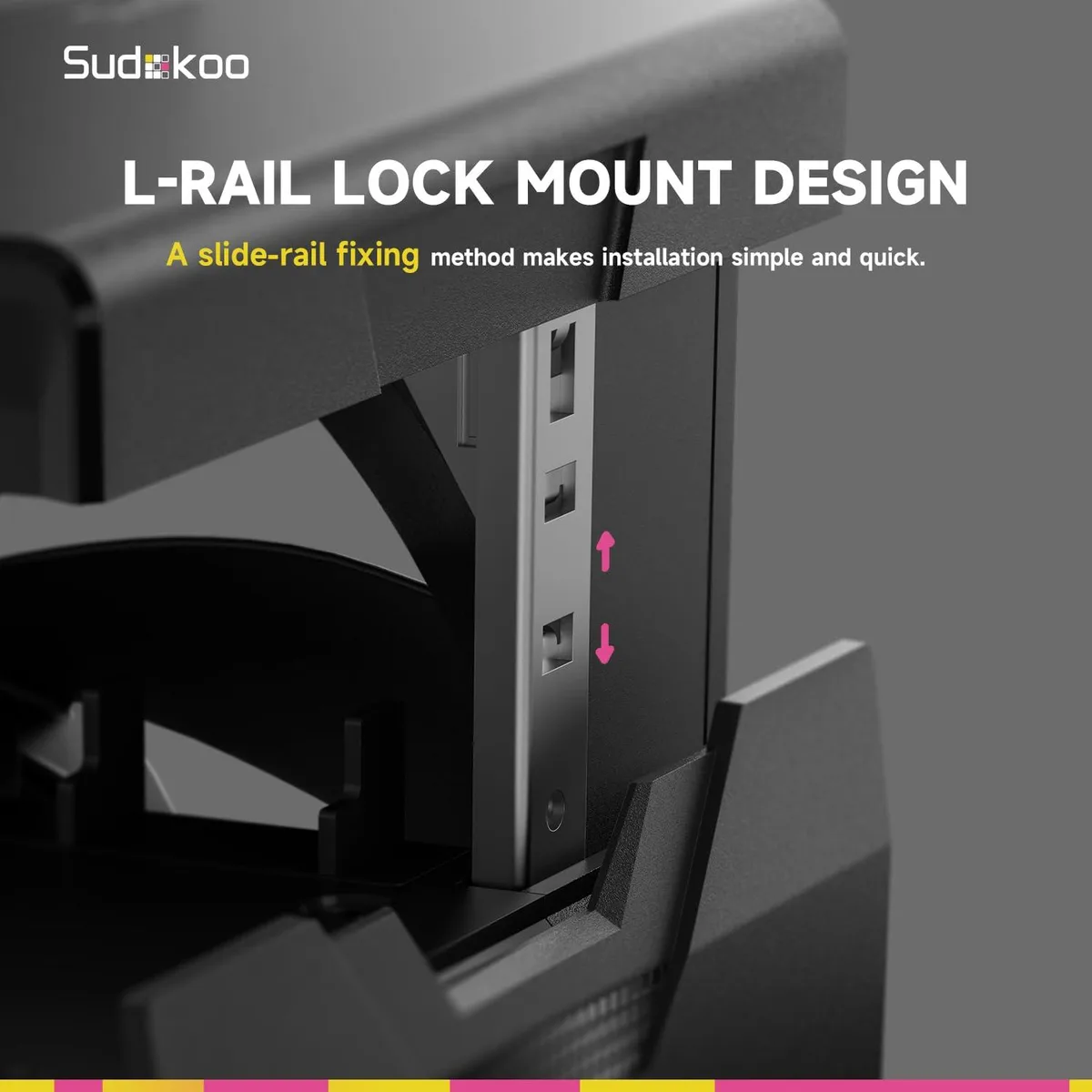

Anti-bend bracket and L-Rail lock mount

The bundled anti-bend bracket distributes the 1.32 kg heatsink load across the CPU to prevent substrate bending during horizontal installation. The L-Rail lock mounting system secures the cooler without backplate access, simplifying the build while maintaining even pressure on the AM5 socket.

Highlights

  • AM5-exclusive bracket prevents CPU bending under cooler weight
  • Seven 6 mm heatpipes deliver 220 W thermal capacity
  • 120 mm FDB PWM fan runs 500–2200 RPM at 32.5 dB
  • 29 CFM airflow with 3.74 mmAq pressure for dense fins
  • Single-tower layout (124×76×151 mm) keeps RAM slots clear

Specifications

BrandSudokoo
SeriesSK700
ModelSK700-V Amazon
Part NumberSK700 Amazon
ColorBlack
TypeAir
Fan Size120x120x25 mm(LxWxH)
CPU Socket CompatibilityAMD Socket AM5
Bearing TypeFluid Dynamic bearing
RPM2200 rpm
Air Flow66.29 cubic_feet_per_minute
Noise Level32.5 decibels
Power Connector4-pin PWM
Pressure3.74 mmAq
Max CPU Cooler Height0.48 L x 0.32 W x 0.54 H inches
Fan Dimensions0.48 in x 0.32 in x 0.54 in
Heatsink Dimensions0.48 in x 0.32 in x 0.54 in
Weight1.32 kilograms
Package ContentsCPU Air Cooler
Shipping weight1.32 kg
Package size240 × 191 × 170 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat can the 220W TDP rating actually handle in a working AM5 system?

The cooler is rated for 220W thermal design power, meaning it can dissipate that much heat from an AM5 processor under load when the fan runs up to 2200 RPM.

What does the 4-pin PWM connector allow the fan to do between 500 and 2200 RPM?

The 4-pin PWM link lets the motherboard vary fan speed from 500 to 2200 RPM, dropping below 5% PWM duty to 0 RPM for silent idle operation.

Will the 146×97×164 mm cooler fit my case and clear RAM slots?

The single-tower heatsink measures 124×76×151 mm and the fan adds 25 mm thickness; the L-rail lock mount keeps the assembly clear of standard-height RAM modules.
