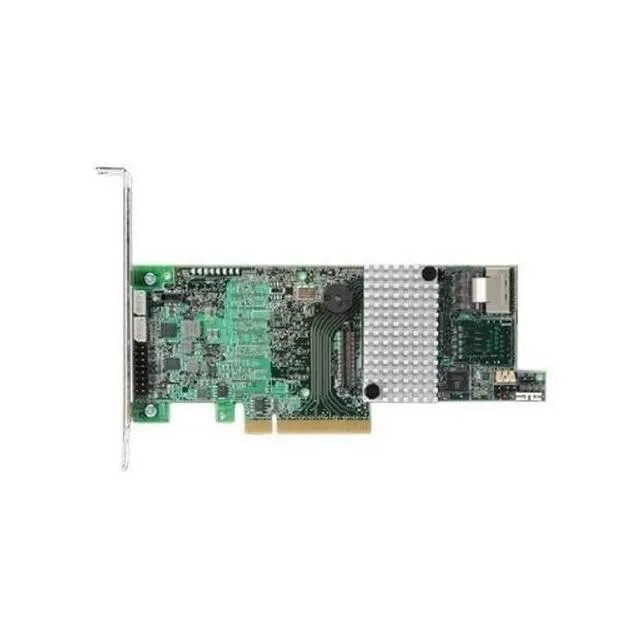

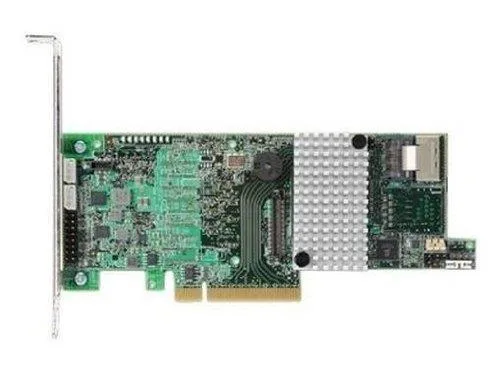

Green circuit board with eight internal ports and a PCI-Express x8 edge connector

Supermicro

Supermicro AOC-S2208L-H8IR 8 Port SATA/SAS 6Gb/s PCI-E 2.0 RAID Controller

SKU CH-F8BH-TC7CY

Eight-port SATA/SAS 6Gb/s RAID controller supporting RAID 0, 1, 5, 6, 10, 50, 60 via PCI-E 3.0 x8

  • Form FactorPlug-in Card
  • TypeSAS Controller
  • InterfacePCI-Express 3.0 x8
  • RAID0 1 5 6 10 50 60
  • Eight internal drives supported by single controller
  • SATA and SAS drives at 6 Gb/s throughput
  • RAID 0 1 5 6 10 50 60 levels available
  • PCI-Express 3.0 x8 host interface bandwidth
  • Plug-in card form factor fits standard slots

Eight-port SATA/SAS controller

The Supermicro AOC-S2208L-H8IR adds eight SATA or SAS 6 Gb/s ports through a PCI-Express 3.0 x8 slot. It targets administrators who need to expand internal storage connectivity on a server or workstation board.

RAID levels and throughput headroom

Hardware RAID 0, 1, 5, 6, 10, 50 and 60 are supported, giving redundancy or performance options for multi-drive arrays. The 6 Gb/s link per port handles mechanical drives and SATA SSDs comfortably; saturation appears only with many simultaneous high-throughput workloads.

Low-profile plug-in card build

The low-profile form factor fits standard server chassis without blocking adjacent slots. Eight internal mini-SAS connectors keep cabling tidy and allow straightforward drive-bay routing in dense enclosures.

Highlights

  • Eight internal drives supported by single controller
  • SATA and SAS drives at 6 Gb/s throughput
  • RAID 0 1 5 6 10 50 60 levels available
  • PCI-Express 3.0 x8 host interface bandwidth
  • Plug-in card form factor fits standard slots

Specifications

BrandSUPERMICRO
Form FactorPlug-in Card
TypeSAS Controller
InterfacePCI-Express 3.0 x8
RAID0 1 5 6 10 50 60

Questions about this item

Will the PCI-Express 3.0 x8 interface on this controller work in my older PCIe 2.0 server slot?

The card uses a PCI-Express 3.0 x8 interface and will operate in a PCIe 2.0 slot at the slower 2.0 speed, which still supports the controller's 6Gb/s SATA/SAS ports.

How can I verify the RAID 0 1 5 6 10 50 60 arrays are healthy after installing the AOC-S2208L-H8IR?

Use the Supermicro BIOS utility or the operating-system management software to confirm each virtual drive shows an Optimal state and that all eight ports report a 6Gb/s link speed.

Does the box include the Mini-SAS cables needed to connect the eight SATA/SAS ports, or must I buy them separately?

The controller ships as the plug-in card only; Mini-SAS to SATA or SAS breakout cables for the eight 6Gb/s ports are not included and must be purchased separately.
