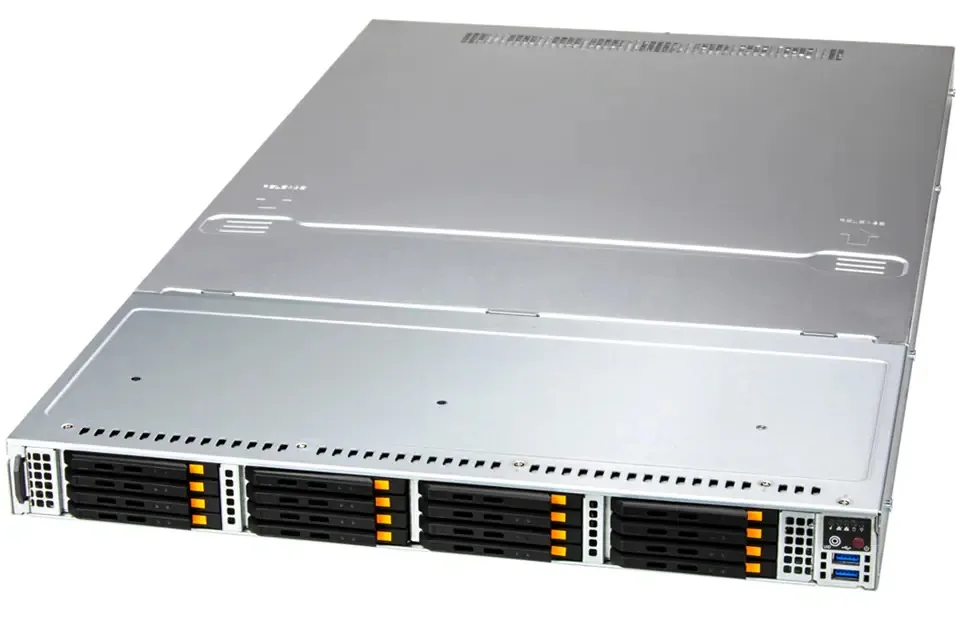

Silver 1U rack server front panel with sixteen E3.S drive bays and status LEDs

Supermicro

Supermicro ASG-1115S-NE316R-02-G1 1U rack server EPYC 9454P 48C 384GB DDR5 2x 960GB NVMe 16 E3.S bays

SKU CH-D9WS-R42P2 MPN ASG-1115S-NE316R-02-G1

1U rack server with 48-core EPYC 9454P, 384GB DDR5, 2x 960GB NVMe and 16 E3.S bays

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height1U
  • LEDsNetwork activity Power status SSD activity System informatio
  • Hot-swap Fans8 Heavy Duty 4cm Fan(s)
  • CPU TypeAMD EPYC 9004 Series
  • 48-core EPYC 9454P powers heavy workloads at 2.75 GHz
  • 384 GB DDR5-5600 ECC memory scales to 9 TB capacity
  • Dual 10 GbE RJ45 links deliver fast network throughput
  • 16 front E3.S bays support PCIe 5.0 x4 NVMe drives
  • Twin 1600 W titanium PSUs ensure efficient redundant power

1U rack server with EPYC 9454P

This Supermicro ASG-1115S-NE316R-02-G1 is a 1U rackmount server built around a single AMD EPYC 9454P processor with 48 cores at 2.75 GHz. It ships with 384 GB of DDR5-5600 memory across 24 slots and two 960 GB M.2 NVMe SSDs for the operating system. Dual 10 GbE RJ45 networking and sixteen front E3.S PCIe 5.0 x4 bays complete the platform.

Suits dense storage compute; not for multi-socket

The configuration targets workloads that need high core count and large local NVMe capacity in a single-socket chassis. Sixteen hot-swap E3.S bays support all-flash arrays or caching tiers. Organisations requiring dual-processor scaling, GPU acceleration, or Fibre Channel connectivity should evaluate other platforms because this system supports only one CPU and has no PCIe slots listed for add-in cards.

Deciding spec: sixteen E3.S PCIe 5.0 x4 bays

The sixteen front-accessible E3.S bays each wired for PCIe 5.0 x4 NVMe are the feature that determines fit. They enable up to sixteen high-performance drives directly attached to the CPU, delivering maximum throughput for storage-heavy applications. If the deployment needs fewer bays, different form factors, or external JBOD expansion, another chassis will be more appropriate.

Highlights

  • 48-core EPYC 9454P powers heavy workloads at 2.75 GHz
  • 384 GB DDR5-5600 ECC memory scales to 9 TB capacity
  • Dual 10 GbE RJ45 links deliver fast network throughput
  • 16 front E3.S bays support PCIe 5.0 x4 NVMe drives
  • Twin 1600 W titanium PSUs ensure efficient redundant power

Specifications

BrandSUPERMICRO
ModelASG-1115S-NE316R-02-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height1U
LEDsNetwork activity
Power status
SSD activity
System information (overheat/UID)
Hot-swap Fans8 Heavy Duty 4cm Fan(s)
CPU TypeAMD EPYC 9004 Series
CPU Speed9454P (2.75 GHz)
Number of CPU Cores48-Core Processor
Cache Memory256 MB
# of Processors Installed1
MAX Processors1
Installed Memory Size384GB
Memory TypeDDR5 5600
Max Memory Capacity9TB
Memory FeaturesMax Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
Max Memory (1DPC): Up to 4.5TB 5200MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (2DPC): Up to 9TB 4400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Number of Memory Slots24
SSD (Installed)2 x 960GB M.2 NVMe SSD
Ethernet Controller1 Dual 10GbE RJ45
Expansion Bays16 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280/22110)
Power Characteristics2 x 1600W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (Non-condensing)
Non-operating Relative Humidity: 8% to 95% (Non-condensing)
Dimensions1.7" x 17.2" x 30.4"
Weight48 lbs.
Shipping weight45.36 kg
Package size1041 × 686 × 675 mm

Questions about this item

How does the 48-core EPYC 9454P perform inside a 1U rack chassis?

The single AMD EPYC 9454P runs at 2.75 GHz with 48 cores and 256 MB cache, cooled by eight heavy-duty 4 cm hot-swap fans in a 1U form factor.

What practical throughput does the dual 10GbE RJ45 controller provide?

The onboard dual 10GbE RJ45 ports deliver up to 10 Gb/s per port over standard copper cabling for storage or cluster traffic.

What physical space and power do the 16 front E3.S bays require?

Sixteen front hot-swap E3.S 1T bays accept PCIe 5.0 x4 NVMe drives, powered by dual 1600 W titanium-level supplies in the 1U chassis.
