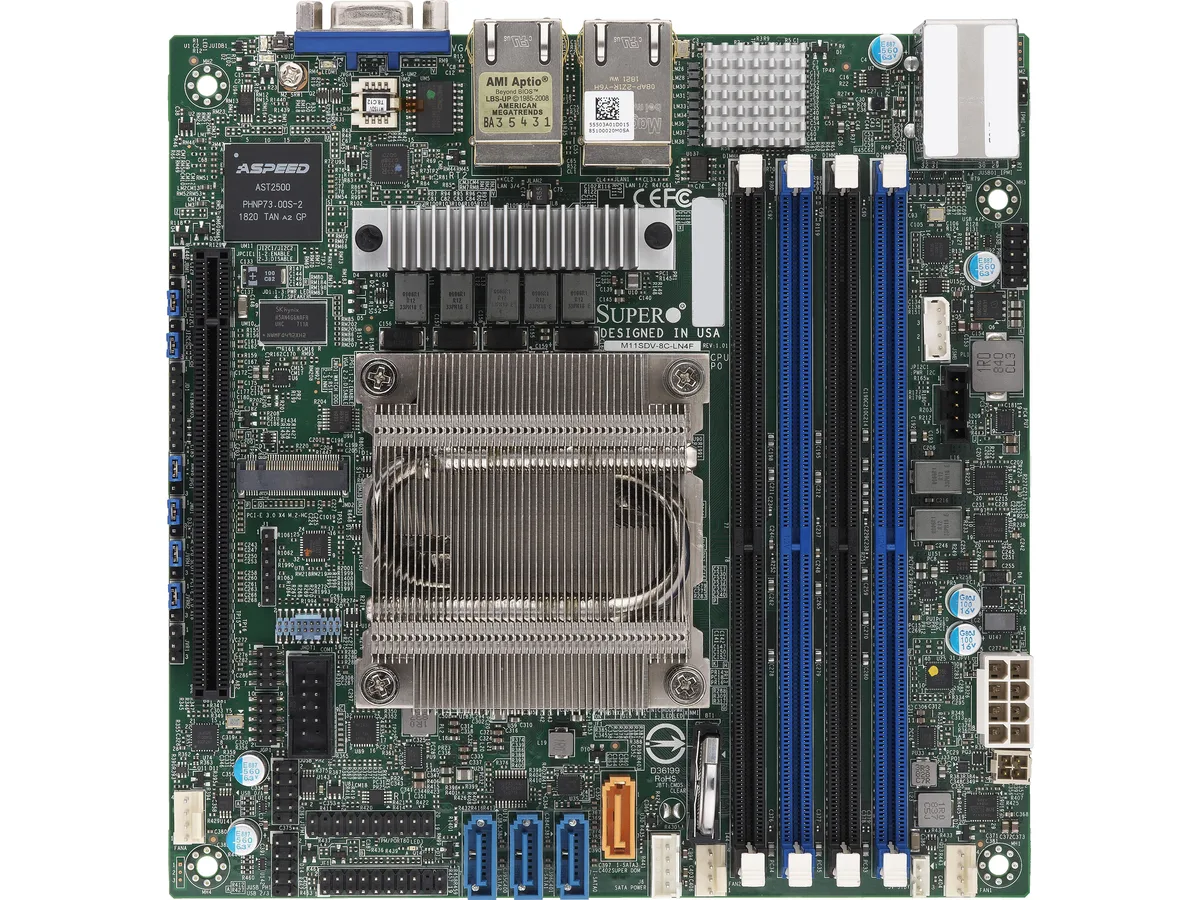

Green Mini-ITX server motherboard with silver CPU socket, four black DDR4 slots, single PCIe x16 slot, M.2 socket, four RJ45 ports

Supermicro

Supermicro MBD-M11SDV-8CT-LN4FO server motherboard

SKU CH-HARY-7T9JN MPN MBD-M11SDV-8CT-LN4FO

Mini-ITX server board with AMD EPYC 3201 SoC, four DDR4 slots for up to 512GB ECC registered memory, PCIe 3.0 x16 and M.2 slots, four SATA 6.0Gb/s ports, quad 1GbE LAN plus dedicated IPMI, VGA.

  • CPU TypeSupports AMD EPYC 3201 SoC Processor
  • Supported CPU Technologies8 Core / 8 Thread
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2133
  • Maximum Memory Supported512GB
  • Channel SupportedDual Channel
  • 8-core EPYC 3201 SoC at 30W TDP
  • 512GB DDR4-2133 ECC registered memory across four slots
  • Four 1GbE ports plus dedicated IPMI LAN
  • PCIe 3.0 x16 plus M.2 2280 M-key expansion
  • ASPEED AST2500 BMC with VGA and COM port

Compact EPYC 3201 server board

The Supermicro MBD-M11SDV-8CT-LN4FO integrates an AMD EPYC 3201 SoC with eight cores and eight threads into a Mini ITX form factor. It targets builders who need a low-power, single-socket platform with ECC memory support and multiple network ports for storage or edge workloads.

30 W SoC thermals and dual-channel DDR4

The processor runs at a 30 W TDP, allowing passive or low-airflow cooling in compact chassis. Four 288-pin DDR4 slots accept up to 512 GB of ECC registered memory at 2133 MHz in dual-channel mode, providing data integrity without active DIMM cooling.

IPMI LAN and M.2 PCI-E 3.0 x4

A dedicated Realtek RTL8211E port gives out-of-band management via the ASPEED AST2500 BMC. The M-key M.2 slot carries a PCI-E 3.0 x4 link for 2280 storage, while four SATA 6.0 Gb/s ports and two USB 3.0 headers handle additional drives and peripherals.

Highlights

  • 8-core EPYC 3201 SoC at 30W TDP
  • 512GB DDR4-2133 ECC registered memory across four slots
  • Four 1GbE ports plus dedicated IPMI LAN
  • PCIe 3.0 x16 plus M.2 2280 M-key expansion
  • ASPEED AST2500 BMC with VGA and COM port

Specifications

BrandSUPERMICRO
ModelMBD-M11SDV-8CT-LN4F-O
CPU TypeSupports AMD EPYC 3201 SoC Processor
Supported CPU Technologies8 Core / 8 Thread
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2133
Maximum Memory Supported512GB
Channel SupportedDual Channel
ECC SupportedYes
RegisteredYes
PCI Express 3.0 x161
SATA4 x SATA 6.0Gb/s
M.2Interface: 1 x PCI-E 3.0 x4
Form factor: 2280
Key: M-key
Onboard Video ChipsetAspeed AST2500 BMC
Number of LAN4 x 1GbE with Intel I350-AM4
1 x Realtek RTL8211E PHY (dedicated IPMI)
Max LAN Speed4 x 1Gbps
COM1
Video Ports1 x VGA
RJ454 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.06 x USB 2.0
USB 3.02 x USB 3.0
FeaturesAMD EPYC 3201 SoC Processor, 8 Core/8 Thread, 30W
Up to 512GB ECC Registered, DDR4-2133MHz SDRAM in 4 DIMMs
1 PCI-E 3.0 x16 slot, 1 M.2 PCI-E 3.0 x4, 2280, M Key
SoC controller for 4 SATA 3.0
4 Gigabit Ethernet ports, 1 dedicated IPMI LAN
ASPEED AST2500 BMC graphics
Up to 2 USB 3.0 ports, Up to 6 USB 2.0 ports
1 COM port, TPM 2.0 header
3 fan header, 4-pin type fan header, 3 fans with tachometer monitoring
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Shipping weight0.04 kg
Package size182 × 130 × 10 mm

Questions about this item

How do I install the Supermicro MBD-M11SDV-8CT-LN4FO into a Mini-ITX chassis and which header is most often missed?

Align the board with the standard Mini-ITX mounting holes, secure it with standoffs, then connect the 1 x COM header and the TPM 2.0 header before closing the case.

What memory maintenance will this board need over its service life?

The 4 x 288-pin slots take DDR4 2133 ECC registered modules up to 512 GB; replace any DIMM that logs correctable errors or fails a memory test.

Which limit appears first when the AMD EPYC 3201 SoC runs sustained workloads?

The 30 W SoC power envelope is the first constraint; the board’s cooling must dissipate that heat continuously or the processor will throttle.
