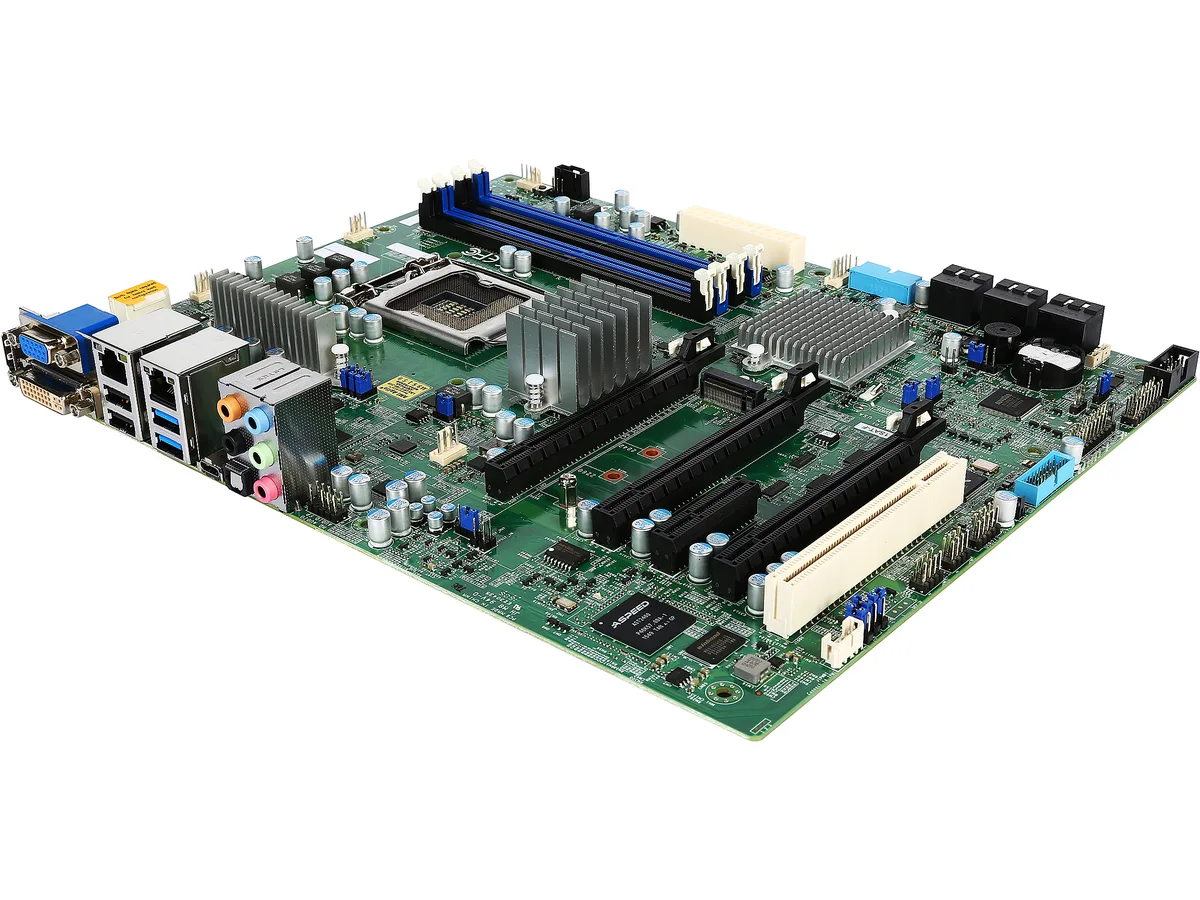

ATX server motherboard, green PCB, silver I/O shield, four DDR4 slots, three PCIe x16 slots, two RJ45 ports, USB Type-C port

Supermicro

Supermicro MBD-X11SAT-F-O server motherboard LGA 1151 C236 64GB DDR4

SKU CH-AVGJ-S0VJP MPN MBD-X11SAT-F-O

ATX server motherboard with LGA 1151 socket, Intel C236 chipset, four DDR4 slots supporting 64 GB ECC memory, three PCIe 3.0 x16 slots, six SATA 6 Gb/s ports, dual Gigabit LAN, and USB 3.1 Type-C

  • CPU Socket TypeSingle Socket H4 (LGA 1151)
  • CPU TypeSupports: Intel 6th/7th Generation Core i3 / i5 / i7 Intel X
  • North BridgeIntel C236 chipset
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2133 / 1866 / 1600 MHz
  • Maximum Memory Supported64GB
  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i7/i5/i3
  • Up to 64 GB unbuffered ECC or non-ECC DDR4 2133 MHz across four slots
  • Three PCIe 3.0 x16 slots configurable at 16/NA/16 or 16/8/8
  • Dual Intel Gigabit LAN with i210-AT and i219LM controllers
  • Six SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support

Server motherboard for Xeon E3 and Core 6th/7th Gen

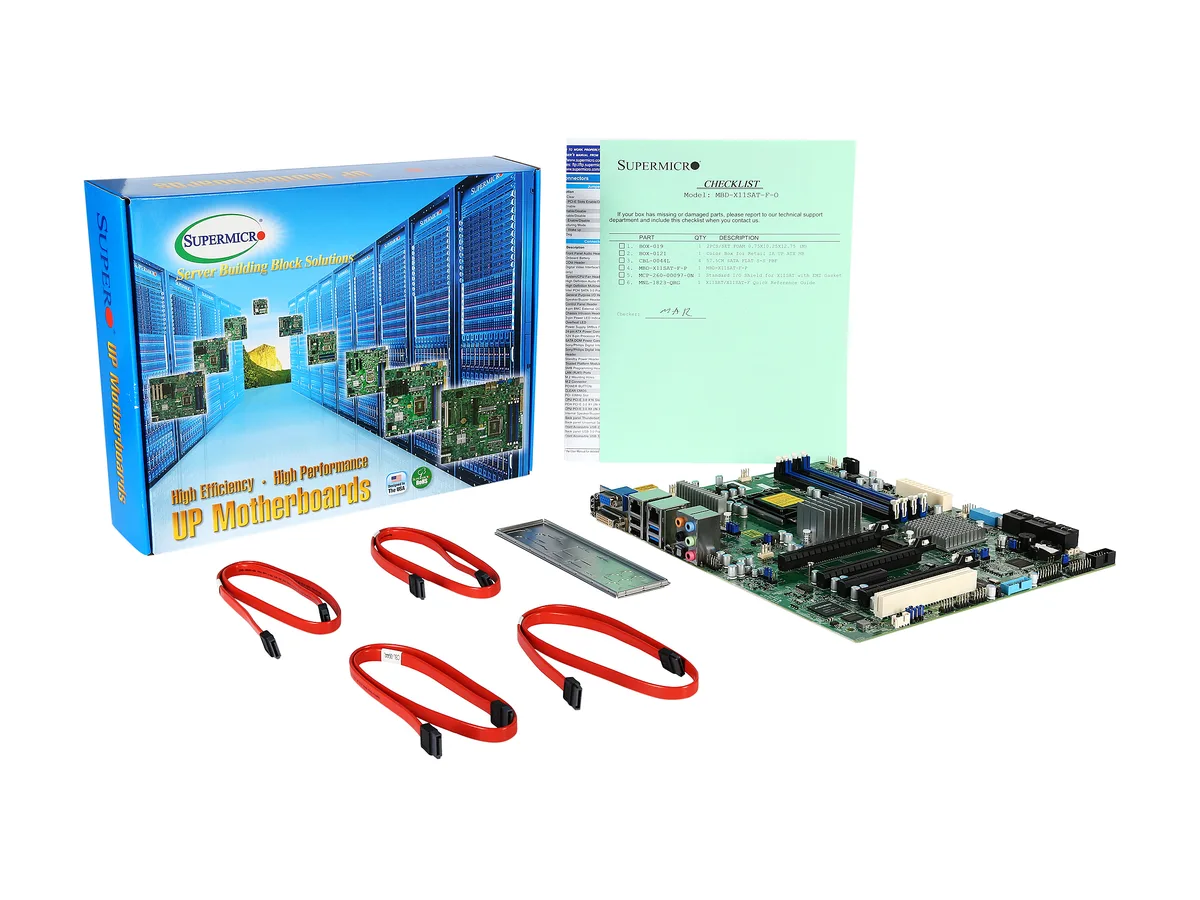

The Supermicro MBD-X11SAT-F-O is an ATX server board built around the Intel C236 chipset and a single LGA 1151 socket. It targets builders assembling entry-level workstations or small business servers that need ECC memory support and multiple expansion slots. The board ships new in retail packaging.

Four DDR4 slots with 64 GB maximum

Four 288-pin DIMM sockets accept unbuffered ECC or non-ECC DDR4 at 2133, 1866 or 1600 MHz, capping total capacity at 64 GB. This memory ceiling is the primary constraint; systems requiring more RAM must choose a different platform. The board does not support registered or load-reduced modules.

Passive chipset cooling with 95 W CPU limit

The C236 PCH is cooled without a fan, so chassis airflow must cover the chipset heatsink. Processor power draw is rated up to 95 W TDP; higher-wattage CPUs are not supported. Two onboard Gigabit LAN controllers and the ASPEED AST2400 BMC add minimal heat under typical server loads.

Highlights

  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i7/i5/i3
  • Up to 64 GB unbuffered ECC or non-ECC DDR4 2133 MHz across four slots
  • Three PCIe 3.0 x16 slots configurable at 16/NA/16 or 16/8/8
  • Dual Intel Gigabit LAN with i210-AT and i219LM controllers
  • Six SATA 6 Gb/s ports with RAID 0, 1, 5, 10 support

Specifications

BrandSUPERMICRO
ModelMBD-X11SAT-F-O
CPU Socket TypeSingle Socket H4 (LGA 1151)
CPU TypeSupports:
Intel 6th/7th Generation Core i3 / i5 / i7
Intel Xeon processor E3-1200 v6/v5
North BridgeIntel C236 chipset
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2133 / 1866 / 1600 MHz
Maximum Memory Supported64GB
ECC SupportedYes
Other Slots3x PCI-E 3.0 x16 slots (run at 16 / NA / 16 or 16 / 8 / 8)
1x PCI-E 3.0 x1 (in x4) slot
1x 5V PCI 32bit slot
SATA6 x SATA 6.0Gb/s
Onboard Video ChipsetASPEED AST2400 BMC
Audio ChipsetALC 888S HD Audio
LAN ChipsetIntel I210-AT + Intel PHY i219V
LAN Speed10/100/1000Mbps
RJ452 x RJ45 Gigabit Ethernet LAN ports
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
USB 3.11 x USB 3.1
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series
Intel C236 chipset
Up to 64GB Unbuffered ECC / non-ECC UDIMM DDR4 2133 MHz; 4x DIMM slots
3x PCI-E 3.0 x16 (run at 16 / NA / 16 or 16 / 8 / 8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots
Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219V
6 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1x VGA, 1x COM, TPM 1.2 header
2 x SuperDOM with built-in power
6 x USB 3.0 (2 rear + 4 via header), 4 x USB 2.0 (2 rear + 2 via header), 1 x USB 3.1 (10Gbps) Type C p
Form FactorATX
Dimensions (W x L)12.0" x 8.6"
Shipping weight1.16 kg
Package size335 × 264 × 69 mm

Questions about this item

What does the 64 GB DDR4 limit mean for a workstation build?

The board has four 288-pin slots and supports up to 64 GB of unbuffered ECC or non-ECC DDR4 at 2133 MHz, so you can populate all four slots with 16 GB modules to reach the maximum capacity.

How do the PCIe 3.0 x16 slots share bandwidth?

The three x16 slots run at either 16/NA/16 or 16/8/8 depending on how many are occupied, while the x1-in-x4 slot and the 5 V PCI slot operate independently.

What chassis space and power connectors does the ATX board need?

It measures 30.48 cm by 24.38 cm, fits standard ATX cases, and the CPU socket is rated for processors up to 95 W TDP, so plan cooling and power delivery accordingly.
