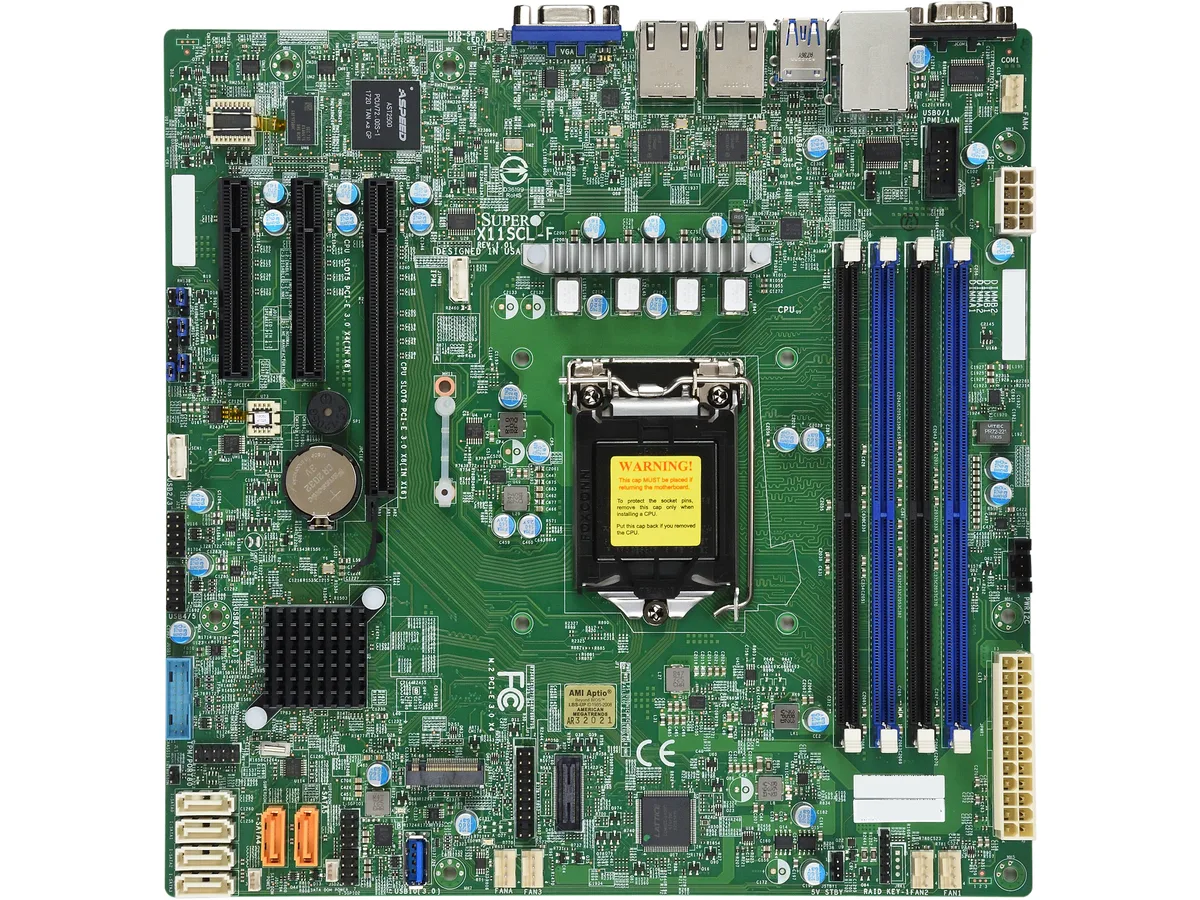

Green rectangular micro ATX server motherboard with black slots and silver heatsinks

Supermicro

Supermicro MBD-X11SCL-F-O server motherboard LGA 1151 DDR4 2667 128GB

SKU CH-G2EC-W86V1 MPN MBD-X11SCL-F-O

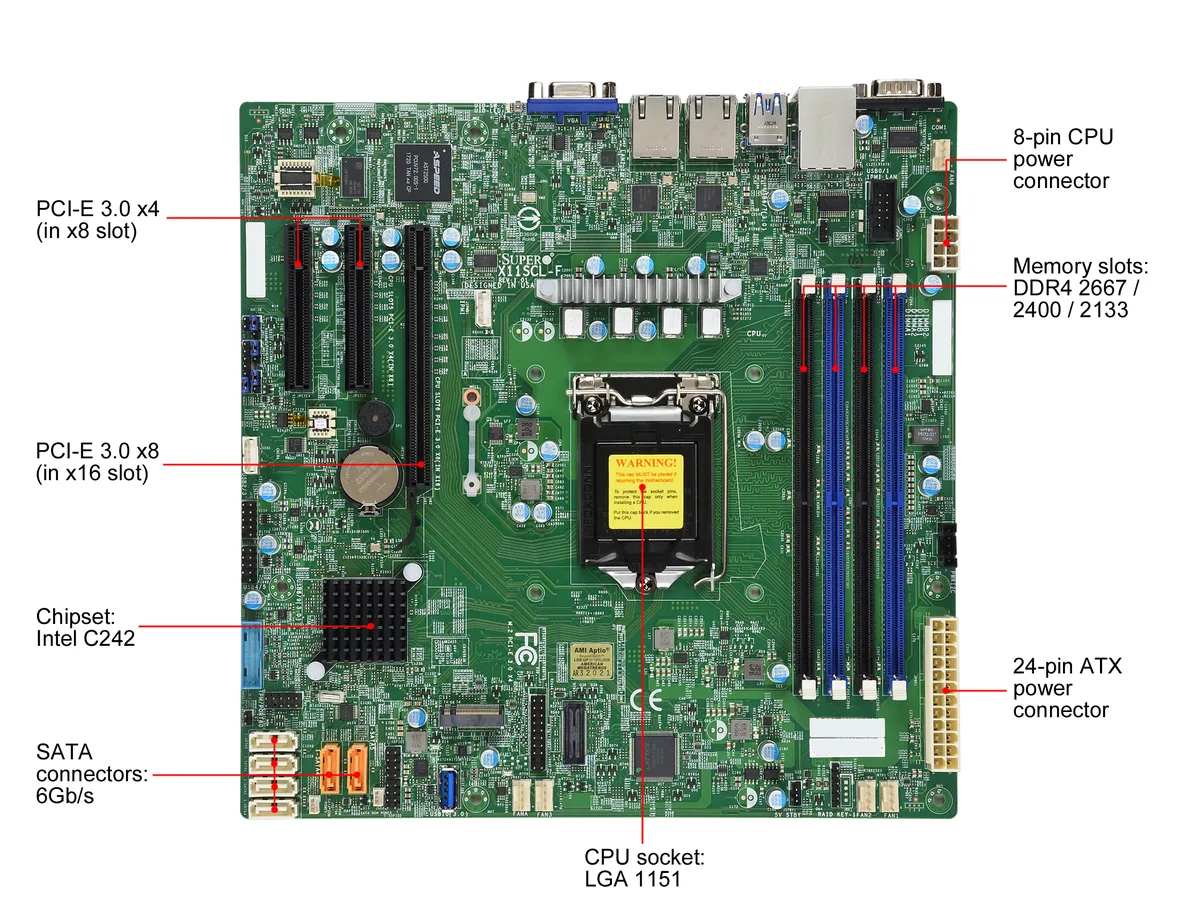

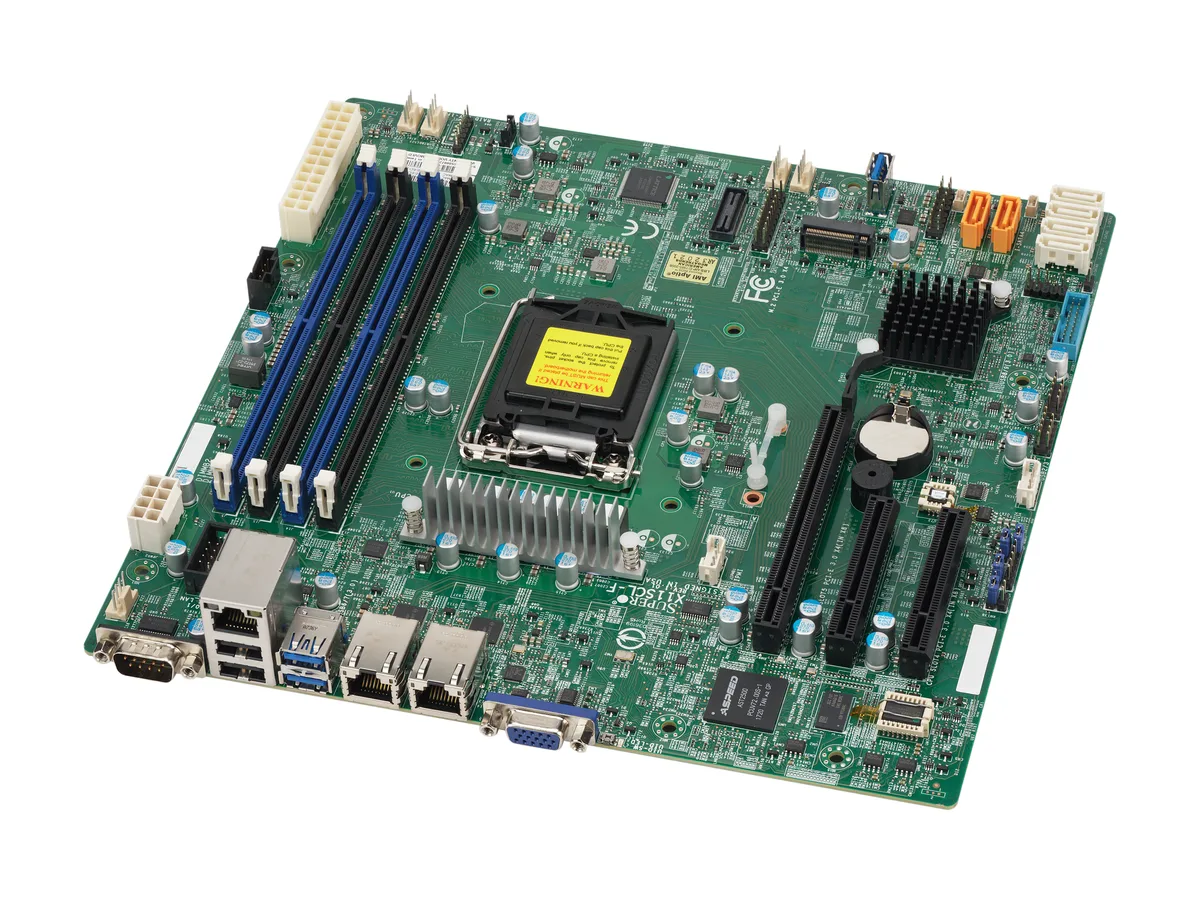

Micro-ATX server board with LGA 1151 socket, four DDR4 ECC slots up to 128 GB, dual 1 GbE LAN, six SATA 6 Gbps ports with RAID 0/1/5/10, one PCIe 3.0 x8 and two x4 slots, plus M.2 and IPMI video

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel Xeon E-2100 Processor Intel Xeon E-2200 Proc
  • North BridgeIntel C242
  • DDR4 StandardDDR4 2667 / 2400 / 2133 MHz ECC SDRAM 72-bit
  • Maximum Memory SupportedUp to 128GB Unbuffered ECC UDIMM, in 4 x DIMM slots
  • PCI Express x81 x PCI-E 3.0 x8 (in x16 slot)
  • Supports Intel Xeon E-2100 and E-2200 processors for server workloads
  • Up to 128GB DDR4 2667MHz ECC UDIMM across four DIMM slots
  • Dual Intel I210 Gigabit LAN ports for redundant network connectivity
  • Six SATA 6.0Gb/s ports with RAID 0/1/5/10 support
  • Micro ATX form factor fits compact server chassis

Micro ATX server board for E-2100 and E-2200 Xeons

This motherboard fits the LGA 1151 socket and the Intel C242 chipset. It accepts Intel Xeon E-2100 and E-2200 processors plus 8th and 9th generation Core i3, Pentium and Celeron CPUs up to 95W TDP. The micro ATX layout suits compact chassis and embedded deployments.

PCIe 3.0 lanes and dual 1GbE set the I/O ceiling

One PCIe 3.0 x8 slot in a x16 connector and two PCIe 3.0 x4 slots in x8 connectors provide expansion for storage or networking cards. Six SATA 6.0Gb/s ports support RAID 0, 1, 5 and 10. Dual Intel I210 controllers deliver two 10/100/1000Mbps Ethernet links. The M.2 connector uses a PCIe 3.0 x4 interface with M-key 2280/22110 form factors.

128GB DDR4 2667 ECC UDIMM limit defines memory

Four DIMM slots accept unbuffered 72-bit ECC modules at 2667, 2400 or 2133 MHz. Maximum supported capacity is 128GB. Builders needing registered DIMMs, higher speeds or larger totals must choose a different platform.

Highlights

  • Supports Intel Xeon E-2100 and E-2200 processors for server workloads
  • Up to 128GB DDR4 2667MHz ECC UDIMM across four DIMM slots
  • Dual Intel I210 Gigabit LAN ports for redundant network connectivity
  • Six SATA 6.0Gb/s ports with RAID 0/1/5/10 support
  • Micro ATX form factor fits compact server chassis

Specifications

BrandSUPERMICRO
ModelMBD-X11SCL-F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel Xeon E-2100 Processor
Intel Xeon E-2200 Processor
8th/9th Generation Intel Core i3 / Pentium / Celeron Processor
North BridgeIntel C242
DDR4 StandardDDR4 2667 / 2400 / 2133 MHz ECC SDRAM 72-bit
Maximum Memory SupportedUp to 128GB Unbuffered ECC UDIMM, in 4 x DIMM slots
PCI Express x81 x PCI-E 3.0 x8 (in x16 slot)
PCI Express x42 x PCI-E 3.0 x4 (in x8 slot)
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2500 BMC
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I210
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps
COM1
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E-2100, Intel 8th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C242 chipset
Up to 128GB DDR4 2666 MHz ECC UDIMM; 4 x DIMM slots
Expansion slots:
1 x PCI-E 3.0 x8 (in x16)
2 x PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel i210-AT
6 x SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
M.2 NGFF connector
M.2 Interface: 1 x PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector

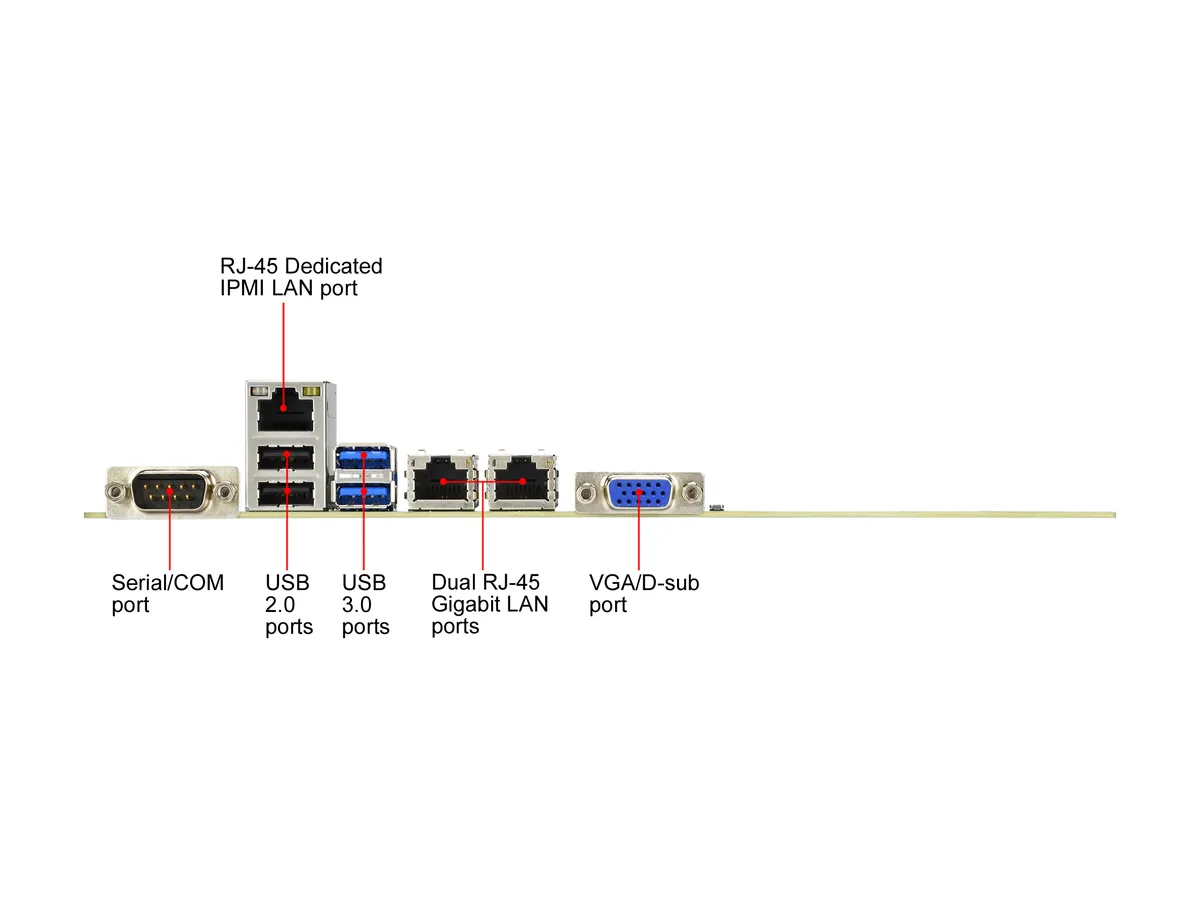

I/O: 1 x VGA, 2 x COM, 2 x SuperDOM, and TPM header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight0.92 kg
Package size282 × 274 × 58 mm

Questions about this item

Which memory kit should I select to reach the maximum 128GB capacity?

The board accepts up to 128GB of DDR4 2667 ECC UDIMM across four DIMM slots; choose modules that match that speed and ECC type.

What does the 2667MHz DDR4 rating mean for actual system speed?

Installed DDR4 2667 ECC UDIMM will run at up to 2667MHz; if slower 2400 or 2133 modules are used, the memory bus drops to the lowest installed speed.

What does the PCIe 3.0 x8 slot limit for add-in cards?

The single x16-sized slot provides PCIe 3.0 x8 bandwidth, capping throughput at eight lanes for GPUs, NICs or storage controllers.
