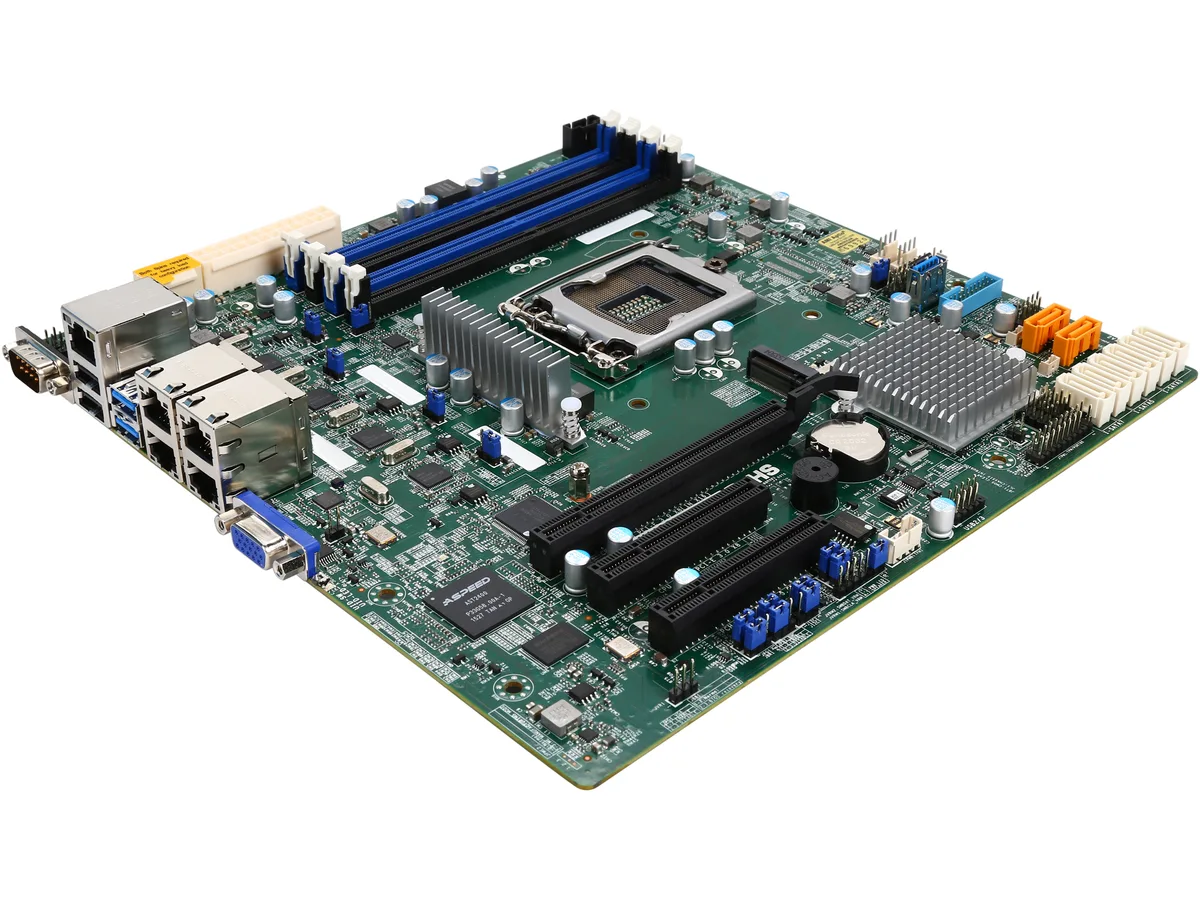

Green micro ATX server motherboard with four DDR4 slots and four RJ45 ports

Supermicro

Supermicro MBD-X11SSH-LN4F-O LGA 1151 micro ATX server motherboard

SKU CH-NJD6-PHPD3 MPN MBD-X11SSH-LN4F-O

Micro ATX server board with LGA 1151 socket, quad Intel gigabit LAN, eight SATA 6.0 Gb/s ports with RAID and up to 64 GB DDR4 ECC memory

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel 7th / 6th Generation Core i3 series Intel Xe
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2133 / 1866 / 1600 MHz
  • Maximum Memory Supported64GB
  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB of ECC UDIMM memory at 2133 MHz
  • Eight SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • Quad Intel I210-AT Gigabit LAN ports plus dedicated IPMI port for remote management
  • Three PCIe 3.0 expansion slots (x8 in x16, x8, x4 in x8) plus M.2 2280 for add-in cards

Socket and chipset

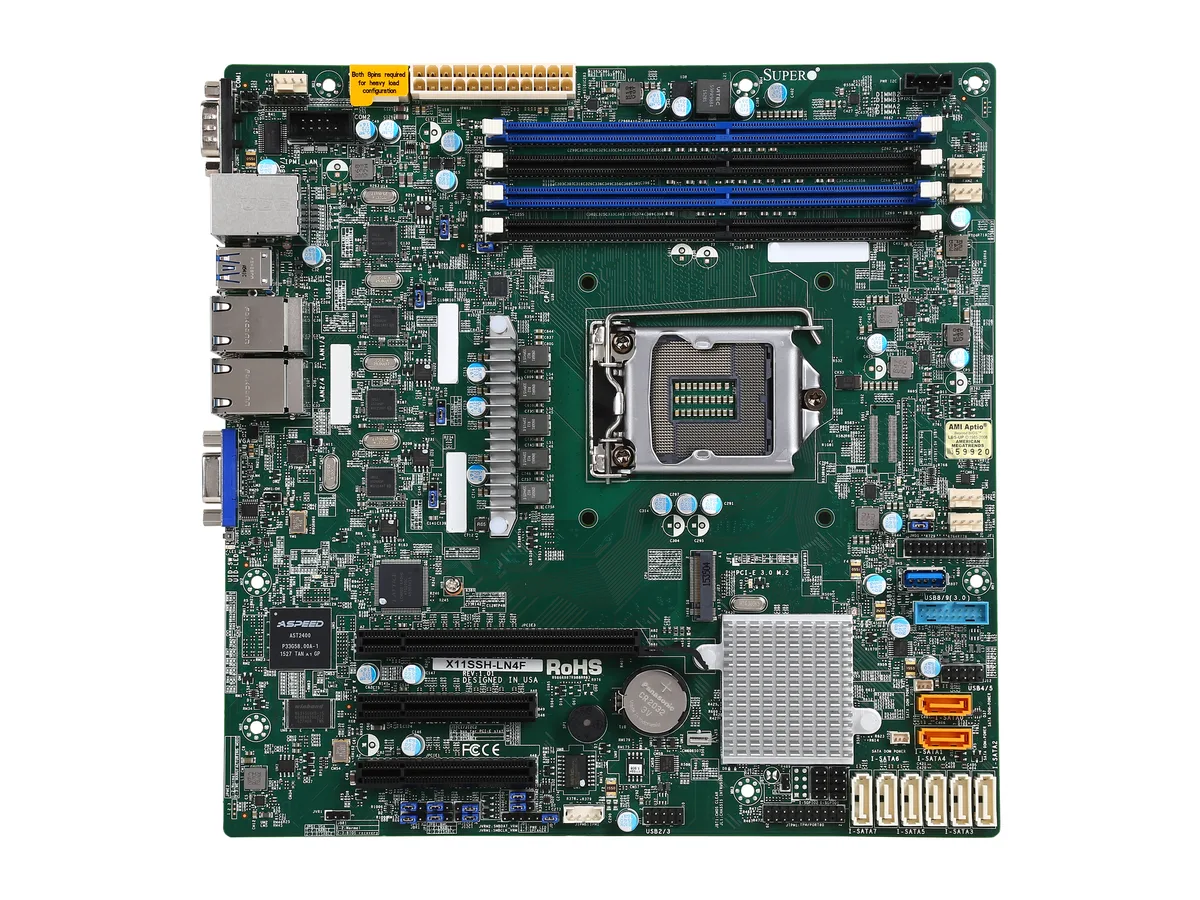

The Supermicro MBD-X11SSH-LN4F-O is a micro ATX server motherboard built around the Intel C236 chipset and the LGA 1151 socket. It supports Intel Xeon E3-1200 v5 and v6 processors, 6th and 7th generation Core i3 CPUs, plus Celeron and Pentium parts with a thermal design power up to 80W. This board targets small-form-factor servers and workstations that need ECC memory and multiple network ports in a compact 9.6 by 9.6 inch layout.

Memory capacity and ECC headroom

Four 288-pin DDR4 slots accept unbuffered ECC UDIMMs at 2133, 1866 or 1600 MHz, with a maximum capacity of 64GB. The 72-bit memory bus provides error correction for data integrity in always-on workloads. Builds requiring more than 64GB or registered DIMMs will exceed what this platform can address, so high-density virtualisation hosts should look elsewhere.

Expansion and storage interface limits

The board offers one PCI-E 3.0 x8 slot wired in an x16 connector, a second PCI-E 3.0 x8 slot and a PCI-E 3.0 x4 slot wired in an x8 connector. Storage connects through eight SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 support, plus a single M.2 2280 connector running at PCI-E 3.0 x2. The M.2 interface does not deliver full x4 bandwidth, and the PCI-E slot configuration limits the number of high-throughput add-in cards that can run at their rated width.

Highlights

  • Supports Intel Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3 CPUs via LGA 1151 socket
  • Four DDR4 slots accept up to 64 GB of ECC UDIMM memory at 2133 MHz
  • Eight SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • Quad Intel I210-AT Gigabit LAN ports plus dedicated IPMI port for remote management
  • Three PCIe 3.0 expansion slots (x8 in x16, x8, x4 in x8) plus M.2 2280 for add-in cards

Specifications

BrandSUPERMICRO
ModelMBD-X11SSH-LN4F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel 7th / 6th Generation Core i3 series
Intel Xeon processor E3-1200 v6/v5
Intel Celeron
Intel Pentium
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2133 / 1866 / 1600 MHz
Maximum Memory Supported64GB
ECC SupportedYes
Other SlotsPCI-Express:
1x PCI-E 3.0 x8 (in x16) slot
1x PCI-E 3.0 x8 slot
1x PCI-E 3.0 x4 (in x8) slot
M.2:
Interface: PCI-E 3.0 x2
Form Factor: 2280
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2400 BMC
LAN ChipsetIntel I210-AT
Second LAN ChipsetIntel I210-AT
Max LAN Speed4 x 1Gbps
COM1
Video Ports1 x VGA

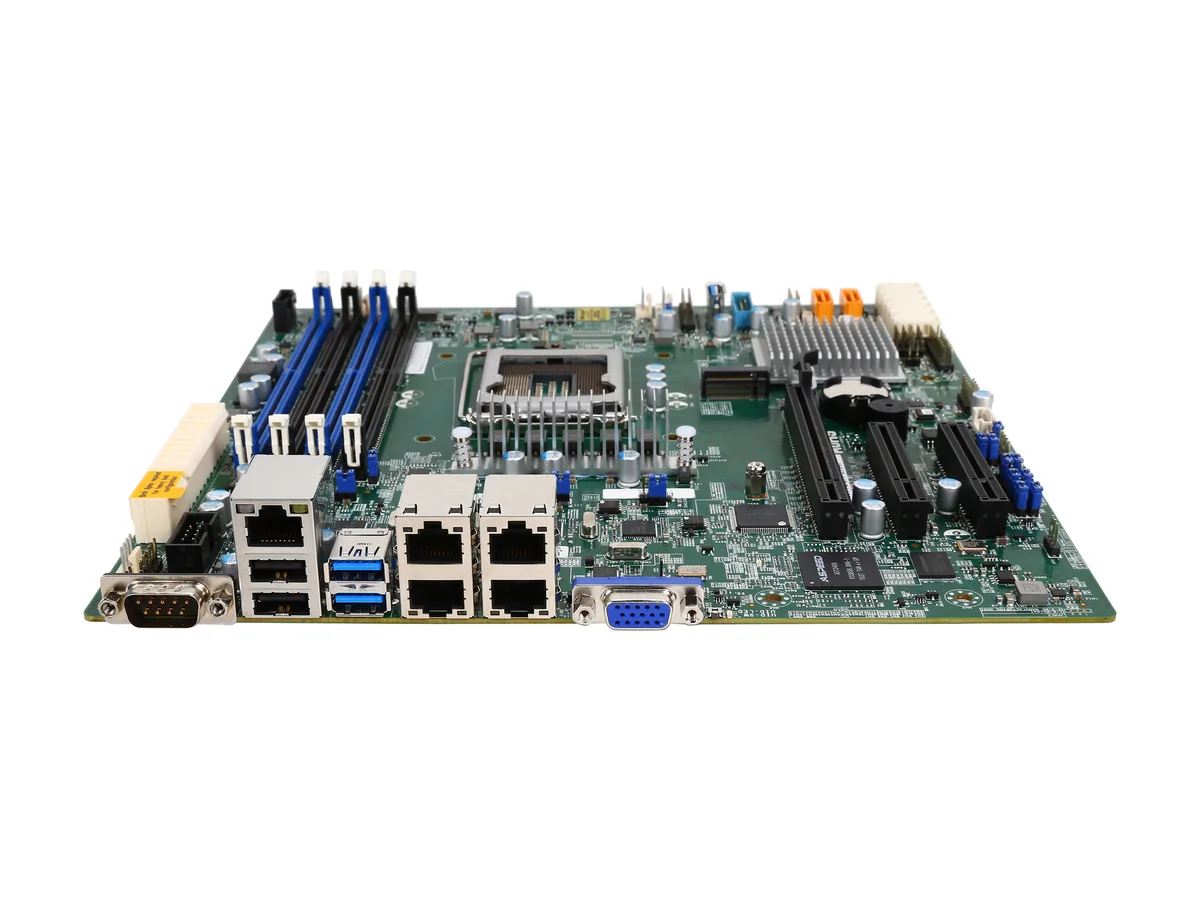

RJ454 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2133 MHz; 4 x DIMM slots
Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
Quad GbE LAN with Intel i210-AT
8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1 x VGA, 2 x COM, TPM 1.2 header
2 x SuperDOM with built-in power
5 x USB 3.0 (2 rear + 2 via header + 1 Type A), 6 x USB 2.0 (2 rear + 4 via headers)
M.2 NGFF connector
Support Intel VHD with selected CPU
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight0.93 kg
Package size282 × 274 × 56 mm

Questions about this item

Will my existing DDR4 2133 MHz ECC UDIMMs work in the four 288-pin slots on this board?

Yes, the four DDR4 slots accept 2133, 1866 and 1600 MHz ECC UDIMMs up to a total of 64 GB.

How can I verify the board is operating correctly after installation?

Connect a monitor to the VGA port, attach a network cable to one of the four RJ45 LAN ports or the dedicated IPMI LAN port, and check that the Aspeed AST2400 BMC initialises and the Intel I210-AT controllers show link lights.

What comes in the box and what must I purchase separately?

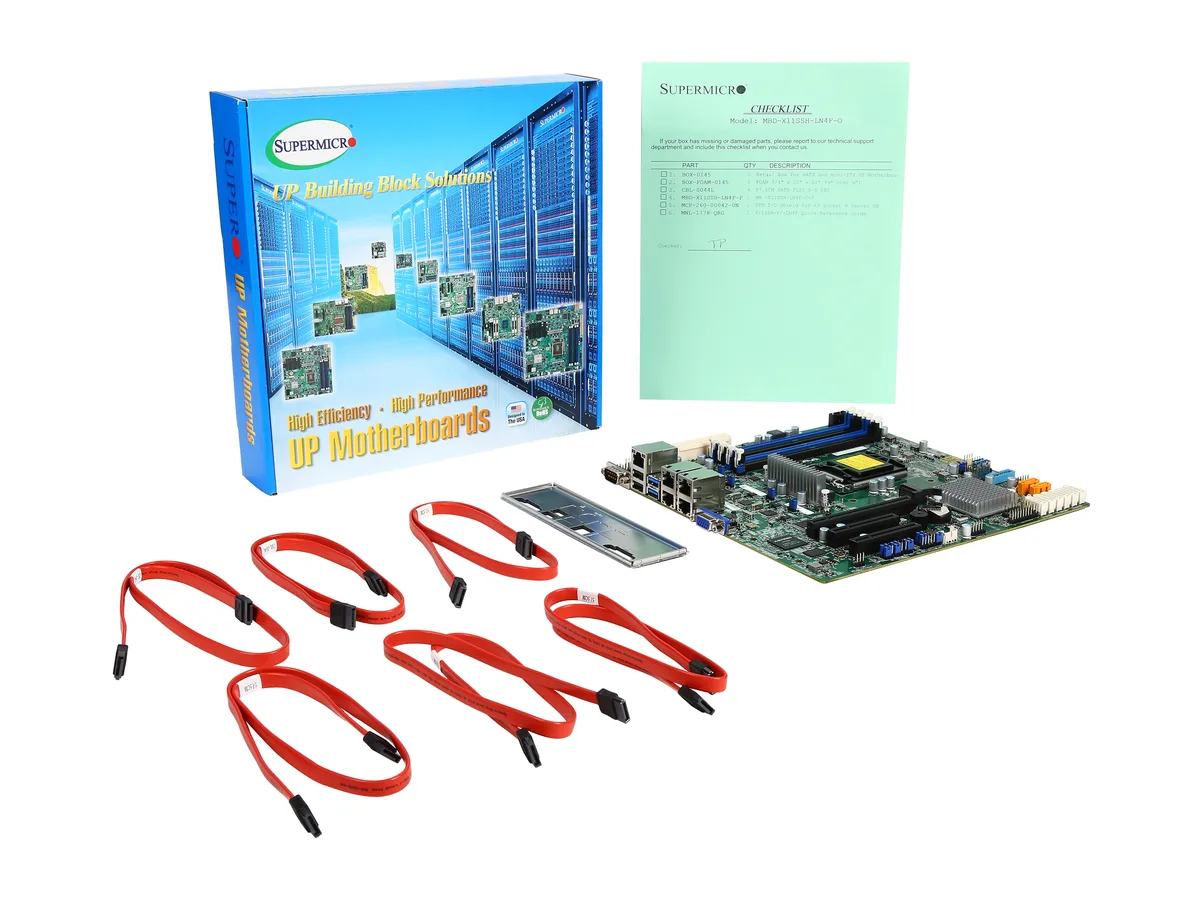

The motherboard includes the I/O shield, SATA cables for the eight SATA 6.0 Gb/s ports, and the SuperDOM power connectors; you must buy a compatible LGA 1151 CPU, DDR4 ECC UDIMM modules, M.2 2280 storage, and any PCIe add-in cards separately.
