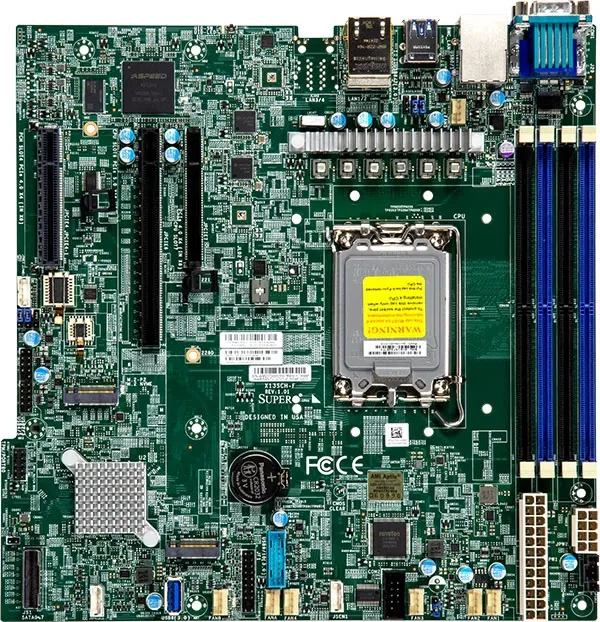

Green mATX server motherboard, silver LGA 1700 socket, four DDR5 slots, full-height PCIe x16 and two x8 slots

Supermicro

Supermicro MBD-X13SCH-F-O LGA 1700 mATX server motherboard

SKU CH-P37V-ESKZZ MPN MBD-X13SCH-F-O

mATX server board with LGA 1700 socket for single Xeon 6300-series or E-2400 CPU up to 95 W TDP, four DDR5-4400 ECC slots to 128 GB, one PCIe 5.0 x16 plus two PCIe 4.0 x4 slots.

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Xeon 6300-series/ E-2400/Pretium Processor
  • Number of Processor Support1
  • CPU FeaturesUp to 95W TDP
  • North BridgeIntel C266
  • Memory Slots4 x DDR5 288-pin
  • Supports Intel Xeon 6300-series and E-2400 processors up to 95W TDP
  • 128GB DDR5-4400 ECC memory across four slots for data integrity
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed expansion
  • Eight SATA3 ports via Slimline SAS with RAID 0/1/5/10 support
  • Dual 1GbE Intel I210 LAN plus Aspeed AST2600 remote management video

LGA 1700 mATX Server Motherboard

The Supermicro MBD-X13SCH-F-O is a new Micro ATX server motherboard built for the Intel LGA 1700 socket. It supports a single Intel Xeon 6300-series, E-2400 or Pentium processor with a thermal design power up to 95W. The Intel C266 chipset provides the platform foundation for entry-level server deployments.

Suits ECC DDR5 builds; not for multi-socket

This board suits builders who need ECC memory on DDR5 4400 with four DIMM slots supporting up to 128GB capacity. It is not for deployments that require multiple processor sockets or processor power envelopes above 95W. The single-socket design limits compute density for heavily threaded workloads.

One PCIe 5.0 x16 slot decides expansion

A single PCIe 5.0 x16 slot handles the primary add-in card such as a GPU or accelerator. Two additional PCIe 4.0 x4 lanes are routed through x8 physical slots for storage or networking cards. Storage connects through eight SATA3 ports via a Slimline SAS x8 connector and two M.2 PCIe 4.0 x4 slots.

Highlights

  • Supports Intel Xeon 6300-series and E-2400 processors up to 95W TDP
  • 128GB DDR5-4400 ECC memory across four slots for data integrity
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed expansion
  • Eight SATA3 ports via Slimline SAS with RAID 0/1/5/10 support
  • Dual 1GbE Intel I210 LAN plus Aspeed AST2600 remote management video

Specifications

BrandSUPERMICRO
ModelMBD-X13SCH-F-O
CPU Socket TypeLGA 1700
CPU TypeIntel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support1
CPU FeaturesUp to 95W TDP
North BridgeIntel C266
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported128GB
ECC SupportedYes
PCI Express 5.0 x161 x PCIe 5.0 x16
PCI Express x42 x PCIe 4.0 x4 (in x8 slot)
SATA8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
SATA RAID0/1/5/10
M.2M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps
Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 3 x USB 3.2 Gen 1
BIOS FeatureAMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight0.91 kg
Package size284 × 274 × 55 mm

Questions about this item

How do I verify the Aspeed AST2600 video output is working after installing the board?

Connect a monitor to the rear D-Sub port, power on, and watch for the AMI UEFI BIOS splash screen followed by the memory count and CPU detection messages.

Which cables or brackets are required to use the 8 SATA3 ports that connect through the Slimline SAS x8 connector?

The board provides the Slimline SAS x8 connector; you must supply a Slimline SAS x8 to 4× SATA breakout cable (or two of them) and standard SATA data cables for each drive.

Should I choose DDR5-4400 ECC UDIMMs or a lower speed to reach the 128 GB maximum across the four 288-pin slots?

DDR5-4400 ECC unbuffered DIMMs are the specified standard; populating all four slots with 32 GB modules achieves the 128 GB limit at the rated speed.
