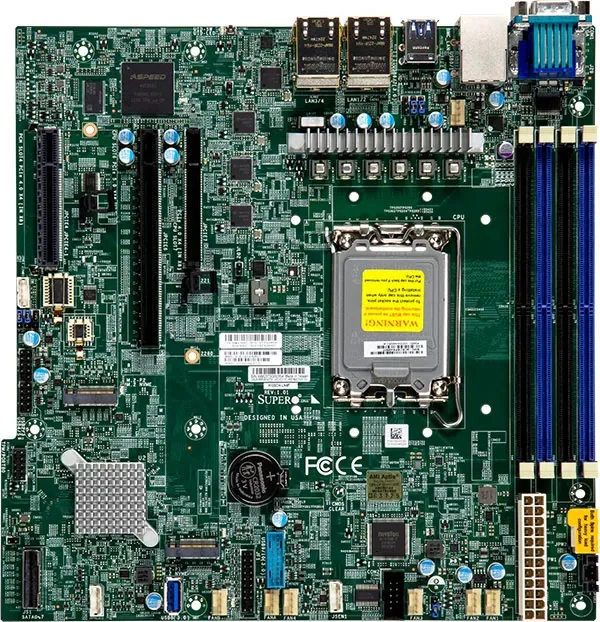

Green rectangular mATX server motherboard with silver CPU socket, four black DDR5 slots, multiple expansion slots and rear I/O ports

Supermicro

Supermicro MBD-X13SCH-LN4F-O LGA 1700 mATX server motherboard

SKU CH-NAY0-CP24D MPN MBD-X13SCH-LN4F-O

Single-socket LGA 1700 mATX board with DDR5-4400 ECC support, PCIe 5.0 x16, eight SATA ports and four gigabit LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Xeon 6300-series/ E-2400/Pretium Processor
  • Number of Processor Support1
  • CPU FeaturesUp to 95W TDP
  • North BridgeIntel C266
  • Memory Slots4 x DDR5 288-pin
  • Supports Intel Xeon 6300-series and E-2400 processors up to 95W TDP
  • Four DDR5 288-pin slots deliver up to 128GB ECC memory at 4400MHz
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed expansion
  • Eight SATA3 ports via Slimline SAS with RAID 0/1/5/10 support
  • Dual 2280/22110 M.2 slots and four 1GbE LAN ports for storage and networking

Server motherboard for single-socket Xeon builds

The Supermicro MBD-X13SCH-LN4F-O is a Micro ATX board that accepts one LGA 1700 processor from the Intel Xeon 6300-series, E-2400 or Pentium lines with a thermal design power up to 95 W. It provides four DDR5 288-pin slots supporting ECC unbuffered memory at 4400 MT/s up to 128 GB total capacity.

Suited for compact servers needing ECC memory

This board fits builders who want up to eight SATA3 drives via Slimline SAS, two M.2 2280/22110 slots and four gigabit Ethernet links in a 9.6-inch square form factor. It is not suited for dual-processor configurations, for workloads requiring more than one x16 slot, or for systems that need 10 GbE networking.

PCIe 5.0 x16 slot determines GPU

The single PCIe 5.0 x16 slot is the only full-width expansion lane; two additional PCIe 4.0 x4 lanes are routed through x8 physical slots. Choose this motherboard when the primary add-in card requires a Gen 5 x16 connection and secondary cards can operate at x4 speeds.

Highlights

  • Supports Intel Xeon 6300-series and E-2400 processors up to 95W TDP
  • Four DDR5 288-pin slots deliver up to 128GB ECC memory at 4400MHz
  • PCIe 5.0 x16 plus two PCIe 4.0 x4 slots for high-speed expansion
  • Eight SATA3 ports via Slimline SAS with RAID 0/1/5/10 support
  • Dual 2280/22110 M.2 slots and four 1GbE LAN ports for storage and networking

Specifications

BrandSUPERMICRO
ModelMBD-X13SCH-LN4F-O
CPU Socket TypeLGA 1700
CPU TypeIntel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support1
CPU FeaturesUp to 95W TDP
North BridgeIntel C266
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported128GB
ECC SupportedYes
PCI Express 5.0 x161 x PCIe 5.0 x16
PCI Express x42 x PCIe 4.0 x4 (in x8 slot)
SATA8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
SATA RAID0/1/5/10
M.2M.2 Interface: 2 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Max LAN Speed4 x 1Gbps
Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 2 x USB 2.0/1.1 / 3 x USB 3.2 Gen 1 / 4 x LAN (RJ45)
BIOS FeatureAMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight0.91 kg
Package size284 × 274 × 55 mm

Questions about this item

How often will the DDR5-4400 ECC DIMMs need to be reseated or replaced in a 24/7 server?

DDR5 ECC DIMMs are solid-state with no moving parts and are rated for the server's lifetime; reseating is only needed if a slot or module fails, which is rare under normal operation.

What thermal limit appears first when the Xeon 6300-series CPU runs at 95W TDP continuously?

The CPU's own 95W TDP ceiling is the first limit; the board's VRM and heatsink are designed for that envelope, so sustained load stays within spec unless airflow is blocked.

How loud and hot does the board get with all four 1GbE ports and both M.2 drives active all day?

The board has no onboard fans; noise and heat depend on chassis fans and CPU cooler. The C266 chipset and dual M.2 slots add minimal heat, so a well-ventilated case keeps temperatures low.
