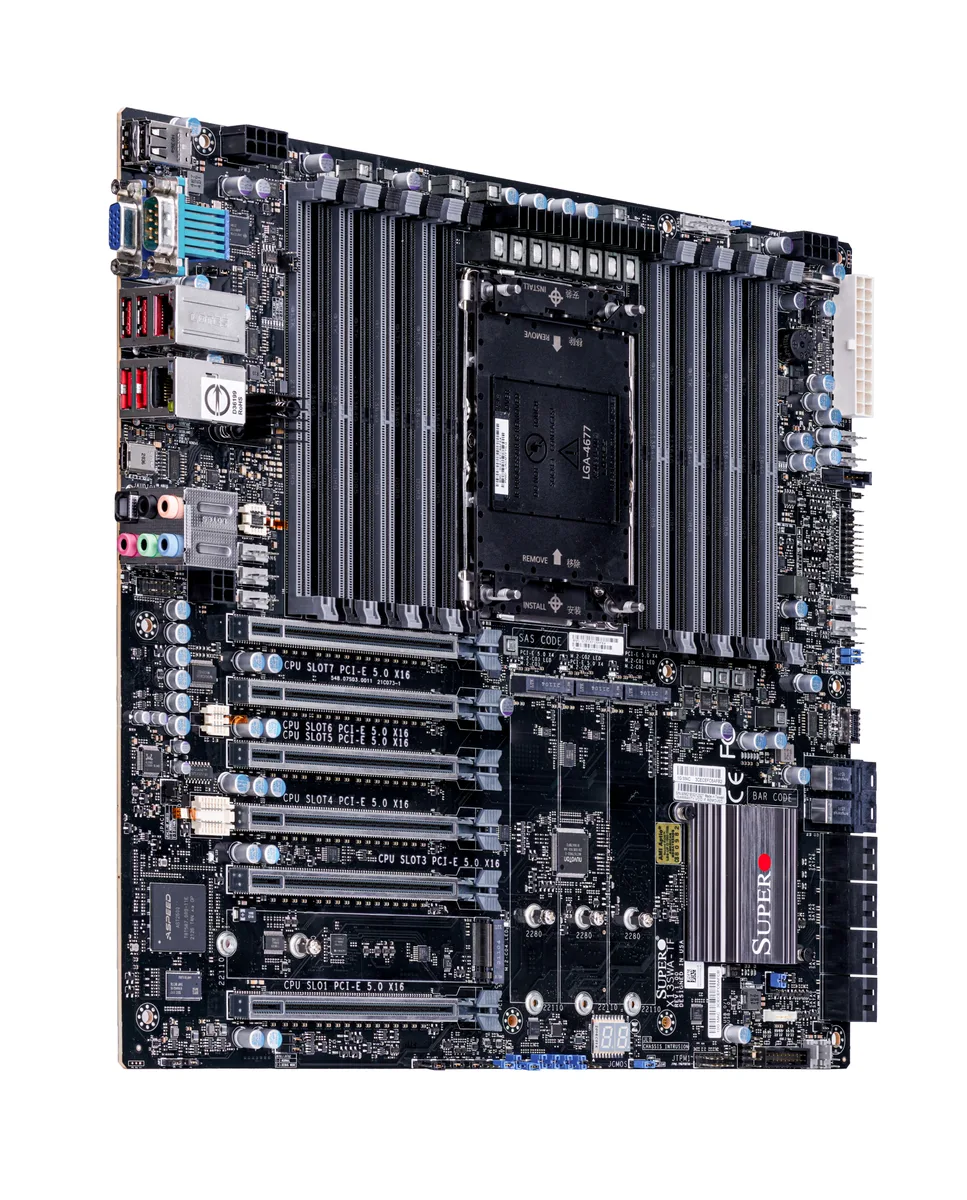

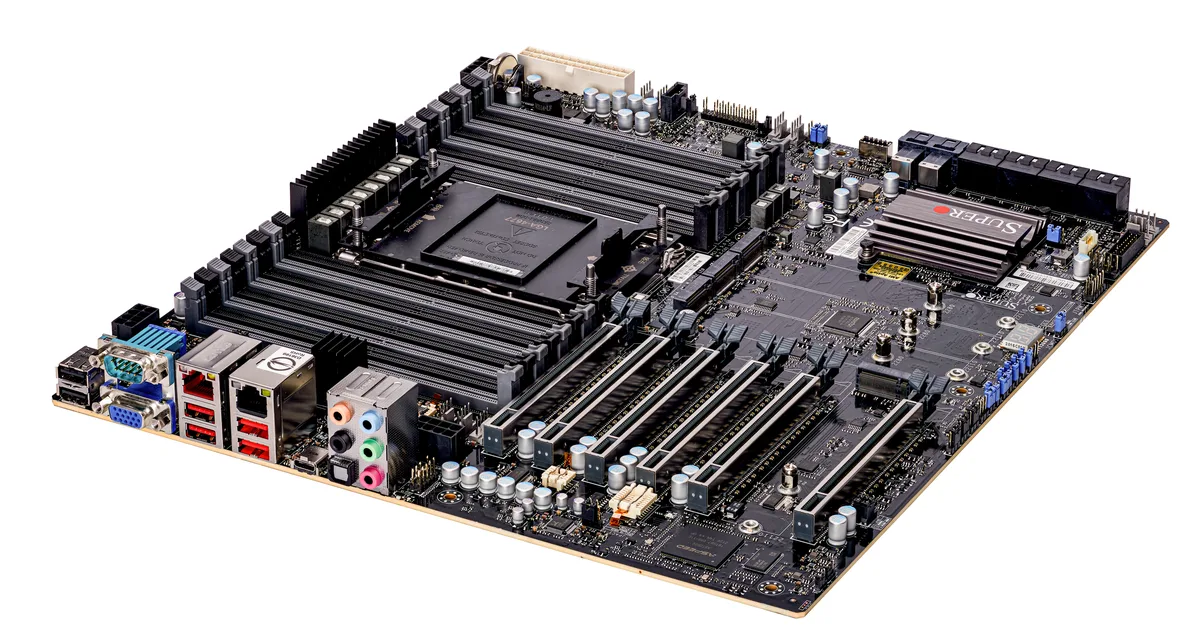

Green server motherboard, LGA 4677 socket, sixteen DDR5 slots, six full-length PCIe 5.0 x16 slots, multiple M.2 and SATA connectors

Supermicro

Supermicro MBD-X13SWA-TF-O server motherboard

SKU CH-C3MZ-BHHWJ MPN MBD-X13SWA-TF-O

Server motherboard with LGA 4677 socket supporting Intel Xeon W-series CPUs up to 60 cores and 385W TDP, 16 DDR5 slots for up to 2TB ECC memory, six PCIe 5.0 x16 slots, four M.2 PCIe 5.0 x4 slots.

  • CPU Socket TypeLGA 4677
  • CPU TypeIntel Xeon W-3400, W-2400, W-3500 and W-2500 Series Processo
  • Number of Processor Support1
  • CPU FeaturesSupports up to 385W TDP CPUs
  • North BridgeIntel W790
  • Memory Slots16 x DDR5 288-pin
  • Supports up to 60 CPU cores with 385W TDP on LGA 4677 socket
  • 16 DDR5 288-pin slots deliver up to 2TB registered ECC memory capacity
  • 6 PCIe 5.0 x16 slots enable up to 6 single-width GPU cards
  • 4 M.2 PCIe 5.0 x4 slots plus 8 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Dual LAN with 10Gbps Marvell AQC113C and 1Gbps Intel I210-AT connectivity

LGA 4677 workstation motherboard

The Supermicro MBD-X13SWA-TF-O is a single-socket server board built around the Intel W790 chipset for Xeon W-3400, W-2400, W-3500 and W-2500 processors. It delivers sixteen DDR5 288-pin slots supporting up to 2TB of ECC registered memory at 4800 MT/s. Six PCIe 5.0 x16 slots provide high-bandwidth expansion for GPUs or accelerators. Dual LAN includes 10GbE via Marvell AQC113C and 1GbE via Intel I210-AT.

Suited for memory-intensive compute.

This board targets workstations and servers that need large memory capacity, multiple high-speed GPUs and fast local storage. Builders limited to ATX cases or modest power budgets should look elsewhere, as the 385W CPU support and six full-length slots demand robust cooling and a compatible E-ATX enclosure. Systems requiring more than two onboard 10GbE ports will need add-in networking cards.

Sixteen DDR5 slots define maximum capacity

The sixteen 288-pin DDR5 slots set the hard limit of 2TB with 3DS ECC RDIMMs or 1TB with standard ECC RDIMMs on W-3400 and W-3500 CPUs. Populating all channels at 1DPC runs at 4800 MT/s; 2DPC drops to 4400 MT/s. Verify your processor series and memory kit density against these limits before purchase.

Highlights

  • Supports up to 60 CPU cores with 385W TDP on LGA 4677 socket
  • 16 DDR5 288-pin slots deliver up to 2TB registered ECC memory capacity
  • 6 PCIe 5.0 x16 slots enable up to 6 single-width GPU cards
  • 4 M.2 PCIe 5.0 x4 slots plus 8 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Dual LAN with 10Gbps Marvell AQC113C and 1Gbps Intel I210-AT connectivity

Specifications

BrandSUPERMICRO
ModelMBD-X13SWA-TF-O
CPU Socket TypeLGA 4677
CPU TypeIntel Xeon W-3400, W-2400, W-3500 and W-2500 Series Processors
Number of Processor Support1
CPU FeaturesSupports up to 385W TDP CPUs
North BridgeIntel W790
Memory Slots16 x DDR5 288-pin
Memory StandardDDR5 4800
Maximum Memory Supported2TB
ECC SupportedYes
RegisteredYes
PCI Express 5.0 x166 PCIe 5.0 x16 slots
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.24 M.2 PCIe 5.0 x4 slots (M-key 2280/22110; RAID 0/1/5/10)
LAN ChipsetMarvell AQC113C
LAN Speed10Gbps
Second LAN ChipsetIntel Ethernet Controller I210-AT
Second LAN Speed10/100/1000Mbps
Max LAN Speed10Gbps + 1Gbps

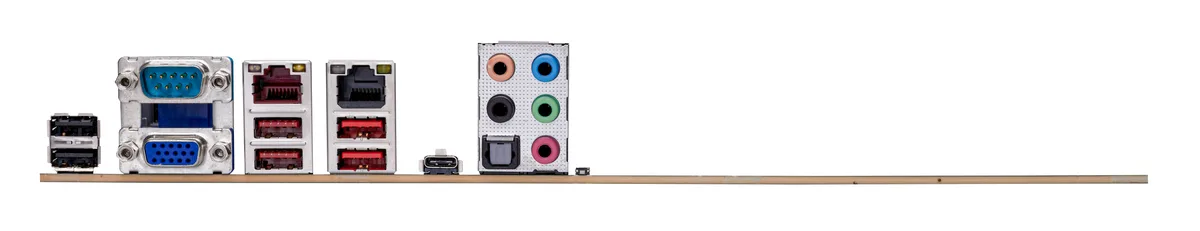

Back I/O Ports1 USB 3.2 Gen 2x2 Type-C port(s) (Rear)
2 USB 2 Type-A port(s) (Rear)
4 USB 3.2 Gen 2x1 Type-A port(s) (Rear)
1 VGA port(s)
1 COM port(s) (rear)
Realtek ALC888S 7.1 HD Audio
Onboard USB2 USB 2 port(s) (Header)
2 USB 3.2 Gen1 port(s) (Header)
1 USB 3.2 Gen2x2 port(s) (Header)
BIOS FeatureAMI 32MB SPI Flash
ACPI 6.0
Plug and Play (PnP)
SMBIOS 3.0 or later
BIOS rescue hot keys
Riser card auto-detection support
Form FactorExtended ATX
Dimensions (W x L)12.0" x 13.0"
Shipping weight2.29 kg
Package size480 × 394 × 94 mm

Questions about this item

What processor socket and series does the MBD-X13SWA-TF-O require?

The board uses an LGA 4677 socket and supports Intel Xeon W-3400, W-2400, W-3500 and W-2500 series processors up to 385W TDP.

How many PCIe 5.0 x16 slots are available when using a W-2400 series CPU?

A W-2400 or W-2500 series processor enables three PCIe 5.0 x16 slots, supporting up to three single-width, three double-width or two triple-width GPU cards.

What memory speed will the BIOS report with 16 DDR5 4800 modules installed?

With two DIMMs per channel the board runs DDR5 at 4400 MT/s; with one DIMM per channel it runs at 4800 MT/s.
