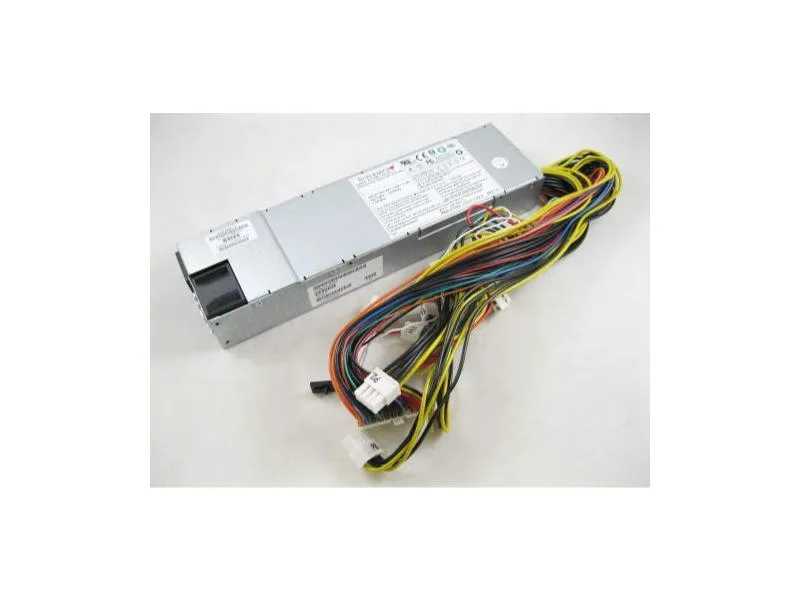

Compact 1U silver power supply with rear fan and 24-pin connector

Supermicro

Supermicro PWS-605P-1H 1U 600W 80PLUS Platinum power supply

SKU CH-VS5M-136DH

A 1U 600 W 80 PLUS Platinum power supply with active PFC and a single 24-pin connector

  • TypeProprietary Power Supply
  • 80 PLUS Platinum certification cuts energy waste
  • 600 W output with 49 A on the +12 V rail
  • Active PFC maintains stable input from 100–240 V
  • 1U form factor fits dense server chassis
  • 24-pin connector plus multiple rails powers diverse components

Proprietary 1U form factor

The Supermicro PWS-605P-1H is a proprietary 600 W power supply built for 1U server chassis. It delivers power through a single 24-pin main connector and operates on 100-240 V AC input with active PFC. This unit suits integrators replacing a failed module in compatible Supermicro systems.

80 PLUS Platinum efficiency

Certified 80 PLUS Platinum, the supply maintains high efficiency across typical server loads, reducing waste heat and lowering fan speed requirements. The +12 V rail provides up to 49 A while minor rails deliver +5 V at 18 A, +3.3 V at 15 A, -12 V at 0.5 A and +5 V standby at 3 A. AC draw is rated at 7.5 A maximum.

Retail single-unit packaging

Supplied as a new retail unit, the package contains only the power supply module itself. No mounting rails, cable kits or management software are bundled. Installers must verify mechanical and electrical compatibility with the target chassis before deployment.

Highlights

  • 80 PLUS Platinum certification cuts energy waste
  • 600 W output with 49 A on the +12 V rail
  • Active PFC maintains stable input from 100–240 V
  • 1U form factor fits dense server chassis
  • 24-pin connector plus multiple rails powers diverse components

Specifications

TypeProprietary Power Supply

Questions about this item

How do I install this 1U 600W unit and what step is often missed?

Slide the proprietary chassis into the server bay until the latch clicks, then connect the single 24pin main power cable; the step often missed is verifying the latch is fully seated before powering on.

What maintenance or replacement will this PWS-605P-1H need later?

The internal cooling fan is the only moving part; expect to replace it after several years of continuous duty, and clean dust from the intake vents annually.

Which limit appears first on the +12V rail under sustained load?

The +12V rail is rated at 49A; sustained draw near that level will hit the rail’s current limit before the total 600W capacity is reached.
