Supermicro

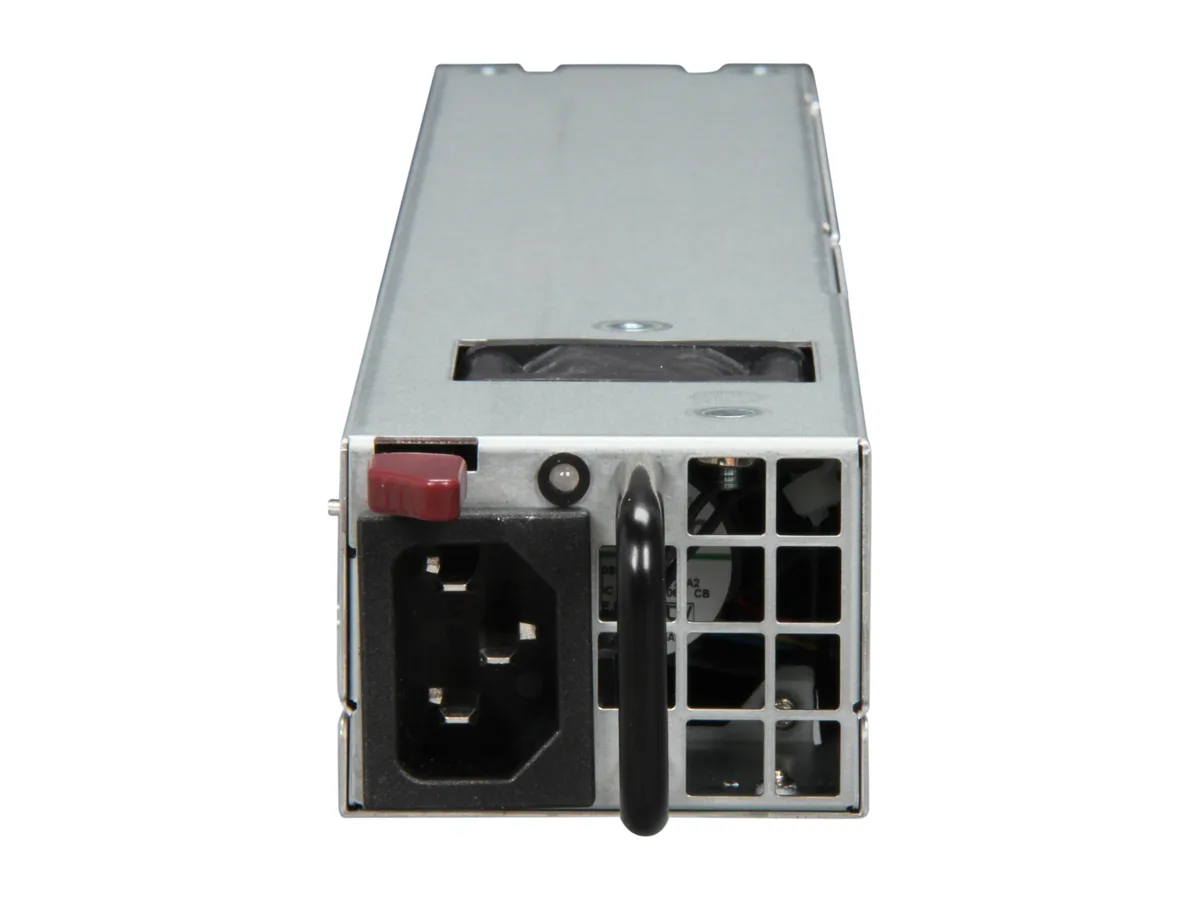

Supermicro PWS-704P-1R 700W server power supply
A 700 W redundant 1U server power supply with 80PLUS Gold efficiency, delivering up to 62 A on the 12 V rail and 3 A on 5 V standby
- TypeConsumer Electronics
- Maximum Power700W
- Output Current+12V@58/62A, +5VSB@3A
- Features80PLUS Gold
- 700 W continuous power supports dense 1U server deployments
- 80 PLUS Gold efficiency lowers operating cost and heat output
- +12 V rail delivers 58 A or 62 A for high-current components
- +5 V standby rail supplies 3 A for management functions
- Redundant 1U form factor enables hot-swap replacement without downtime
700W redundant server power supply
The Supermicro PWS-704P-1R delivers 700 watts in a 1U redundant form factor for rack-mount servers. It is built for operators who need continuous uptime and hot-swap replacement in enterprise environments.
Hot-swap installation with single-slot fit

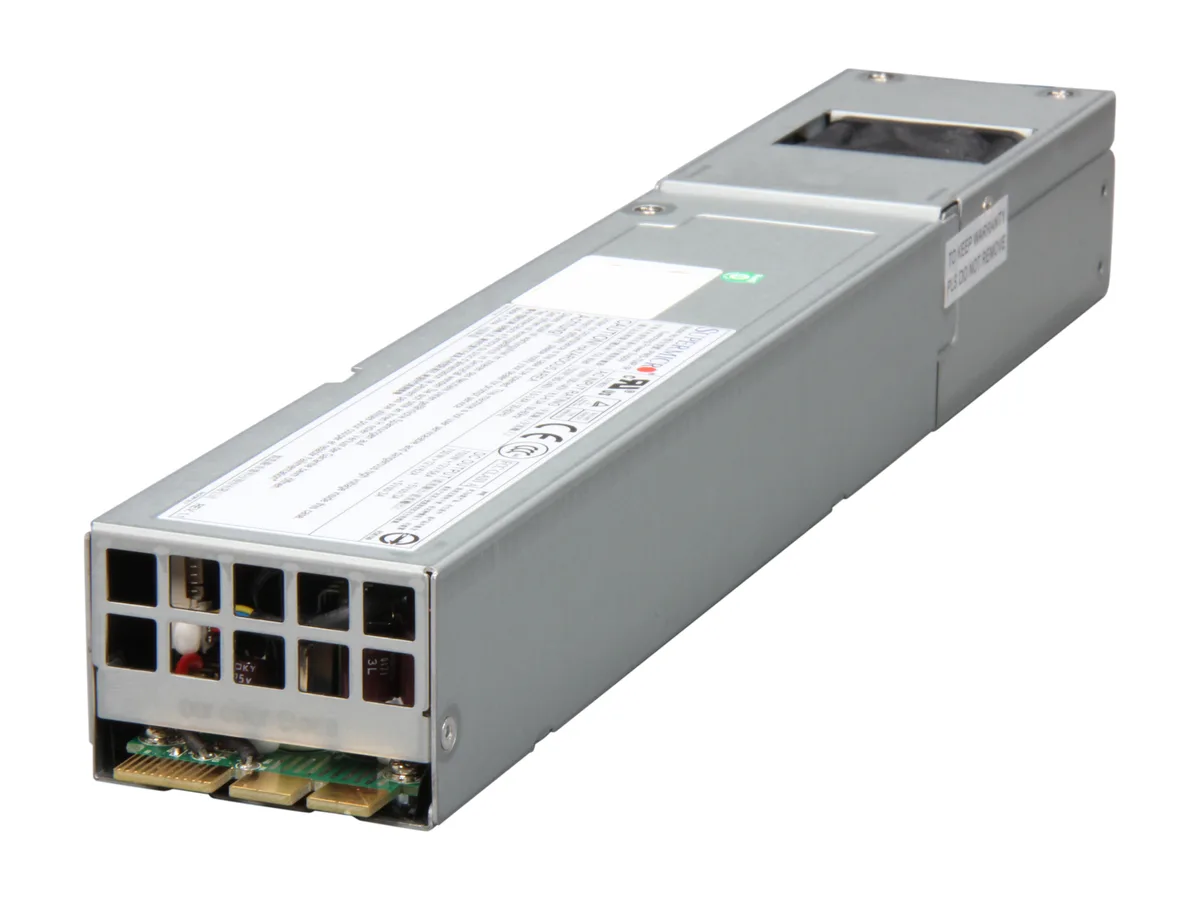

The unit slides into a compatible 1U bay and locks with a thumb screw, so no tools are required for a swap. Misalignment of the rear connector is the common issue; the supply must seat fully before the screw engages.
12V rail limited to 58A or 62A

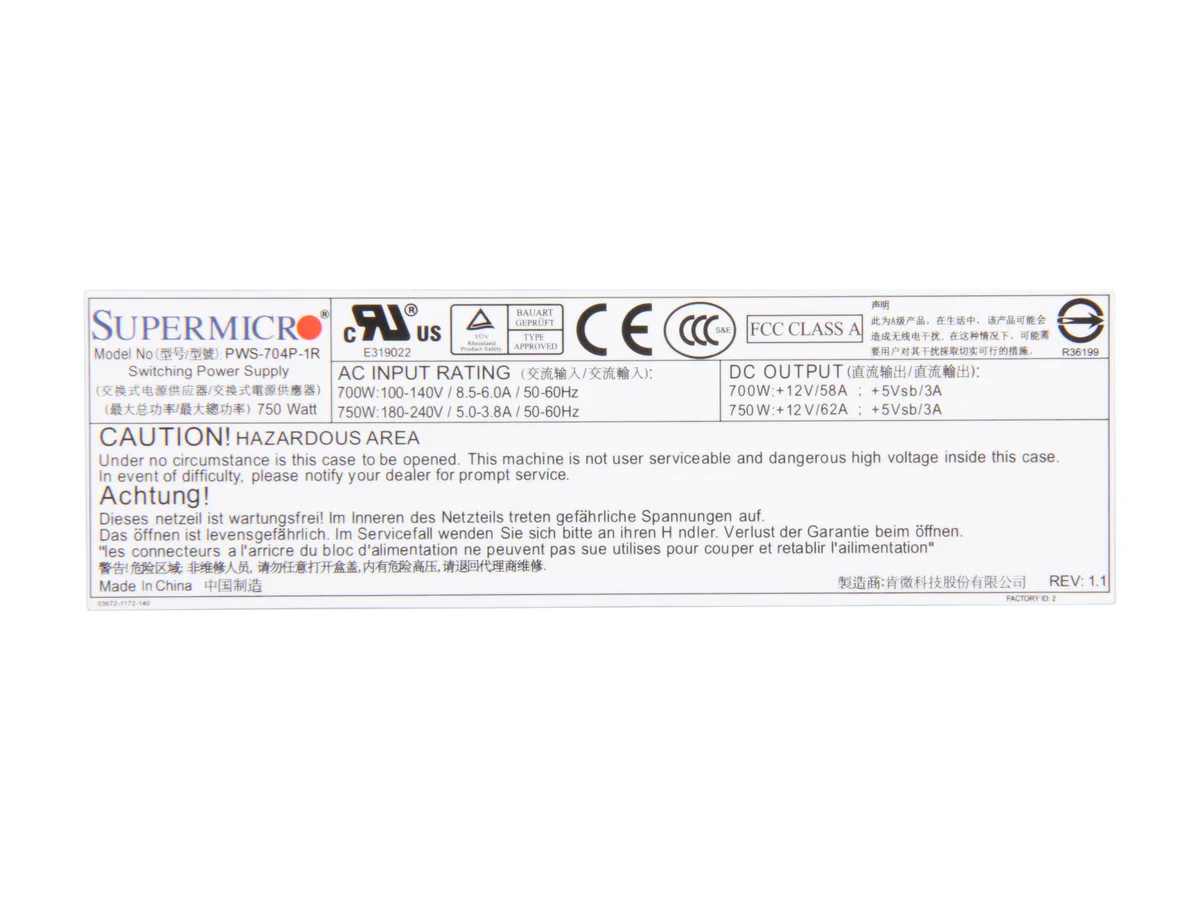

The +12V output is rated at 58 amps or 62 amps depending on input voltage, which caps the power available to modern CPUs and GPUs. The 80 PLUS Gold rating improves efficiency but does not raise the current ceiling beyond the stated figures.
Highlights
- 700 W continuous power supports dense 1U server deployments
- 80 PLUS Gold efficiency lowers operating cost and heat output
- +12 V rail delivers 58 A or 62 A for high-current components
- +5 V standby rail supplies 3 A for management functions
- Redundant 1U form factor enables hot-swap replacement without downtime
Specifications
| Brand | SuperMicro |
|---|---|
| Model | PWS-704P-1R |
| Type | Consumer Electronics |
| Maximum Power | 700W |
| Output Current | +12V@58/62A, +5VSB@3A |
| Features | 80PLUS Gold |
| Shipping weight | 2.27 kg |
| Package size | 584 × 406 × 127 mm |
Questions about this item
How can I verify the 700W supply is running correctly after installation?
Check the server management interface for +12V rails reading 58A or 62A and +5VSB at 3A, and confirm the 80PLUS Gold efficiency rating is reported.

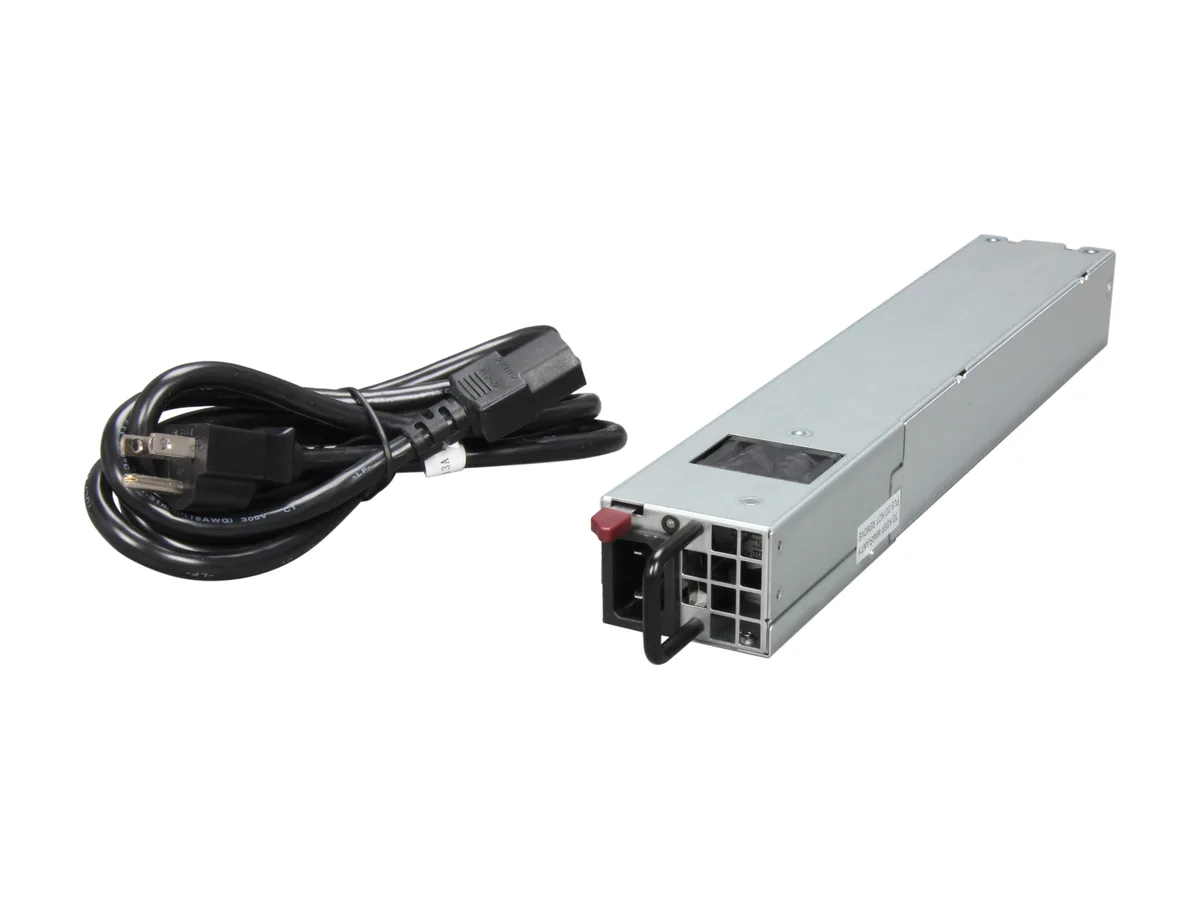

What comes with the PWS-704P-1R and what must I source separately?
The unit includes the 1U redundant power supply module; a compatible Supermicro chassis, power cables and rack rails are not included.
Which capacity should I choose for a 1U redundant configuration?
Select the 700W PWS-704P-1R model; it is the only wattage offered for this 1U redundant form factor.
