Supermicro

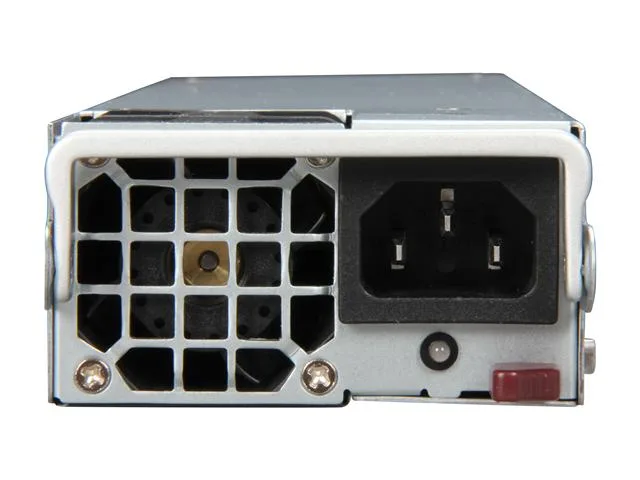

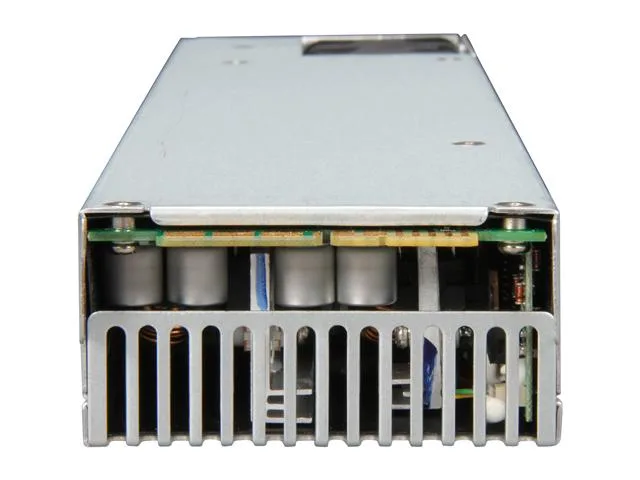

Supermicro PWS-801-1R 800W server power supply

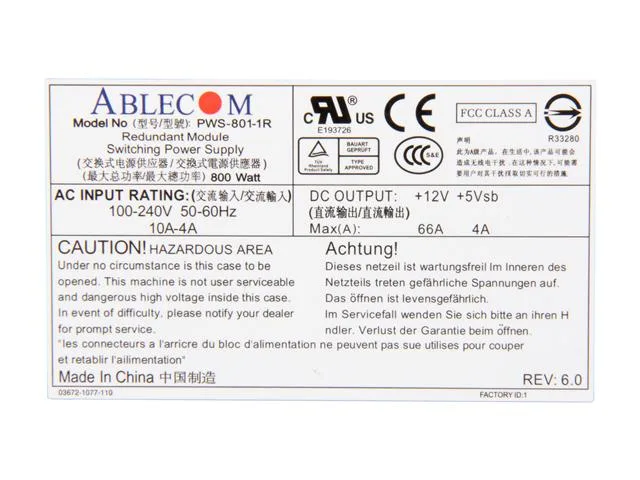

800 W redundant server power supply delivering 12 V at 66 A and 5 V standby at 4 A in a 13.58" x 2.99" x 1.58" form factor
- TypeConsumer Electronics
- Maximum Power800W
- Output Current+12V@66A, +5VSB@4A
- Dimensions13.58" x 2.99" x 1.58"
- 800 W maximum power supports demanding server workloads
- +12 V rail delivers 66 A for high-current components
- Redundant design protects against single-point power failure
- Compact 13.58" x 2.99" x 1.58" form factor fits dense chassis
- 5 V standby output supplies 4 A for management functions
Server-grade 800 W redundant unit
The Supermicro PWS-801-1R is an 800 W redundant power supply built for rackmount servers. It fits 1U and larger chassis that accept the 13.58" x 2.99" x 1.58" form factor and need hot-swap capability.
Single +12 V rail at 66 A
The unit delivers its full 800 W through a single +12 V rail rated at 66 A with a 5 V standby output of 4 A. All DC power comes from that one rail, so the total 12 V current budget is the hard limit for every component in the system.
Not for non-redundant or lower-wattage builds
Buyers who need a stand-alone supply without hot-swap redundancy or who are building a system that draws less than 800 W will not use the redundant architecture this model provides.
Highlights
- 800 W maximum power supports demanding server workloads
- +12 V rail delivers 66 A for high-current components
- Redundant design protects against single-point power failure
- Compact 13.58" x 2.99" x 1.58" form factor fits dense chassis
- 5 V standby output supplies 4 A for management functions
Specifications
| Brand | SuperMicro |
|---|---|
| Model | PWS-801-1R |
| Type | Consumer Electronics |
| Maximum Power | 800W |
| Output Current | +12V@66A, +5VSB@4A |
| Dimensions | 13.58" x 2.99" x 1.58" |
| Shipping weight | 2.06 kg |
| Package size | 434 × 180 × 117 mm |
Questions about this item
Should I choose the 800W model or look for a different capacity?
The PWS-801-1R delivers 800W total output with +12V at 66A and +5VSB at 4A, matching Supermicro redundant server chassis designed for this wattage.
What does the 800W rating mean once installed in a server?
It provides up to 800W continuous power, with the +12V rail supplying 66A for CPUs and GPUs while +5VSB delivers 4A for management controllers.
Which power interface standard does this supply use and what does it limit?
It uses the SSI-EPS redundant form factor with standard 24-pin and 8-pin EPS connectors, limiting use to compatible Supermicro server backplanes.
