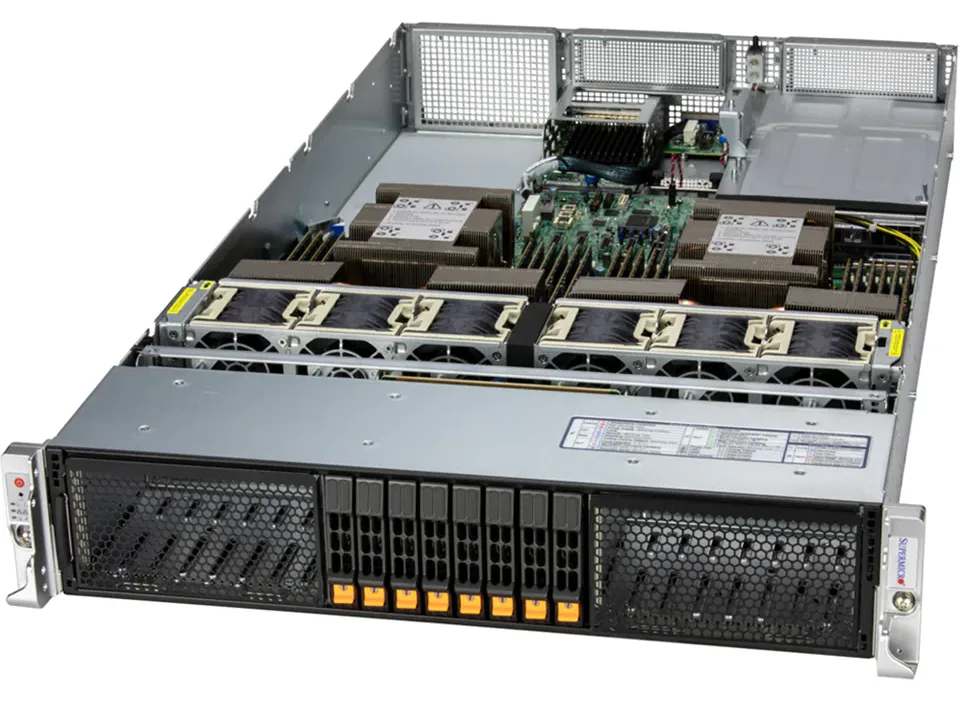

Silver 2U rack server chassis with eight 2.5 inch drive bays and front status LEDs

Supermicro

Supermicro SYS-222HA-TN 2U rack server

SKU CH-JE19-4FZQP MPN SYS-222HA-TN

2U rack server for dual Intel Xeon 6900 series CPUs, 24 DDR5 slots up to 6 TB, 8 hot-swap 2.5″ NVMe/SAS/SATA bays, and 4 PCIe 5.0 x16 GPU slots

  • TypeRack
  • Rack Height2U
  • LEDsHDD activity LAN1 activity Power status System information
  • SecurityHardware Trusted Platform Module (TPM) 2.0 Silicon Root of T
  • CPU TypeIntel Xeon 6900 series processors with P-cores
  • CPU SocketSocket BR (LGA-7529)
  • Dual Xeon 6900-series CPUs deliver up to 128 cores and 256 threads per socket
  • 24 DDR5 slots support up to 6 TB at 6400 MT/s RDIMM or 8800 MT/s MRDIMM
  • 8 hot-swap 2.5" bays accept NVMe, SAS and SATA drives with RAID 0/1/5/10
  • Four PCIe 5.0 x16 slots enable double-width GPU or accelerator cards
  • TPM 2.0 and Silicon Root of Trust meet NIST 800-193 hardware security requirements

Dual-Socket Xeon 6900 Platform

The Supermicro SYS-222HA-TN is a 2U rack server designed for dual Intel Xeon 6900 series processors with P-cores, supporting up to 128 cores and 256 threads per CPU. It targets organisations building high-density compute clusters for AI training, HPC workloads, or large-scale virtualisation where maximum core count and memory bandwidth are primary requirements.

PCIe 5.0 Expansion and Storage Flexibility

Four PCIe 5.0 x16 slots accept up to four double-width GPU or accelerator cards with CPU-to-GPU interconnect, while two AIOM slots add OCP NIC 3.0 networking. Eight hot-swap 2.5-inch bays handle NVMe, SAS, or SATA drives with RAID 0/1/5/10 support, and two internal M.2 NVMe slots provide boot or cache capacity without consuming front bays.

DDR5 Memory Constraints

Twenty-four DDR5 slots deliver up to 6 TB at 6400 MT/s with RDIMMs or 6 TB at 8800 MT/s with MRDIMMs in a 1 DPC configuration; mixing RDIMM and MRDIMM types is not supported. The platform requires Xeon 6900 series CPUs in Socket BR (LGA-7529) and does not accommodate earlier Xeon generations or non-P-core variants.

Highlights

  • Dual Xeon 6900-series CPUs deliver up to 128 cores and 256 threads per socket
  • 24 DDR5 slots support up to 6 TB at 6400 MT/s RDIMM or 8800 MT/s MRDIMM
  • 8 hot-swap 2.5" bays accept NVMe, SAS and SATA drives with RAID 0/1/5/10
  • Four PCIe 5.0 x16 slots enable double-width GPU or accelerator cards
  • TPM 2.0 and Silicon Root of Trust meet NIST 800-193 hardware security requirements

Specifications

BrandSUPERMICRO
SeriesSuperServer
ModelSYS-222HA-TN
TypeRack
Rack Height2U
LEDsHDD activity
LAN1 activity
Power status
System information
SecurityHardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
CPU TypeIntel Xeon 6900 series processors with P-cores
CPU SocketSocket BR (LGA-7529)
CPU FeaturesUp to 128C/256T; Up to 504MB Cache per CPU
Supports up to 500W TDP CPUs (Air Cooled)
Supports up to 500W TDP CPUs (Liquid Cooled)
# of Processors Installed0
MAX Processors2
Memory TypeDDR5
Max Memory Capacity6TB
Memory FeaturesMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Number of Memory Slots24
Hard Drive (Installed)No Hard Drive
SSD (Installed)No
Raid LevelRAID 0/1/5/10
GPU TypeUp to 4 double-width or 4 single-width GPUs
PCIe 5.0 x16 CPU-to-GPU Interconnect
LAN Ports1 x RJ45 1 GbE Dedicated BMC LAN port
Expansion SlotsOption A
4 PCIe 5.0 x16 FH/10.5"L double-width slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option B
8 PCIe 5.0 x8 (in x16) FH/10.5"L slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Expansion BaysDefault: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 16 bays
16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option B: Total 24 bays
24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Other ports2 x USB 3.0 (rear)
1 x VGA
Operating SystemNo
TemperatureOperating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions3.5" x 17.2" x 31.74"
Weight45 lbs.
Shipping weight34.02 kg
Package size1100 × 672 × 253 mm

Questions about this item

Will the hot-swap drive backplane or the M.2 slots need replacement during the server's lifespan?

The backplane supports 2.5-inch NVMe, SAS and SATA drives and two internal M.2 NVMe slots; both are passive and do not have a scheduled replacement interval.

What is the first limit reached when both Intel Xeon 6900 series processors run at their 500 W TDP continuously?

The cooling solution must dissipate up to 500 W per CPU, so thermal capacity of the chosen air or liquid cooler becomes the limiting factor.

How loud are the fans and how much power does the 2U chassis draw when fully populated with GPUs and storage all day?

Four double-width GPUs, up to 24 DDR5 DIMMs and 8 hot-swap drives plus dual 500 W CPUs push power draw toward the supply rating; fan speed ramps with inlet temperature to keep components within spec.
