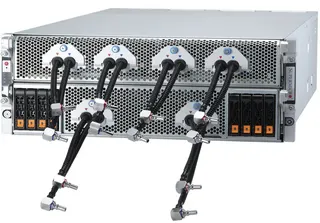

Silver 4U rack server chassis with front drive bays and network ports

Supermicro

Supermicro SYS-421GE-TNHR2-LCC-G1 4U rack server dual Xeon 8570 3TB DDR5 2x 960GB NVMe 8x H200

SKU CH-TFR9-4G437 MPN SYS-421GE-TNHR2-LCC-G1

4U rack server with dual 56-core Xeon 8570 CPUs, 3TB DDR5-5600, 2x 960GB NVMe and eight H200 GPUs for AI training

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height4U
  • LEDsNetwork activity LEDs System information (overheat/UID) UID
  • Hot-swap Fans4 Fan 8cm Fan(s)
  • CPU TypeIntel Xeon Platinum
  • Dual Xeon 8570 processors deliver 112 cores for massive parallel workloads

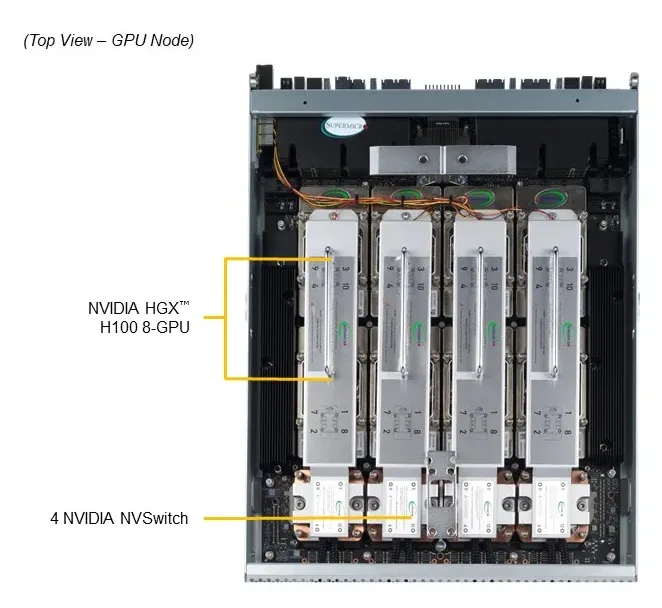

  • NVIDIA HGX H200 8-GPU with 141GB memory each accelerates AI training
  • 3TB DDR5-5600 ECC memory supports large-model inference and HPC
  • 2x 960GB M.2 NVMe SSDs provide fast boot and OS storage
  • 8 single 400G NDR OSFP plus 1 dual 200G NDR200 QSFP112 enable high-speed cluster fabric

Dual Xeon 8570 AI server with eight H200 GPUs

This 4U rack server pairs two Intel Xeon Platinum 8570 processors, each with 56 cores at 2.10 GHz, with an NVIDIA HGX H200 platform containing eight GPUs. It ships with 3 TB of DDR5-5600 memory across 32 slots and two 960 GB M.2 NVMe SSDs for the operating system. The system targets large-scale AI training and high-performance computing workloads.

Suited for AI training clusters needing dense GPU

The eight H200 GPUs provide 141 GB of memory each for large-model training. Networking includes eight single 400 G NDR/ETH OSFP ports and one dual 200 G NDR200/ETH QSFP112 port for high-speed cluster interconnects. Buyers who need only CPU compute, fewer GPUs, or slower interconnects should consider smaller configurations.

Requires 4U rack space and high-power infrastructure

Eight 5250 W titanium-level power supplies deliver redundant power for the full GPU complement. Four hot-swap 8 cm fans cool the chassis, which operates between 10 °C and 35 °C. Eight front 2.5-inch NVMe bays and two M.2 slots remain available for additional storage expansion.

Highlights

  • Dual Xeon 8570 processors deliver 112 cores for massive parallel workloads
  • NVIDIA HGX H200 8-GPU with 141GB memory each accelerates AI training
  • 3TB DDR5-5600 ECC memory supports large-model inference and HPC
  • 2x 960GB M.2 NVMe SSDs provide fast boot and OS storage
  • 8 single 400G NDR OSFP plus 1 dual 200G NDR200 QSFP112 enable high-speed cluster fabric

Specifications

BrandSUPERMICRO
ModelSYS-421GE-TNHR2-LCC-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height4U
LEDsNetwork activity LEDs
System information (overheat/UID)
UID
Hot-swap Fans4 Fan 8cm Fan(s)
CPU TypeIntel Xeon Platinum
CPU Speed8570 (2.10 GHz)
Number of CPU Cores56-Core Processor
Cache Memory300 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size3TB
Memory TypeDDR5 5600
Max Memory Capacity8TB
Memory FeaturesMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

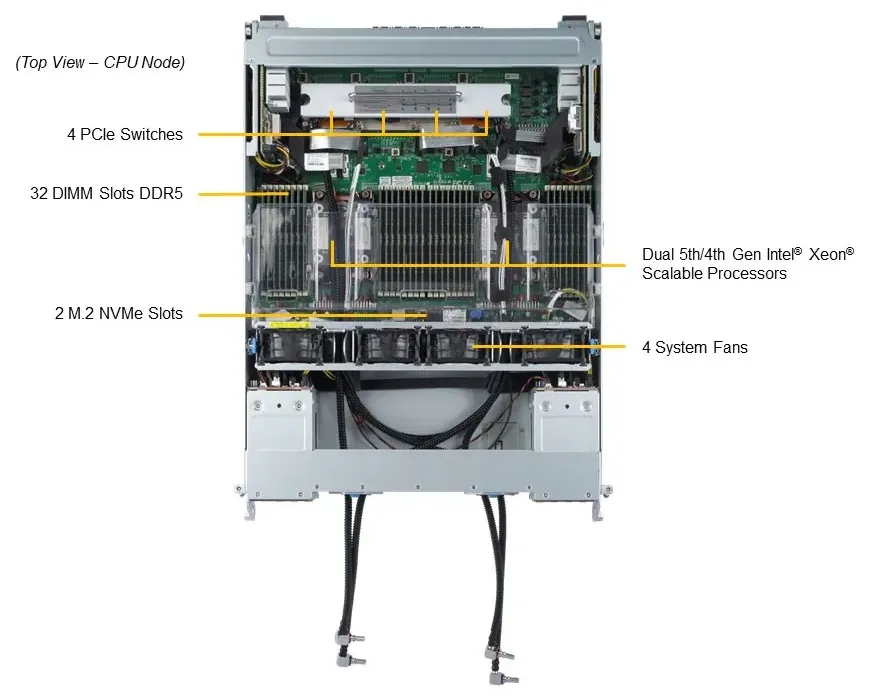

Number of Memory Slots32
SSD (Installed)2 x 960GB M.2 NVMe SSD
Servers_Graphic Installed1
GPU TypeNVIDIA HGX 8 H200 141GB SXM5
Ethernet Controller8 x Single 400G NDR/ETH OSFP
1 x Dual 200G NDR200/ETH QSFP112

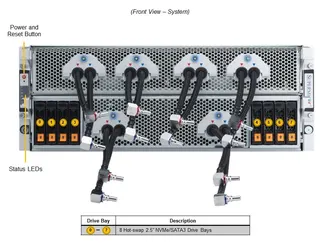

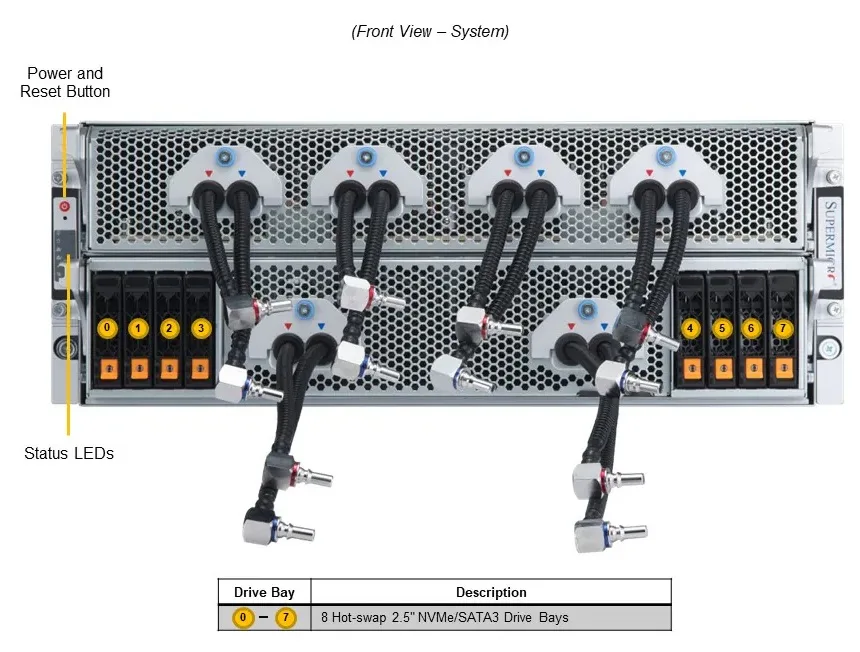

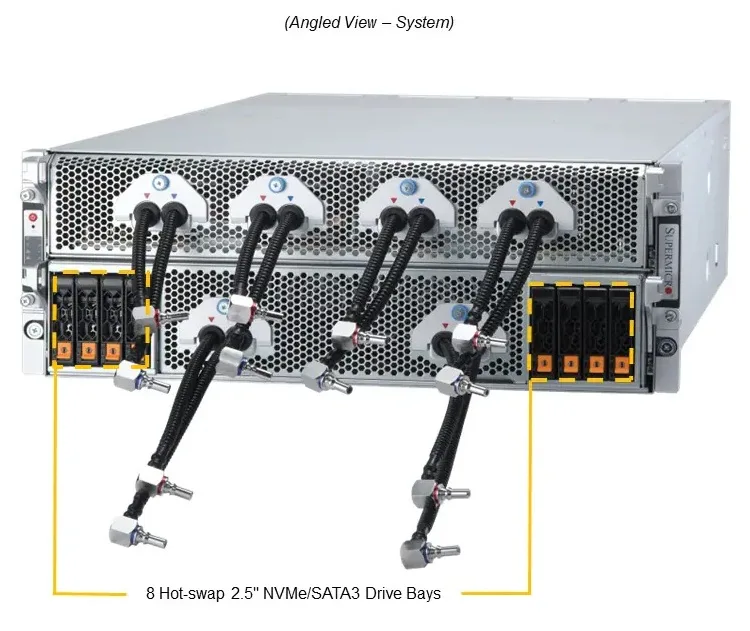

Expansion Bays8 front hot-swap 2.5" NVMe drive bays
2 M.2 NVMe slots (M-key)
Power Characteristics8 x 3000W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions6.85" x 17.6" x 35.25"
Weight176 lbs.
Shipping weight97.98 kg
Package size1280 × 729 × 410 mm

Questions about this item

What power infrastructure is required for the four 5250 W Titanium power supplies?

The system ships with four 5250 W Titanium-level power supplies; plan for matching PDU outlets and circuit capacity to support the combined draw.

Will the eight H200 GPUs share the PCIe lanes with the front 2.5-inch NVMe bays?

The eight H200 GPUs use SXM5 sockets on the HGX baseboard, while the eight front hot-swap 2.5-inch NVMe bays connect through separate CPU-attached lanes, so they do not contend for the same PCIe resources.

How can I confirm the 3 TB of DDR5-5600 is running at the rated speed after installation?

Check the BIOS memory information page or run a tool such as dmidecode; both will show each of the 32 RDIMM slots populated at 5600 MT/s when the system is configured for 1 DPC operation.
