1U rack server, matte black metal chassis, four front drive bays, dual redundant power supplies at rear

Supermicro

Supermicro SYS-5019C-WR 1U rack server E-2124 128GB DDR4 9361-8i 2x500W

SKU CH-54HQ-GZ5SR

A 1U rack server with a Xeon E-2124, 128GB DDR4, MegaRAID 9361-8i controller and redundant 500W platinum power supplies

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • 1U rack form factor saves data-centre space
  • Intel Xeon E-2124 3.3 GHz 4-core CPU with 4.5 GHz turbo
  • 128 GB DDR4-2666 ECC memory for error-correcting reliability
  • MegaRAID 9361-8i 8-port SAS 12 Gb/s RAID controller with 1 GB cache
  • Redundant 500 W 80 Plus Platinum power supplies with IPMI 2.0 remote management

1U rack server for single-socket workloads

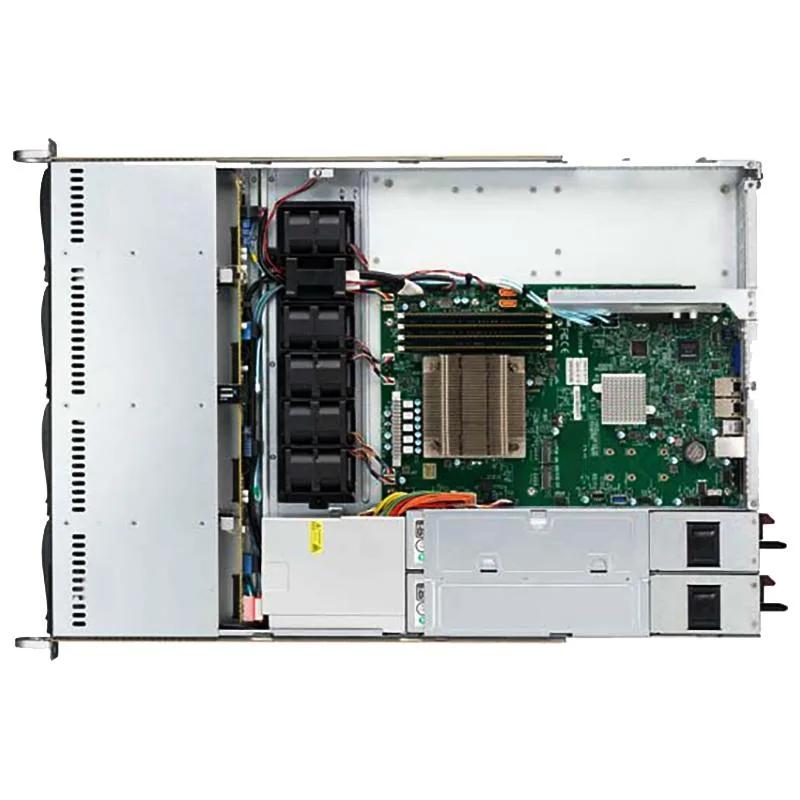

This Supermicro SYS-5019C-WR is a new 1U rackmount server system built around a single Intel Xeon E-2124 processor. It ships with 128GB of DDR4-2666 ECC memory installed across four DIMM slots. The chassis provides four hot-swap 3.5-inch drive bays and dual M.2 interfaces for storage flexibility. A dedicated IPMI 2.0 port enables remote KVM-over-LAN and virtual media management.

Sustained load with redundant platinum power

Dual redundant 500W power supplies rated at 96 percent efficiency deliver continuous power without interruption during a module failure. The 1U cooling design is optimised for steady airflow across the CPU and the LSI MegaRAID 9361-8i controller under prolonged demand. ECC memory corrects single-bit errors in real time to maintain data integrity during extended compute tasks. IPMI 2.0 monitoring allows administrators to track thermal and voltage trends remotely.

Eight-port SAS controller with battery-backed cache

The installed MegaRAID 9361-8i provides eight internal SAS 12Gb/s ports with 1GB cache and a battery backup unit. This controller determines the RAID level and drive count the system can support directly. Buyers needing more than eight SAS or SATA devices must add an additional HBA or RAID card. The single LGA-1151 socket limits the platform to one Xeon E-2100 or E-2200 series CPU.

Highlights

  • 1U rack form factor saves data-centre space
  • Intel Xeon E-2124 3.3 GHz 4-core CPU with 4.5 GHz turbo
  • 128 GB DDR4-2666 ECC memory for error-correcting reliability
  • MegaRAID 9361-8i 8-port SAS 12 Gb/s RAID controller with 1 GB cache
  • Redundant 500 W 80 Plus Platinum power supplies with IPMI 2.0 remote management

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.30 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE-2124
MAX Processors0
Chipset0
Installed Memory Size128GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

How loud and hot does the dual 500W 96% Platinum power supply run when the server operates continuously?

The redundant 500W supplies are 80 Plus Platinum rated at 96% efficiency, reducing waste heat and fan speed during all-day operation.

Which drives and memory must I supply because they are not included with the SYS-5019C-WR?

The unit ships with 128GB DDR4-2666 ECC UDIMM and a MegaRAID 9361-8i controller, but the four 3.5" hot-swap bays and dual M.2 slots arrive empty.

Will my existing SATA SSDs and SAS HDDs work with the onboard 9361-8i RAID controller?

Yes, the 9361-8i supports 12Gb/s SAS and SATA drives and offers RAID 0, 1, 5, 10 with 1GB cache and battery backup.
