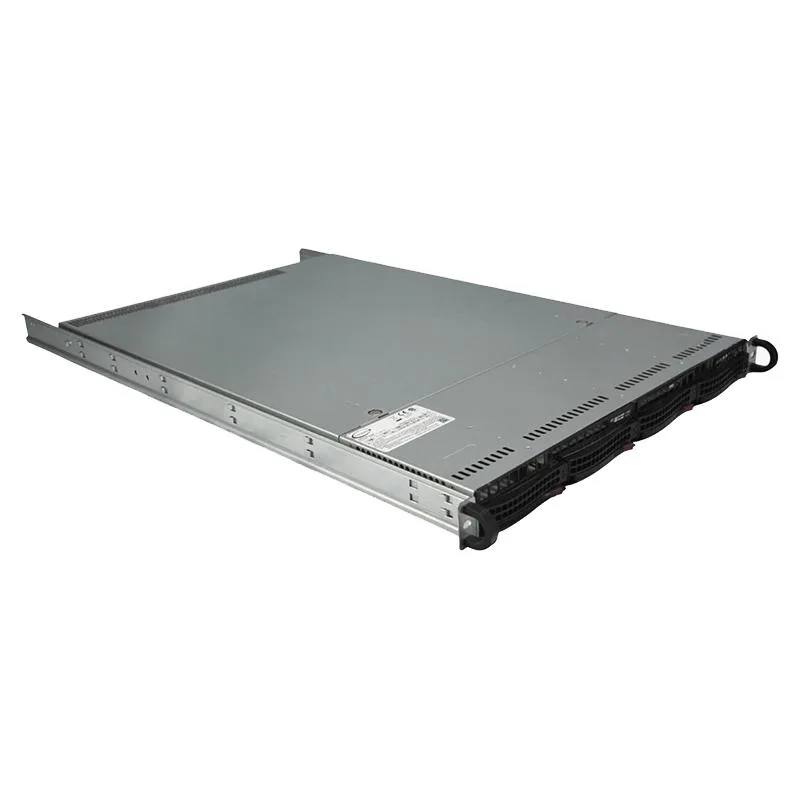

Silver 1U rack server with four front 3.5-inch drive bays and dual rear power supplies

Supermicro

Supermicro SYS-5019C-WR 1U rack server E-2124 16GB DDR4 9361-8i 2x500W

SKU CH-CMX9-8C30W

1U rack server with Xeon E-2124, 16GB DDR4, MegaRAID 9361-8i, four 3.5-inch bays and redundant 500W supplies

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • Enterprise-grade compute with Intel Xeon E-2124 4-core at 3.3 GHz base and 4.5 GHz turbo
  • Reliable 16 GB DDR4-2666 ECC memory across two 8 GB modules for error-correcting performance
  • Hardware RAID via MegaRAID 9361-8i with 1 GB cache and battery backup for data protection
  • Remote management through IPMI 2.0 with dedicated LAN, virtual media and KVM-over-LAN
  • Efficient redundant power from dual 500 W 80 Plus Platinum supplies with 96 % efficiency

Server platform

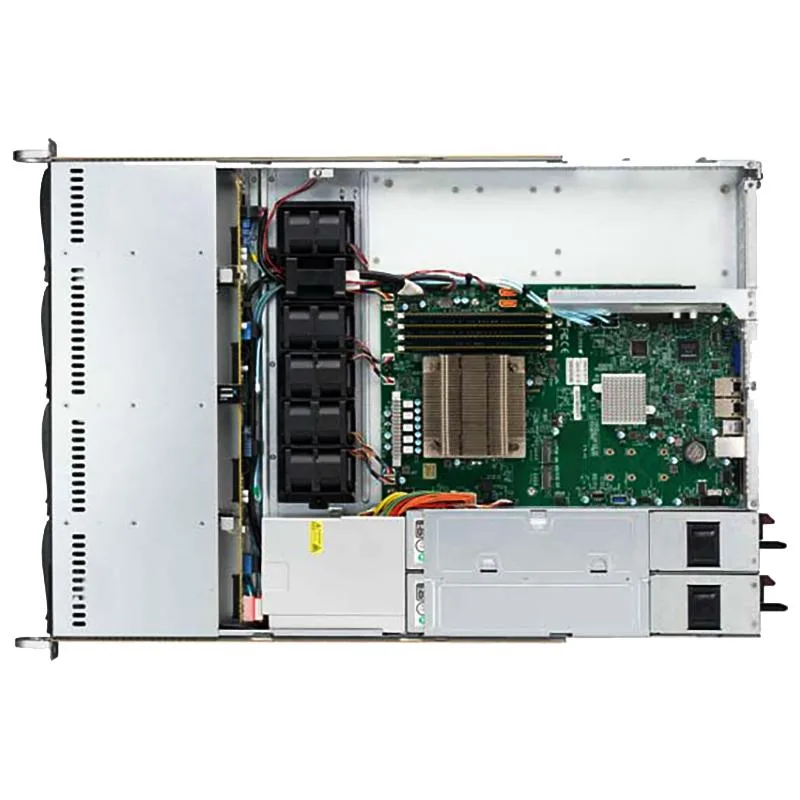

The Supermicro SYS-5019C-WR is a 1U rackmount server built around a single Intel Xeon E-2124 processor running at 3.3 GHz with 4.5 GHz turbo. It ships with 16 GB of DDR4-2666 ECC memory and an LSI MegaRAID 9361-8i controller with 1 GB cache. Dual 500 W Platinum power supplies provide redundancy.

Target fit

This unit suits buyers who need a compact, redundant 1U chassis with hardware RAID and IPMI 2.0 remote management. It is not for operators who require more than four 3.5-inch drive bays, dual-socket compute density, or front bezel and rails included in the box.

Deciding spec

The installed MegaRAID 9361-8i controller delivers eight SAS/SATA ports at 12 Gb/s with battery-backed cache. Confirm that eight ports and RAID 0, 1, 5, 10 support match your storage topology before purchase.

Highlights

  • Enterprise-grade compute with Intel Xeon E-2124 4-core at 3.3 GHz base and 4.5 GHz turbo
  • Reliable 16 GB DDR4-2666 ECC memory across two 8 GB modules for error-correcting performance
  • Hardware RAID via MegaRAID 9361-8i with 1 GB cache and battery backup for data protection
  • Remote management through IPMI 2.0 with dedicated LAN, virtual media and KVM-over-LAN
  • Efficient redundant power from dual 500 W 80 Plus Platinum supplies with 96 % efficiency

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.30 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE-2124
MAX Processors0
Chipset0
Installed Memory Size16GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

Does the 1U rackmount chassis include mounting rails for a standard 19-inch cabinet?

The front bezel and rack mount rails are not included, so you must supply your own 1U sliding or fixed rails.

How do I install the LSI MegaRAID 9361-8i controller and where do the two included 3.5-inch drive trays fit?

Seat the 9361-8i in the PCIe 3.0 x16 or x8 slot, connect its SAS cables to the backplane, then slide the two trays into any of the four front hot-swap bays.

When will the RAID controller cache battery need replacement and how do I expand memory beyond the installed 16 GB?

The 9361-8i uses a 1 GB cache with battery; plan to replace the battery module every few years. Four DDR4 DIMM slots support up to 128 GB total.
