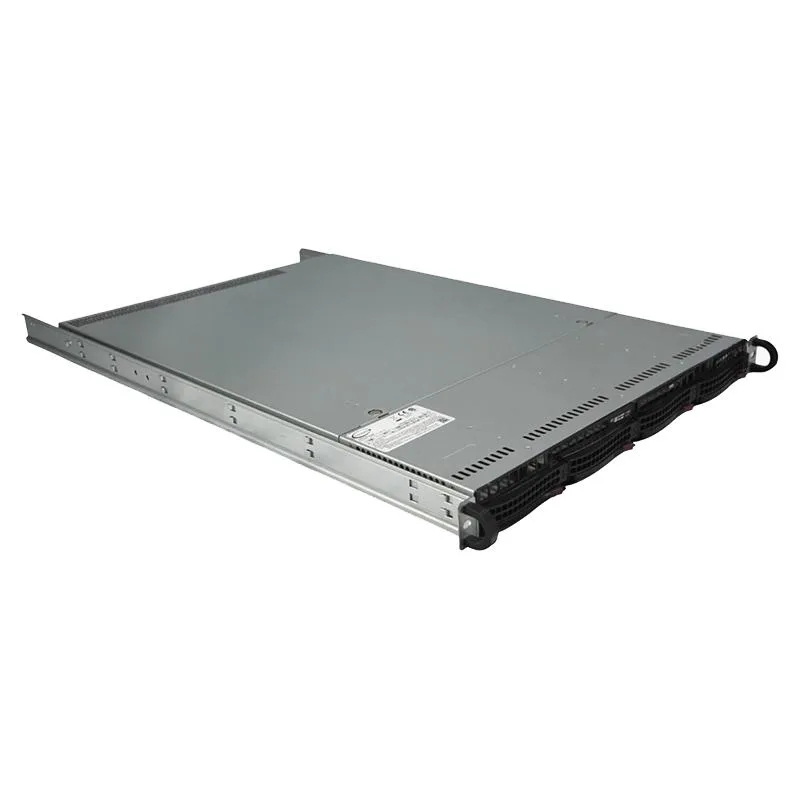

Silver 1U rack server chassis with four front 3.5-inch drive bays and redundant power supplies

Supermicro

Supermicro SYS-5019C-WR 1U rack server E-2146G 128GB 9361-8i

SKU CH-EV8G-4V2RK

1U rack server with Xeon E-2146G, 128GB DDR4 ECC, MegaRAID 9361-8i controller and four hot-swap 3.5" bays

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • 6-core Xeon E-2146G runs at 3.5 GHz with 4.5 GHz turbo
  • 128 GB DDR4-2666 ECC memory fills all four DIMM slots
  • MegaRAID 9361-8i provides 8-port SAS 12 Gb/s RAID with 1 GB cache
  • Four hot-swap 3.5-inch bays plus dual M.2 slots for storage flexibility
  • Redundant 500 W 80 Plus Platinum power supplies deliver 96 % efficiency

1U rack server with Xeon E-2146G

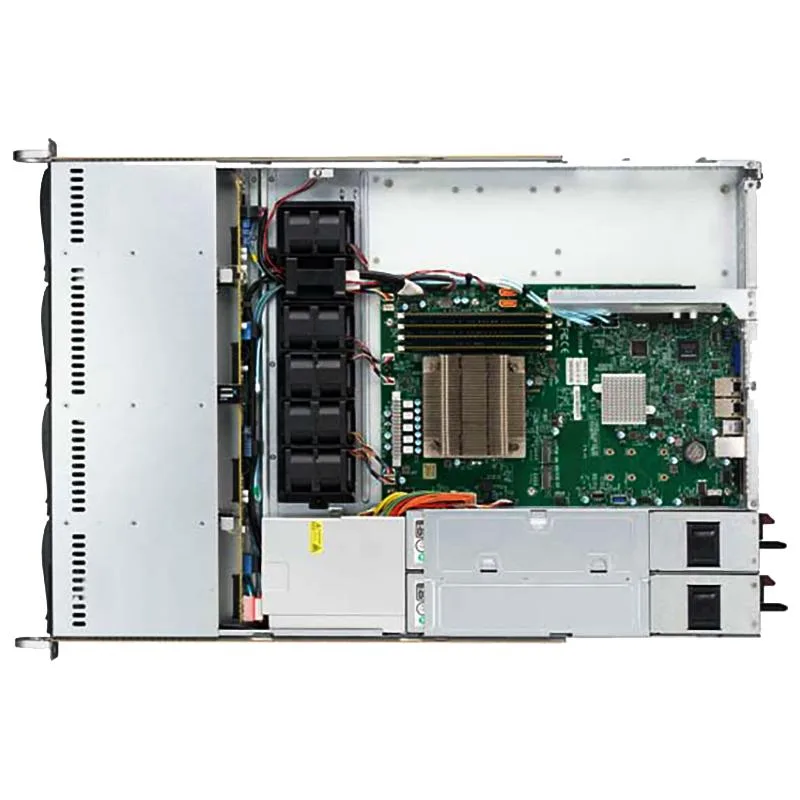

The Supermicro SYS-5019C-WR is a 1U rackmount platform built around a single Intel Xeon E-2146G processor running at 3.5 GHz with a 4.5 GHz turbo frequency across six cores. It arrives populated with 128 GB of DDR4-2666 ECC unbuffered memory in four 32 GB modules. A MegaRAID 9361-8i controller provides eight SAS 12 Gb/s ports with 1 GB cached battery-backed RAID.

Suits compute-dense single-socket workloads

This configuration fits environments that need strong per-core performance and hardware RAID in a shallow 1U chassis with redundant 500 W platinum power supplies. Buyers who require dual-socket scaling, more than four 3.5-inch drive bays, or additional PCIe expansion beyond the single x16 slot should evaluate larger platforms.

Storage controller defines drive topology

The installed LSI MegaRAID 9361-8i governs how many SAS or SATA drives can be addressed and which RAID levels are available. Its eight native ports map directly to the four hot-swap trays and any internal M.2 devices, so confirming port count and cache protection matches the planned array is the decisive step before deployment.

Highlights

  • 6-core Xeon E-2146G runs at 3.5 GHz with 4.5 GHz turbo
  • 128 GB DDR4-2666 ECC memory fills all four DIMM slots
  • MegaRAID 9361-8i provides 8-port SAS 12 Gb/s RAID with 1 GB cache
  • Four hot-swap 3.5-inch bays plus dual M.2 slots for storage flexibility
  • Redundant 500 W 80 Plus Platinum power supplies deliver 96 % efficiency

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.50 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores6-Core Processor
# of Processors InstalledE-2146G
MAX Processors0
Chipset0
Installed Memory Size128GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

How many 3.5-inch drive trays are included and do they support both SATA and SAS drives?

Four 3.5-inch hot-swap trays are supplied and the backplane accepts both SATA and SAS hard drives.

What is the efficiency rating of the redundant power supplies and how many are installed?

Two 500-watt units rated at 96 percent Platinum efficiency are installed in a hot-swap redundant configuration.

Does the server include the front bezel and rack-mount rails needed for installation?

The front bezel and rack-mount rails are not included and must be sourced separately.
