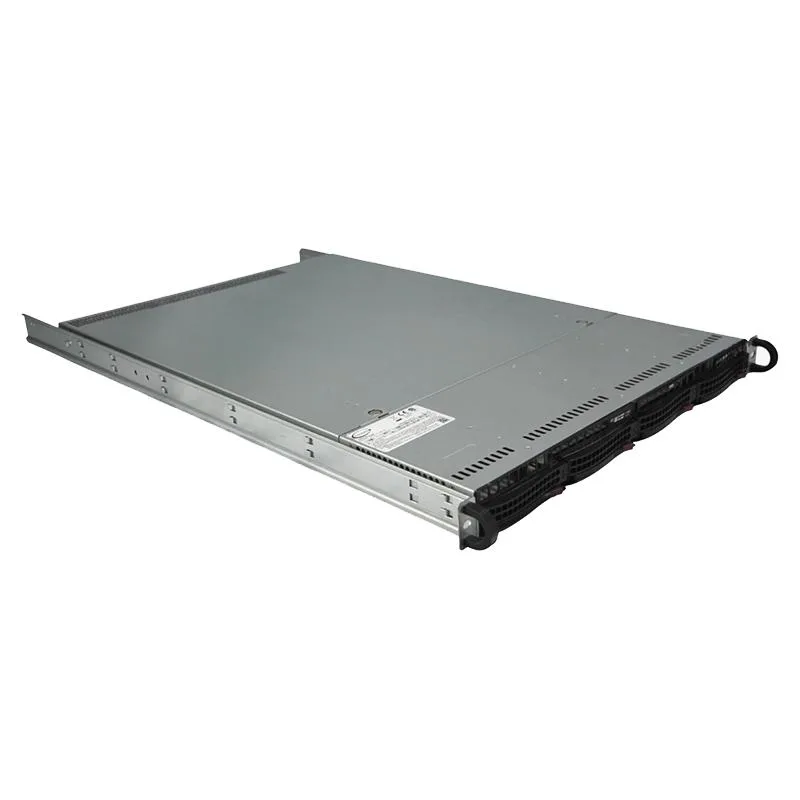

Silver 1U rack server, four front 3.5-inch drive bays, redundant power supplies, rear I/O and IPMI port

Supermicro

Supermicro SYS-5019C-WR 1U rack server E-2174G 16GB DDR4 9361-8i

SKU CH-HH7N-SF6N5

1U rack server with Intel Xeon E-2174G 3.8 GHz 4-core, 16 GB DDR4, MegaRAID 9361-8i, four 3.5″ hot-swap bays, dual 500 W Platinum PSUs and IPMI 2.0

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • Intel Xeon E-2174G 3.8 GHz with 4.7 GHz turbo for responsive compute
  • 16 GB DDR4-2666 ECC memory protects data integrity in critical workloads
  • MegaRAID 9361-8i 12 Gb/s SAS controller with 1 GB cache and battery backup
  • Four hot-swap 3.5-inch drive bays plus dual M.2 slots for flexible storage
  • Redundant 500 W 80 Plus Platinum power supplies keep the system running

1U rack server with Xeon E-2174G

This 1U rackmount system ships with a single Intel Xeon E-2174G processor running at 3.8 GHz with a 4.7 GHz turbo frequency across four cores. It includes 16 GB of DDR4-2666 ECC unbuffered memory installed in two 8 GB modules. The platform targets small-business virtualisation, edge workloads or remote-office file services where a compact footprint and redundant power are priorities.

Installation and common issues

The unit mounts in a standard 19-inch rack using the supplied rails; front bezel and rack rails are not included so verify your cabinet depth before ordering. Four hot-swap 3.5-inch drive trays accept SATA or SAS drives, and the pre-installed MegaRAID 9361-8i controller manages RAID 0, 1, 5 or 10 with 1 GB cache backed by a battery module. Builders often forget the dedicated IPMI LAN port needs its own cable for out-of-band KVM-over-LAN access.

Storage controller decides fit

The LSI MegaRAID 9361-8i provides eight internal SAS 12 Gb/s ports with hardware RAID and battery-backed cache, which determines whether the server can protect data on the four drive bays without a separate HBA. If your deployment requires software RAID only or more than eight internal ports, this controller will not match the requirement.

Highlights

  • Intel Xeon E-2174G 3.8 GHz with 4.7 GHz turbo for responsive compute
  • 16 GB DDR4-2666 ECC memory protects data integrity in critical workloads
  • MegaRAID 9361-8i 12 Gb/s SAS controller with 1 GB cache and battery backup
  • Four hot-swap 3.5-inch drive bays plus dual M.2 slots for flexible storage
  • Redundant 500 W 80 Plus Platinum power supplies keep the system running

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.80 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE-2174G
MAX Processors0
Chipset0
Installed Memory Size16GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

How do I verify the server is operational after installation?

Connect to the dedicated IPMI 2.0 LAN port, log into the ASPEED AST2500 BMC web interface, and confirm the System Health page shows green status for CPU temperature, fan speeds, and both 500W Platinum power supplies.

What ships with the unit and what must I purchase separately?

Included: 1U chassis with Xeon E-2174G, 16GB DDR4-2666 ECC UDIMM, MegaRAID 9361-8i controller with 1GB cache, four 3.5" hot-swap trays, dual Intel I210-AT 1GbE ports, redundant 500W PSUs, IPMI 2.0. Not included: 3.5" drives, front bezel, rack rails.

Which memory configuration should I select for this platform?

The system arrives with 16GB (2×8GB) DDR4-2666 ECC unbuffered installed in two of four slots; add identical DDR4-2666 ECC UDIMM pairs to reach the 128GB maximum supported by the C246 chipset.
