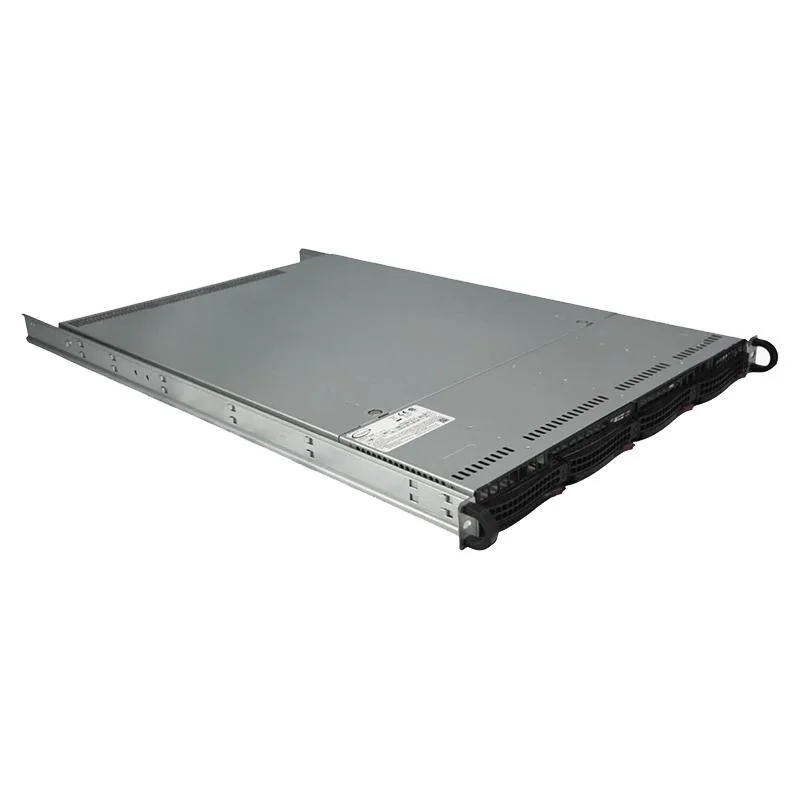

Silver 1U rack server with four front 3.5 inch drive trays and dual rear power supplies

Supermicro

Supermicro SYS-5019C-WR 1U rack server Xeon E-2146G 16GB DDR4 9361-8i 4x 3.5" trays 2x 500W

SKU CH-9K47-X94KN

1U rack server with Xeon E-2146G, 16 GB DDR4, MegaRAID 9361-8i, four 3.5" hot-swap bays and redundant 500 W 96 % Platinum PSUs

  • Type0
  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • AI FeaturesNo
  • CPU TypeIntel Xeon
  • CPU Speed0
  • 1U rack platform fits dense server rooms
  • Xeon E-2146G 6-core CPU reaches 4.5 GHz turbo
  • 16 GB DDR4-2666 ECC memory protects data integrity
  • MegaRAID 9361-8i controller manages four 3.5-inch drive bays
  • Dual 500 W 80 Plus Platinum supplies deliver 96% efficiency

1U rack server for single-socket workloads

The Supermicro SYS-5019C-WR is a 1U rackmount system built around one Intel Xeon E-2146G six-core processor running at 3.50 GHz with a 4.5 GHz turbo frequency. It ships with 16 GB of DDR4-2666 ECC memory installed across two DIMM slots. The platform targets businesses that need a compact, redundant server for virtualisation, storage or edge compute tasks.

Redundant 500 W platinum power supplies

Dual hot-swap 500 W units rated at 96 % efficiency deliver full redundancy in a 1U chassis. The 80 Plus Platinum design keeps waste heat low, allowing the integrated 1U cooling assembly to maintain stable temperatures without excessive fan noise during typical enterprise workloads. IPMI 2.0 with a dedicated LAN port provides remote power control and sensor monitoring.

LSI MegaRAID 9361-8i with eight SAS/SATA ports

The included 9361-8i controller offers 1 GB cache backed by a battery and supports RAID 0, 1, 5 and 10 across the four front 3.5-inch hot-swap bays. Two internal M.2 slots add flexibility for SATA or PCIe 3.0 x4 NVMe devices. Buyers who need more than eight internal drive connections or a second processor socket should evaluate larger platforms.

Highlights

  • 1U rack platform fits dense server rooms
  • Xeon E-2146G 6-core CPU reaches 4.5 GHz turbo
  • 16 GB DDR4-2666 ECC memory protects data integrity
  • MegaRAID 9361-8i controller manages four 3.5-inch drive bays
  • Dual 500 W 80 Plus Platinum supplies deliver 96% efficiency

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB2
Model0
Part Number3.50 GHz
Type0
Rack Height1U
Redundant Hot-swap PowerYes
AI FeaturesNo
CPU TypeIntel Xeon
CPU Speed0
CPU SocketLGA 1151
Number of CPU Cores6-Core Processor
# of Processors InstalledE-2146G
MAX Processors0
Chipset0
Installed Memory Size16GB
Memory Type0
Max Memory Capacity0
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)0
Raid LevelRAID 0/1/5/6/10/50/60
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerIntegrated Intel 210i-AT Dual Gigabit RJ45 Network Adapter
LAN Ports0
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features0

Questions about this item

How do I install the Xeon E-2146G into the LGA 1151 socket without bending pins?

Align the notches on the processor with the socket keys, lower it straight down without force, then secure the retention lever; the CPU is already installed in this system.

What maintenance will the MegaRAID 9361-8i controller battery need later?

The 1 GB cache battery should be checked annually and replaced if the controller reports a degraded or missing battery during POST.

Which limit appears first when the dual 500 W 80 Plus Platinum PSUs run at full load continuously?

The 96 % efficiency rating means heat rises quickly in the 1U chassis; sustained maximum output is limited by internal airflow before the power supplies themselves throttle.
