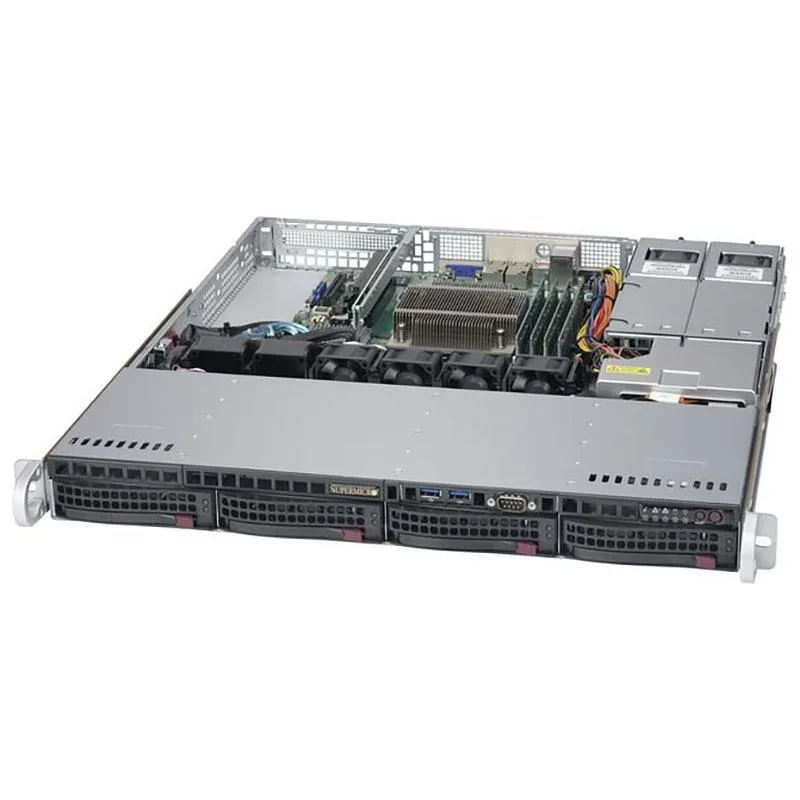

Silver 1U rack server with four front 3.5-inch drive trays and dual rear power supplies

Supermicro

Supermicro SYS-5019S-W4TR 1U rack server Xeon E3-1220 v6 8GB DDR4 4-bay 4x 10GbE dual 500W PSU

SKU CH-6395-1Y3G8

1U rack server with Xeon E3-1220 v6, 8GB DDR4 ECC, four 3.5-inch hot-swap bays, MegaRAID 9361-8i, four 10GbE ports, IPMI 2.0, dual 500W Platinum PSUs

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed3.00 GHz
  • CPU SocketLGA 1151
  • Number of CPU Cores4-Core Processor
  • Quad 10GbE ports via Intel X540 controller for high-speed networking
  • 4-bay 3.5" hot-swap drive bays with MegaRAID 9361-8i supporting RAID 0/1/5/6/10/50/60
  • Xeon E3-1220 v6 4-core 3.0 GHz processor with 8GB DDR4-2400 ECC memory
  • Dual 500W 80 Plus Platinum redundant power supplies for continuous uptime
  • IPMI 2.0 with dedicated RJ45 port enables remote KVM and virtual media management

Compact 1U rack server

The Supermicro SYS-5019S-W4TR is a 1U rackmount server system fitted with a 3.0 GHz Intel Xeon E3-1220 v6 4-core processor and 8 GB of DDR4 ECC memory. It provides four hot-swap 3.5-inch drive bays served by an LSI MegaRAID 9361-8i controller supporting RAID 0, 1, 5, 6, 10, 50 and 60. Dual redundant 500 W power supplies and IPMI 2.0 management complete the package for small to mid-sized business deployments.

Suited for storage and virtualisation, not GPU work

This server suits teams needing dense file storage, virtualisation hosts or web serving with four 10GBase-T network ports. It is not for buyers requiring GPU acceleration or higher core counts, as the Matrox G200 graphics controller provides only basic display output and the single LGA 1151 socket limits processor expansion.

Four 3.5-inch hot-swap bays with MegaRAID 9361-8i

The storage subsystem centres on four front-accessible 3.5-inch SATA/SAS trays driven by the 12 Gb/s MegaRAID 9361-8i controller with 1 GB cache and battery backup. This combination decides whether the chassis meets your capacity and redundancy needs before you add any drives.

Highlights

  • Quad 10GbE ports via Intel X540 controller for high-speed networking
  • 4-bay 3.5" hot-swap drive bays with MegaRAID 9361-8i supporting RAID 0/1/5/6/10/50/60
  • Xeon E3-1220 v6 4-core 3.0 GHz processor with 8GB DDR4-2400 ECC memory
  • Dual 500W 80 Plus Platinum redundant power supplies for continuous uptime
  • IPMI 2.0 with dedicated RJ45 port enables remote KVM and virtual media management

Specifications

BrandSUPERMICRO
SeriesCSE-815TQC-R504WB3-X11SSW-4TF
ModelSYS-5019S-W4TR
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed3.00 GHz
CPU SocketLGA 1151
Number of CPU Cores4-Core Processor
# of Processors InstalledE3-1220 V6
Installed Memory Size8GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X540 10GBase-T Ethernet Controller
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How can I verify the MegaRAID 9361-8i controller is operational after installing drives?

The controller BIOS appears during POST; press the indicated key to enter the MegaRAID utility and confirm the 1 GB cache and battery are detected and all connected SATA or SAS drives are visible.

Which components are included and which must be purchased separately?

Included: Xeon E3-1220 v6 processor, 8 GB DDR4-2400 ECC UDIMM, MegaRAID 9361-8i with 1 GB cache and battery, four 3.5" hot-plug trays, quad 10GBase-T ports via Intel X540, IPMI 2.0 dedicated RJ45, dual 500 W 80 Plus Platinum PSUs. Not included: 3.5" SATA or SAS drives, front bezel, rack-mount rails.

Should I choose the 8 GB configuration or expand toward the 64 GB maximum?

The system ships with a single 8 GB DDR4-2400 ECC UDIMM in one of four slots; add three matching modules to reach 64 GB if your virtualization or file-serving workloads need more memory.
