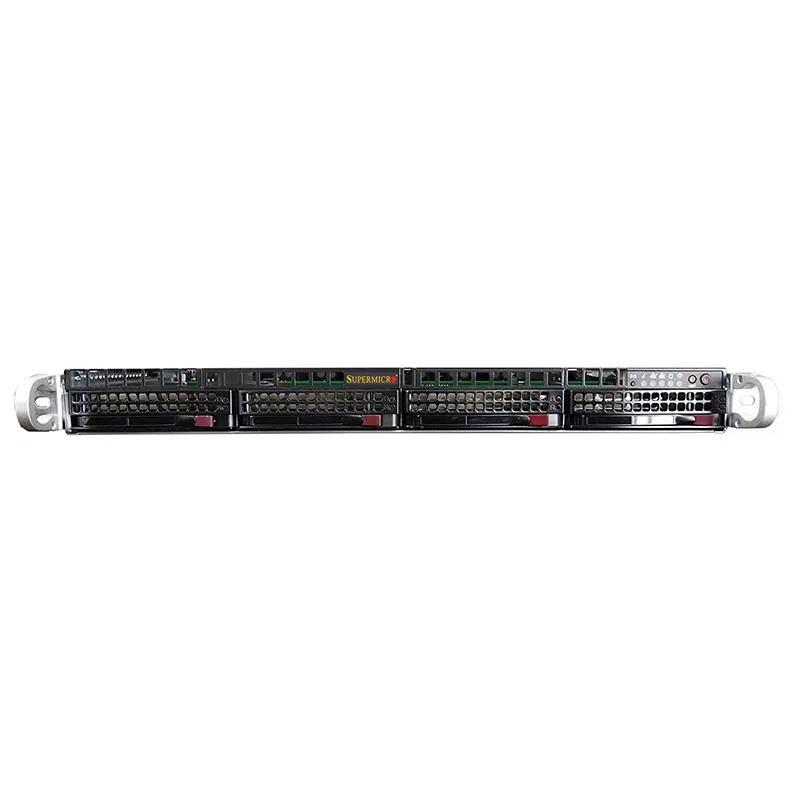

Silver 1U rack server with four front 3.5 inch drive trays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2× Xeon E5-2650 v4 128GB DDR4 4× 3.5" trays

SKU CH-N361-86S38

A 1U rack server with dual 12-core Xeon E5-2650 v4 processors, 128GB DDR4 ECC memory, a MegaRAID 9361-8i controller, four 3.5-inch hot-swap trays, quad 10GBase-T ports and IPMI 2.0 management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores12-Core Processor
  • Dual Xeon E5-2650 v4 12-core processors at 2.2 GHz deliver 24 threads for heavy workloads
  • 128 GB DDR4 2400 MHz registered ECC memory supports memory-intensive applications
  • MegaRAID 9361-8i 8-port SAS 12 Gb/s controller with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Four 3.5" hot-plug SATA/SAS drive bays provide flexible storage density in 1U
  • Quad 10GBase-T RJ45 ports plus IPMI 2.0 KVM-over-LAN give high-speed remote management

1U dual Xeon server for dense compute

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server with two Intel Xeon E5-2650 v4 processors, each running at 2.2 GHz with 12 cores. It ships with 128 GB of DDR4 2400 MHz registered ECC memory across 24 DIMM slots. A MegaRAID 9361-8i controller provides eight SAS 12 Gb/s ports with 1 GB cache and battery backup. Four 3.5-inch hot-plug trays accept SATA or SAS drives.

Suits virtualization and HPC clusters.

This platform fits virtualization hosts, high-performance computing nodes and cloud infrastructure that need dual-socket density in 1U. The Matrox G200 graphics with 8 MB video memory only supports basic console output, so buyers who need GPU acceleration for AI, rendering or VDI should look elsewhere. The four 10GBase-T ports and dedicated IPMI 2.0 LAN give strong remote management and network throughput.

Four 3.5-inch hot-plug trays limit raw capacity

Only four 3.5-inch drive bays are provided, which caps the maximum number of spinning disks or SATA SSDs you can install internally. The 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across those bays. If your workload requires more than four large-capacity drives without external enclosures, this chassis will not meet the need.

Highlights

  • Dual Xeon E5-2650 v4 12-core processors at 2.2 GHz deliver 24 threads for heavy workloads
  • 128 GB DDR4 2400 MHz registered ECC memory supports memory-intensive applications
  • MegaRAID 9361-8i 8-port SAS 12 Gb/s controller with 1 GB cache enables RAID 0/1/5/6/10/50/60
  • Four 3.5" hot-plug SATA/SAS drive bays provide flexible storage density in 1U
  • Quad 10GBase-T RJ45 ports plus IPMI 2.0 KVM-over-LAN give high-speed remote management

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores12-Core Processor
# of Processors InstalledE5-2650 V4
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do I decide between the 2.2 GHz and 2.9 GHz turbo speeds on the installed Xeon E5-2650 v4 processors?

The 2.2 GHz base clock runs continuously; the 2.9 GHz turbo activates automatically when thermal headroom allows, so no manual selection is needed.

What does the 128 GB DDR4 2400 MHz memory mean for actual workloads?

Eight 16 GB registered ECC modules provide 128 GB total, supporting memory-intensive virtualization and HPC tasks with error correction.

What does the LSI MegaRAID 9361-8i controller's 12 Gb/s SAS rating cap in practice?

The eight-port controller connects the four 3.5" hot-plug bays at up to 12 Gb/s per drive, limiting throughput to the drive's own SATA or SAS speed.
