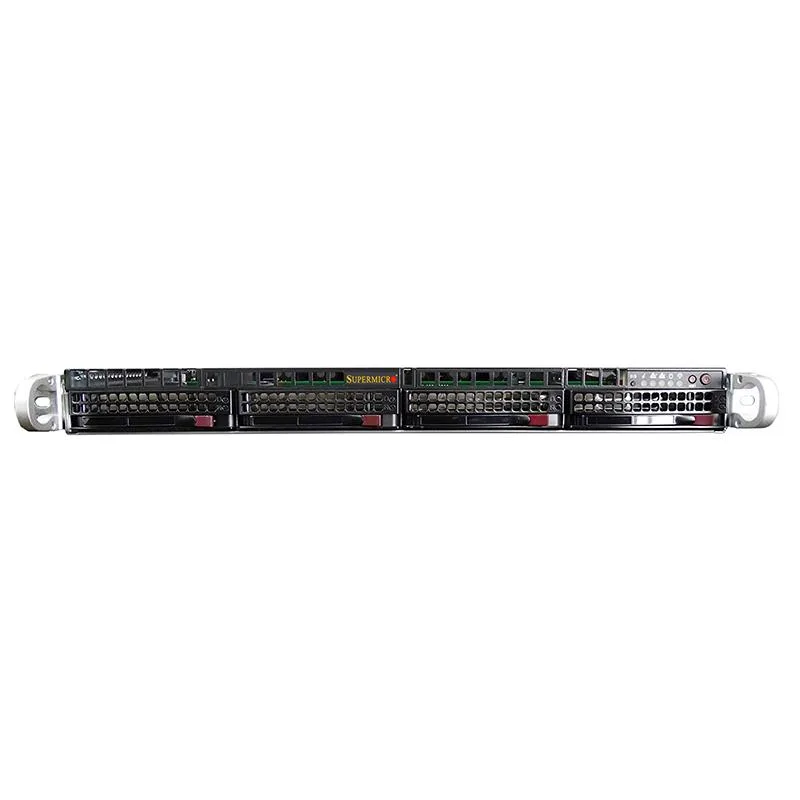

Silver 1U rack server front with four 3.5″ drive trays and power LEDs

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2× Xeon E5-2660 v4 256GB DDR4 4× 3.5″ trays

SKU CH-M509-HQSV6

1U rack server with dual 14-core Xeon E5-2660 v4 CPUs, 256GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5″ hot-plug drive bays, quad 10GBase-T ports and IPMI 2.0 management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual 14-core Xeon processors handle heavy workloads
  • 256 GB DDR4 ECC memory supports large datasets
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60
  • Four 10GBase-T ports deliver high-speed networking
  • Redundant 750 W platinum power supplies maintain uptime

Dense 1U dual-Xeon server

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount system fitted with two Intel Xeon E5-2660 v4 processors, each running at 2.0 GHz with 14 cores. It ships with 256 GB of DDR4 registered ECC memory across eight 32 GB modules and includes a MegaRAID 9361-8i controller with 1 GB cache and battery backup. Four 3.5-inch hot-plug drive trays and quad 10GBase-T ports complete the package.

Virtualisation hosts needing four 3.5-inch bays

This server suits teams that want dual-socket compute in a single rack unit and can work within four 3.5-inch SATA/SAS bays. Buyers who need more than four large-form-factor drives or who require a different drive-count layout should look elsewhere. The 1U height also limits full-height add-in cards, so workloads needing extra PCIe expansion will need a taller chassis.

Four 3.5-inch hot-plug bays in 1U

The defining constraint is the quartet of 3.5-inch SATA/SAS hot-plug trays inside a 1U enclosure. That bay count fixes the maximum raw capacity and RAID options available without external enclosures. If the workload demands more internal 3.5-inch slots, this model cannot meet it.

Highlights

  • Dual 14-core Xeon processors handle heavy workloads
  • 256 GB DDR4 ECC memory supports large datasets
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60
  • Four 10GBase-T ports deliver high-speed networking
  • Redundant 750 W platinum power supplies maintain uptime

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2660 V4
Installed Memory Size256GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do I verify the dual Xeon E5-2660 v4 CPUs and 256GB DDR4 are detected after first boot?

Enter the BIOS or IPMI 2.0 web interface; both will show two 14-core processors at 2.0GHz and 256GB of registered ECC memory across the 24 DIMM slots.

What ships with the SYS-6018U-TR4T+ and what must I purchase separately?

The system includes 2× Xeon E5-2660 v4 CPUs, 256GB DDR4, MegaRAID 9361-8i controller, 4× 3.5″ hot-plug trays, quad 10GBase-T ports, IPMI 2.0, and 2× 750W PSUs; drives, front bezel, and rack rails are not included.

Which drive bay version should I choose for 3.5″ SAS or SATA drives?

This model provides four 3.5″ hot-plug trays wired to the 9361-8i RAID controller supporting RAID 0, 1, 5, 6, 10, 50, 60; select it when you need 3.5″ SAS/SATA bays in a 1U chassis.
