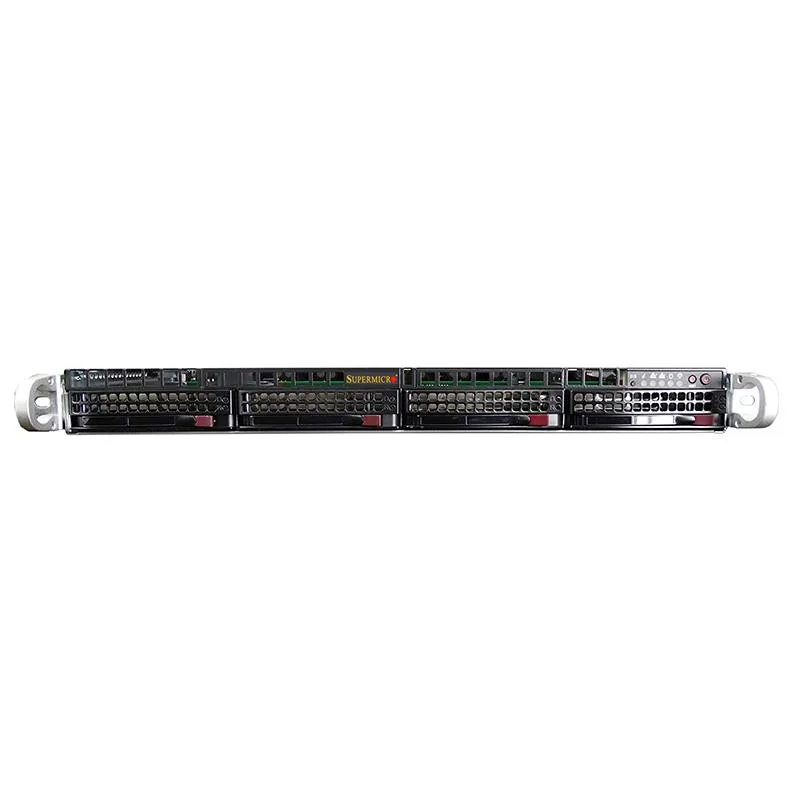

Black 1U rack server front with four 3.5 inch drive trays and power LEDs

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2× Xeon E5-2683 v4 2.1 GHz 16-core 512 GB DDR4 4× 3.5″ trays

SKU CH-BEH5-GJR74

A 1U rack server with dual 16-core Xeon processors at 2.1 GHz, 512 GB DDR4, a MegaRAID 9361-8i controller and four 3.5″ hot-plug trays

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores16-Core Processor
  • Dual Xeon E5-2683 v4 CPUs deliver 32 total cores for heavy compute
  • 512 GB DDR4 2400 MHz ECC memory handles large datasets
  • MegaRAID 9361-8i supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10GBase-T ports via Intel X540 enable fast network throughput
  • Dual 750 W Platinum PSUs provide redundant power for uptime

Dense 1U dual-socket server

This Supermicro SYS-6018U-TR4T+ is a 1U rackmount server system fitted with two Intel Xeon E5-2683 v4 processors running at 2.1 GHz with 16 cores each. It ships with 512 GB of DDR4 memory installed across 16 modules. The chassis provides four hot-plug 3.5-inch drive bays for SATA or SAS drives.

Suited for memory-heavy virtualisation and HPC

The dual 16-core CPUs and large registered ECC memory pool serve virtualisation hosts, high-performance computing nodes and cloud workloads that demand many threads and high capacity. Buyers who need more than four 3.5-inch drive bays or more than eight internal drive connections must look elsewhere. The front bezel and rack rails are not included.

Storage limited to eight ports on 9361-8i controller

The installed MegaRAID 9361-8i controller offers eight SAS 12 Gb/s ports with 1 GB cache and battery backup, supporting RAID 0, 1, 5, 6, 10, 50 and 60. This port count caps the number of drives that can be managed directly by the hardware RAID engine.

Highlights

  • Dual Xeon E5-2683 v4 CPUs deliver 32 total cores for heavy compute
  • 512 GB DDR4 2400 MHz ECC memory handles large datasets
  • MegaRAID 9361-8i supports RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10GBase-T ports via Intel X540 enable fast network throughput
  • Dual 750 W Platinum PSUs provide redundant power for uptime

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 2011-3
Number of CPU Cores16-Core Processor
# of Processors InstalledE5-2683 V4
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Will the 2.1 GHz 16-core Xeon E5-2683 v4 CPUs fit the LGA 2011-3 boards I already run?

Yes, the installed E5-2683 v4 processors use the LGA 2011-3 socket, so they match existing boards with that socket.

How can I verify the MegaRAID 9361-8i controller is operating at 12 Gb/s SAS after installation?

Check the controller BIOS or MegaRAID Storage Manager; both report the negotiated 12 Gb/s link speed for each attached drive.

Do the four 3.5″ trays include drives or must I supply SATA/SAS disks separately?

The trays ship empty; you must purchase SATA or SAS hard drives separately to populate the four hot-plug bays.
