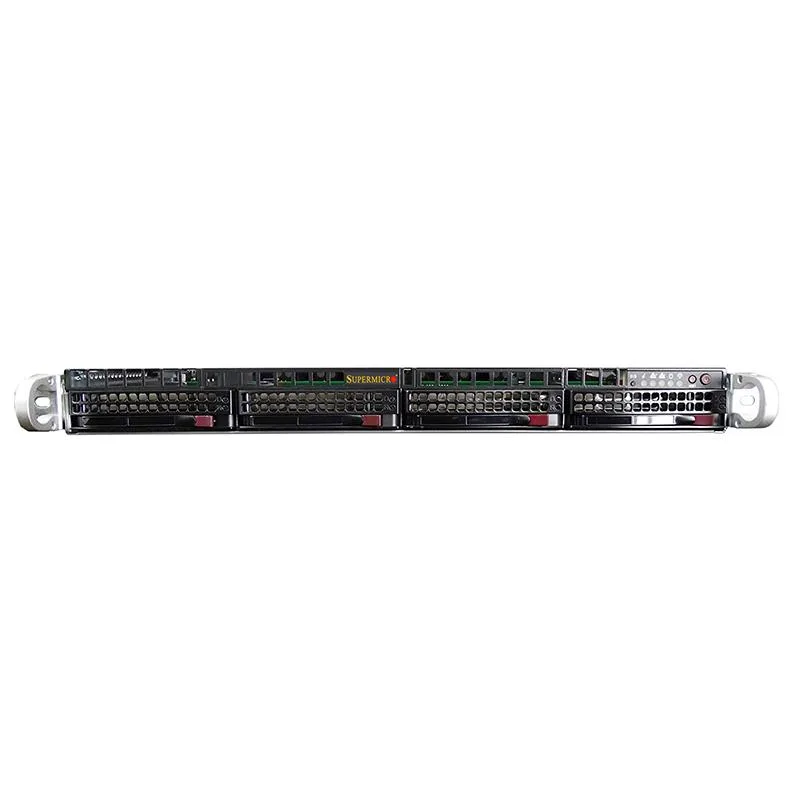

1U silver rack server, four 3.5 inch drive bays front, dual power supplies rear

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2x Xeon E5-2697 v4 2.3GHz 18-core 128GB DDR4 4x 3.5" bays 2x 750W

SKU CH-7P3A-5W4XZ

A 1U rack server with dual 18-core Xeon processors at 2.3 GHz, 128 GB DDR4 ECC memory, a MegaRAID 9361-8i controller, four 3.5-inch hot-swap bays, quad 10GBase-T ports.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • Dual 18-core Xeon processors at 2.3 GHz turbo to 3.6 GHz for parallel workloads
  • 128 GB DDR4 2400 MHz registered ECC memory across 8 modules for data integrity
  • MegaRAID 9361-8i controller with 1 GB cache and battery backup supports RAID 0/1/5/6/10/50/60
  • Four 10GBase-T RJ45 ports via Intel X540 for high-speed network connectivity
  • Dual 750 W platinum redundant hot-swap power supplies maintain uptime under load

Dual Xeon 18-core 1U server

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server system fitted with two Intel Xeon E5-2697 v4 processors running at 2.30 GHz base and 3.6 GHz turbo. Each CPU provides 18 cores for 36 threads total. The unit ships with 128 GB of DDR4 2400 MHz registered ECC memory installed across eight 16 GB modules. A MegaRAID 9361-8i controller with 1 GB cache and battery backs four hot-plug 3.5-inch SATA or SAS drive bays.

Virtualisation hosts needing dense compute

This server suits teams running virtualisation clusters, high-performance computing jobs or cloud workloads that benefit from high core counts in a single rack unit. The quad-port 10GBase-T Intel X540 adapter and dedicated IPMI 2.0 port give strong remote management and network throughput. Buyers who want more storage bays or who need GPU acceleration beyond the integrated Matrox G200 with 8 MB video memory should look at a different chassis.

Rack-ready with redundant power

The 1U form factor fits standard racks using your own rails; the front bezel is not included. Dual 750 W platinum-efficiency power supplies provide hot-swap redundancy for continuous operation. The LGA 2011-3 platform supports up to 1.5 TB of DDR4 across 24 DIMM slots, leaving 16 slots free for future memory expansion. Four 3.5-inch trays are supplied; drives are not included.

Highlights

  • Dual 18-core Xeon processors at 2.3 GHz turbo to 3.6 GHz for parallel workloads
  • 128 GB DDR4 2400 MHz registered ECC memory across 8 modules for data integrity
  • MegaRAID 9361-8i controller with 1 GB cache and battery backup supports RAID 0/1/5/6/10/50/60
  • Four 10GBase-T RJ45 ports via Intel X540 for high-speed network connectivity
  • Dual 750 W platinum redundant hot-swap power supplies maintain uptime under load

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2697 V4
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Do I need to supply my own 3.5-inch SATA or SAS hard drives for the four hot-plug bays?

Yes, the server includes four 3.5-inch drive trays but no drives are installed, so you must provide SATA or SAS drives yourself.

Will the LSI MegaRAID 9361-8i controller work with older SATA or SAS drives I already own?

The controller supports SATA and SAS interfaces and RAID levels 0, 1, 5, 6, 10, 50 and 60, so existing SATA or SAS drives can be used in the hot-plug bays.

How can I verify the 128 GB of DDR4 ECC memory is detected and healthy after first boot?

Check the BIOS memory summary or the IPMI 2.0 KVM-over-LAN interface; both will show 128 GB across the installed DIMM slots and report any ECC errors.
