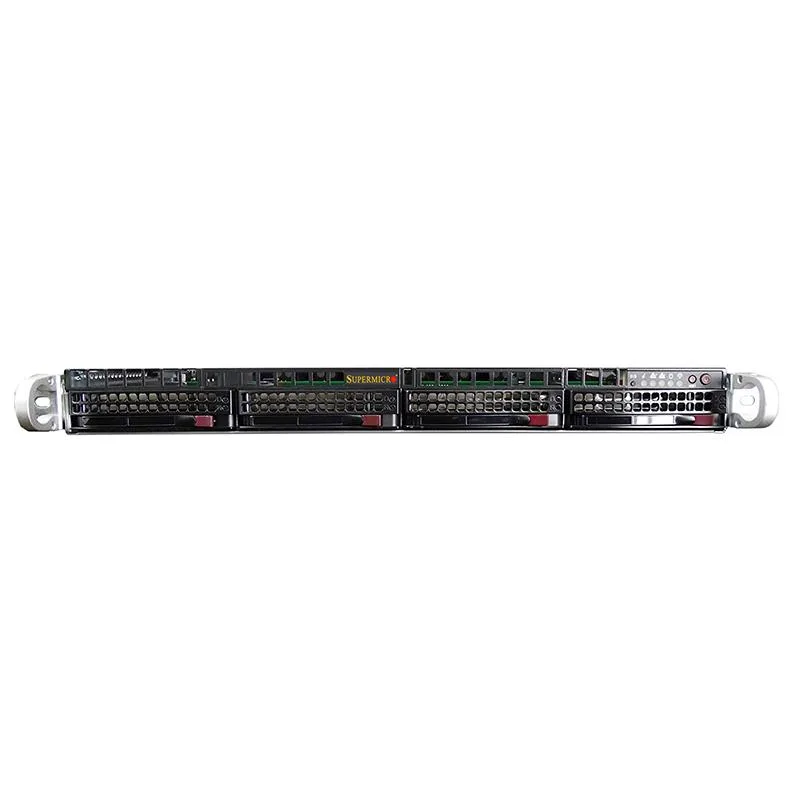

1U rack server, matte black front with four 3.5 inch drive trays, dual Xeon badge, redundant power supply handles at rear

Supermicro

Supermicro SYS-6018U-TR4T+ rack server 2x Xeon E5-2697 v4 2.3GHz 18C 512GB DDR4 4x 3.5" bays

SKU CH-YVB2-BPJ0N

1U rack server with dual 18-core Xeon processors at 2.3 GHz, 512 GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5-inch hot-plug bays.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores18-Core Processor
  • Dual Xeon 18-core CPUs deliver 36 total cores for parallel workloads
  • 512 GB DDR4 ECC memory across 16 DIMMs supports memory-intensive applications
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10 GbE RJ45 ports provide high-speed network connectivity
  • Redundant 750 W platinum power supplies maintain uptime during failures

Dual Xeon 1U server for virtualised workloads

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server equipped with two Intel Xeon E5-2697 v4 processors, each providing 18 cores at 2.3 GHz with 3.6 GHz turbo. It ships with 512 GB of DDR4 2400 MHz registered ECC memory across 16 modules. The platform targets virtualisation, high-performance computing and cloud deployments that demand dense multi-threaded capacity in a single rack unit.

Sustained load behaviour with redundant power

Dual 750 W platinum power supplies provide hot-swap redundancy so the system remains online if one unit fails. The MegaRAID 9361-8i controller with 1 GB battery-backed cache sustains write throughput during RAID 0, 1, 5, 6, 10, 50 or 60 rebuilds. Four 10GBase-T ports on the Intel X540 adapter maintain network bandwidth for storage replication and VM migration without saturating a single link.

Compatibility checks before ordering

Verify that your rack accepts 1U depth and that the 3.5-inch drive trays match the SAS or SATA drives you plan to install, because no drives are included. The front bezel and rack-mount rails are not supplied, so source those separately. Confirm that your management network can reach the dedicated IPMI 2.0 port for KVM-over-LAN access. Ensure the LGA 2011-3 socket and DDR4 memory generation align with any future upgrade plans.

Highlights

  • Dual Xeon 18-core CPUs deliver 36 total cores for parallel workloads
  • 512 GB DDR4 ECC memory across 16 DIMMs supports memory-intensive applications
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10 GbE RJ45 ports provide high-speed network connectivity
  • Redundant 750 W platinum power supplies maintain uptime during failures

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 2011-3
Number of CPU Cores18-Core Processor
# of Processors InstalledE5-2697 V4
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How loud and hot does this 1U server get with dual E5-2697 v4 CPUs and 750W PSUs running continuously?

Two 18-core Xeon E5-2697 v4 processors and dual 750W Platinum power supplies in a 1U chassis mean high airflow; expect noticeable fan noise and significant heat output under sustained load.

What drives and rails must I supply to use the four 3.5-inch hot-plug bays and mount this server?

The four 3.5-inch SAS/SATA trays are included; you must provide 3.5-inch SATA or SAS drives and your own rack-mount rails, as the front bezel and rails are not included.

Will the X540 quad 10GBase-T ports and IPMI 2.0 management work with my existing Cat5e patch panel and older KVM switch?

The four RJ45 10GBase-T ports and dedicated IPMI 2.0 RJ45 port use standard copper Ethernet; they will link at the highest speed the cabling and partner ports support.
