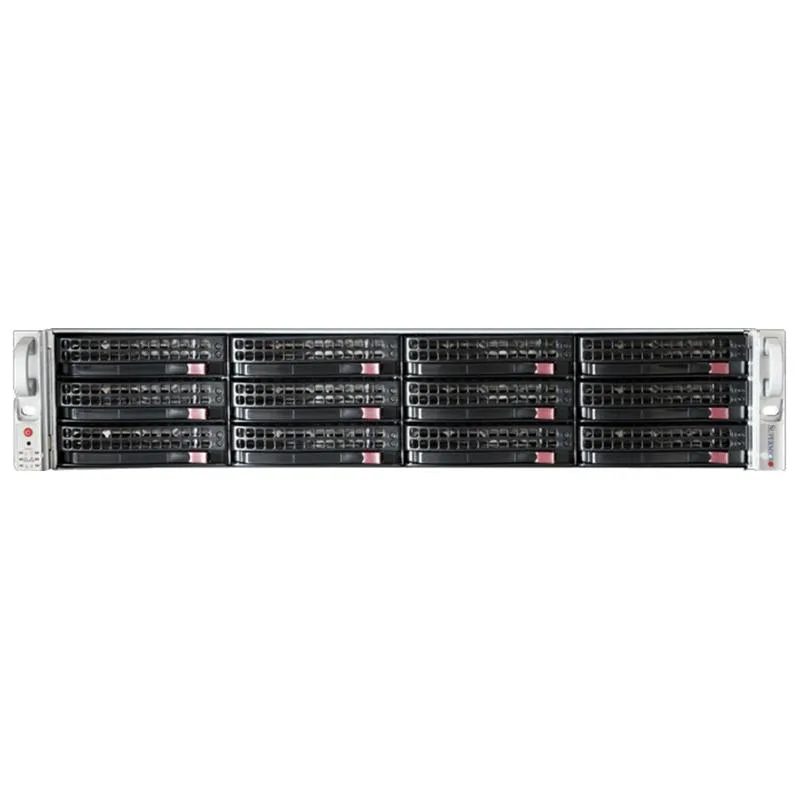

Black 2U rack server chassis with twelve 3.5 inch drive trays front panel

Supermicro

Supermicro SYS-6028U-TR4T+ 2U rack server 2x Xeon E5-2690 v4 2.6GHz 14-core 64GB DDR4 12-bay

SKU CH-YR8H-9SM1A

2U rack server with dual 14-core Xeon processors at 2.6GHz, 64GB DDR4, 12 hot-swap 3.5-inch bays, MegaRAID 9361-8i controller, quad 10GBase-T ports and IPMI 2.0 remote management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.60 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual Xeon E5-2690 v4 14-core CPUs deliver 28 threads at 2.6 GHz
  • 64 GB DDR4 2400 MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap bays
  • Quad 10GBase-T ports via Intel X540 provide high-speed network throughput
  • Dual 1000 W redundant power supplies with IPMI 2.0 remote management ensure uptime

Dual Xeon 14-core 2U server

The Supermicro SYS-6028U-TR4T+ is a 2U rackmount server system built around two Intel Xeon E5-2690 v4 processors. Each CPU runs at 2.6 GHz with 14 cores and supports turbo operation up to 3.5 GHz. The platform targets virtualization, database and cloud workloads that benefit from 28 total cores and 64 GB of DDR4 2400 MHz registered ECC memory installed across four DIMM slots.

Sustained load behaviour

Dual 1000 W titanium-efficiency power supplies provide redundant hot-swap power for continuous operation. The LSI MegaRAID 9361-8i controller with 1 GB battery-backed cache manages up to 12 hot-plug 3.5-inch SATA or SAS drives across RAID 0, 1, 5, 6, 10, 50 and 60. IPMI 2.0 with dedicated LAN enables remote KVM and virtual media access for lights-out management during extended duty cycles.

10GBase-T and storage limits

Four RJ45 10GBase-T ports driven by the Intel X540 controller deliver 10 GbE connectivity over copper cabling. The 8-port SAS 12 Gb/s RAID controller limits the number of directly attached drives to eight despite twelve physical bays. Maximum memory capacity reaches 1.5 TB across 24 DIMM slots, though only 64 GB is populated. Front bezel and rack rails are not included.

Highlights

  • Dual Xeon E5-2690 v4 14-core CPUs deliver 28 threads at 2.6 GHz
  • 64 GB DDR4 2400 MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 across 12 hot-swap bays
  • Quad 10GBase-T ports via Intel X540 provide high-speed network throughput
  • Dual 1000 W redundant power supplies with IPMI 2.0 remote management ensure uptime

Specifications

BrandSUPERMICRO
SeriesCSE-829UAC-R1K02-T
ModelSYS-6028U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.60 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2690 V4
Installed Memory Size64GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-2UR-6-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How loud and hot does the SYS-6028U-TR4T+ get when both Xeon E5-2690 v4 CPUs run at 2.6 GHz all day?

The system uses dual 1000 W titanium-efficiency power supplies and hot-swap redundant cooling designed for continuous 2U rack operation.

What else must I already own for the 12-bay server to boot and serve data?

You need to supply 3.5" SAS or SATA drives for the 12 hot-plug bays and an operating system; the MegaRAID 9361-8i controller supports RAID 0/1/5/6/10/50/60.

Will the on-board Intel X540 10GBase-T ports and IPMI 2.0 management work with my older Cat5e patch panels and KVM switches?

The four RJ45 10GBase-T ports negotiate down to 1 GbE on legacy cabling, and the dedicated RJ45 IPMI 2.0 port works with standard KVM-over-IP clients.
