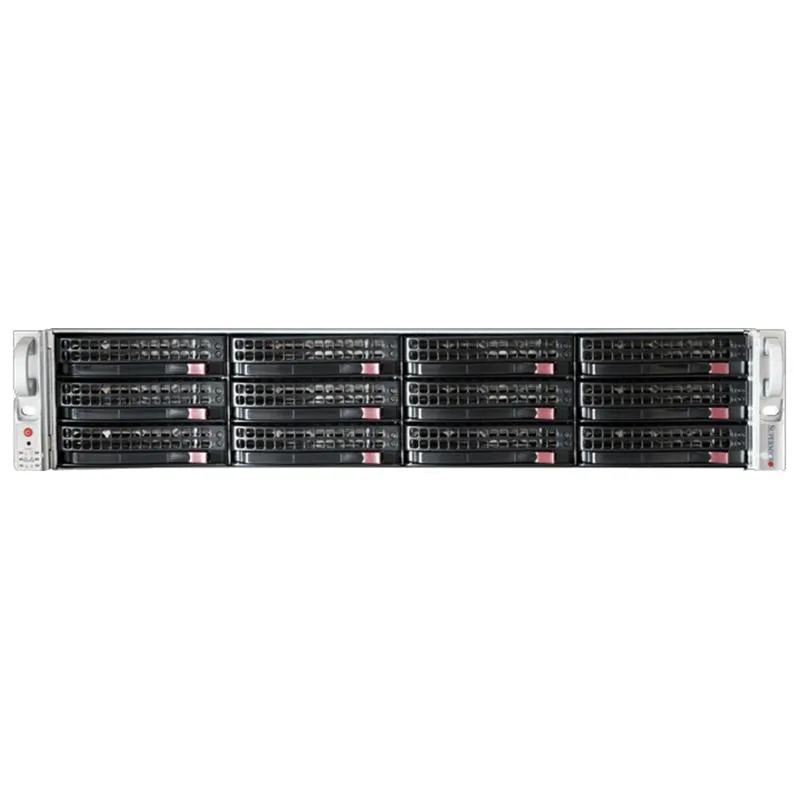

Silver 2U rack server front with twelve 3.5-inch drive bays

Supermicro

Supermicro SYS-6028U-TR4T+ 2U rack server 2x Xeon E5-2699 v4 22-core 512GB DDR4 12x 3.5

SKU CH-TH6N-WTH5M

Dual 22-core Xeon processors and 512GB DDR4 ECC memory power this 2U rack server with twelve 3.5-inch hot-swap drive bays, hardware RAID, quad 10GBase-T ports and dual 1000W supplies

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores22-Core Processor
  • Dual Xeon E5-2699 v4 CPUs deliver 22 cores each at up to 3.6 GHz
  • 512 GB DDR4 2400 MHz ECC memory across 16 modules
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 12 hot-swap 3.5-inch SAS/SATA drive bays for high-capacity storage
  • Quad 10GBase-T ports via Intel X540 plus dedicated IPMI 2.0 management LAN

Dual Xeon 22-core compute density

The SYS-6028U-TR4T+ is a 2U rackmount server built around two Intel Xeon E5-2699 v4 processors. Each CPU delivers 22 cores at 2.2 GHz with a 3.6 GHz turbo frequency. The system ships with 512 GB of DDR4 2400 MHz registered ECC memory across 16 DIMM slots, leaving 8 slots open for expansion. It targets workloads that need high thread counts and large memory capacity in a compact rack footprint.

MegaRAID 9361-8i and quad 10GBase-T

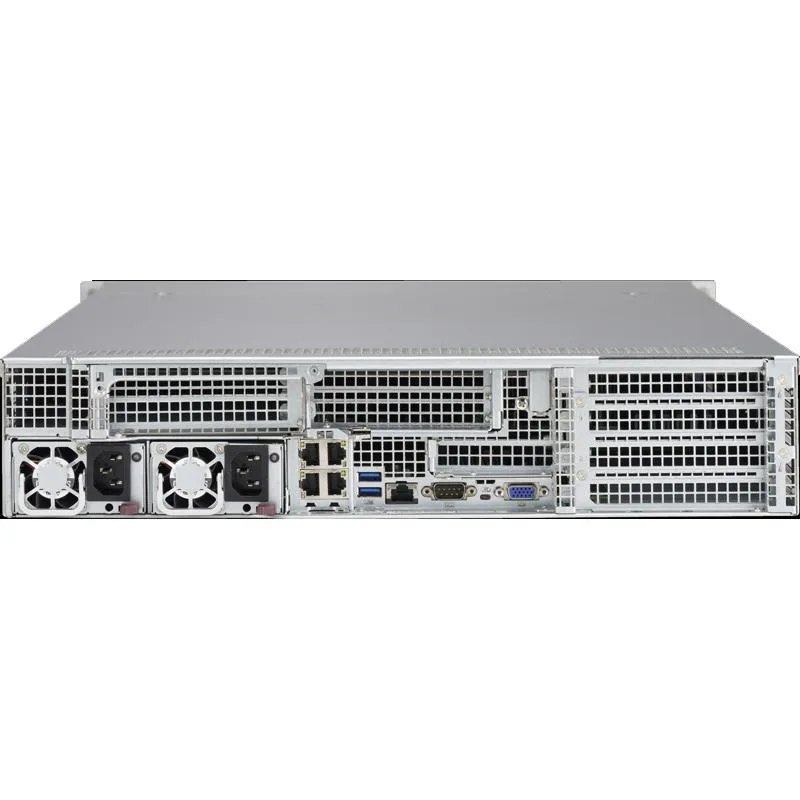

An LSI MegaRAID 9361-8i controller provides eight internal SAS 12 Gb/s ports with 1 GB cache and battery backup. It supports RAID 0, 1, 5, 6, 10, 50 and 60 across the 12 hot-plug 3.5-inch drive bays. A SuperMicro AOC-2UR-6-i4XT add-in card adds four RJ45 10GBase-T ports driven by an Intel X540 controller. A dedicated IPMI 2.0 LAN port enables KVM-over-LAN and virtual media for remote management.

LGA 2011-3 platform constraints

The dual-socket LGA 2011-3 platform limits upgrades to the Xeon E5-2600 v3 and v4 families. Maximum supported memory is 1.5 TB when all 24 DIMM slots are populated. The MegaRAID 9361-8i connects through a single PCIe slot, so its eight ports serve the 12 bays through backplane expanders. Redundant 1000 W titanium power supplies occupy the hot-swap bays; front bezel and rack rails are not included.

Highlights

  • Dual Xeon E5-2699 v4 CPUs deliver 22 cores each at up to 3.6 GHz
  • 512 GB DDR4 2400 MHz ECC memory across 16 modules
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 12 hot-swap 3.5-inch SAS/SATA drive bays for high-capacity storage
  • Quad 10GBase-T ports via Intel X540 plus dedicated IPMI 2.0 management LAN

Specifications

BrandSUPERMICRO
SeriesCSE-829UAC-R1K02-T
ModelSYS-6028U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors InstalledE5-2699 V4
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-2UR-6-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

When will the MegaRAID 9361-8i controller battery need replacement?

The 9361-8i includes a 1 GB cache backed by a battery backup unit; plan to replace the battery module every three to five years to protect write-back cache integrity.

What thermal limit appears first when both Xeon E5-2699 v4 CPUs run at 3.6 GHz turbo continuously?

Sustained 3.6 GHz turbo on all 22 cores per socket will hit the processor package power limit before chassis airflow becomes the bottleneck.

How loud and hot does the system get with both 1000 W titanium PSUs loaded all day?

Redundant 1000 W titanium supplies run efficiently at typical loads; dual-socket stress raises exhaust temperature and fan speed, producing noticeable rack-level noise.
