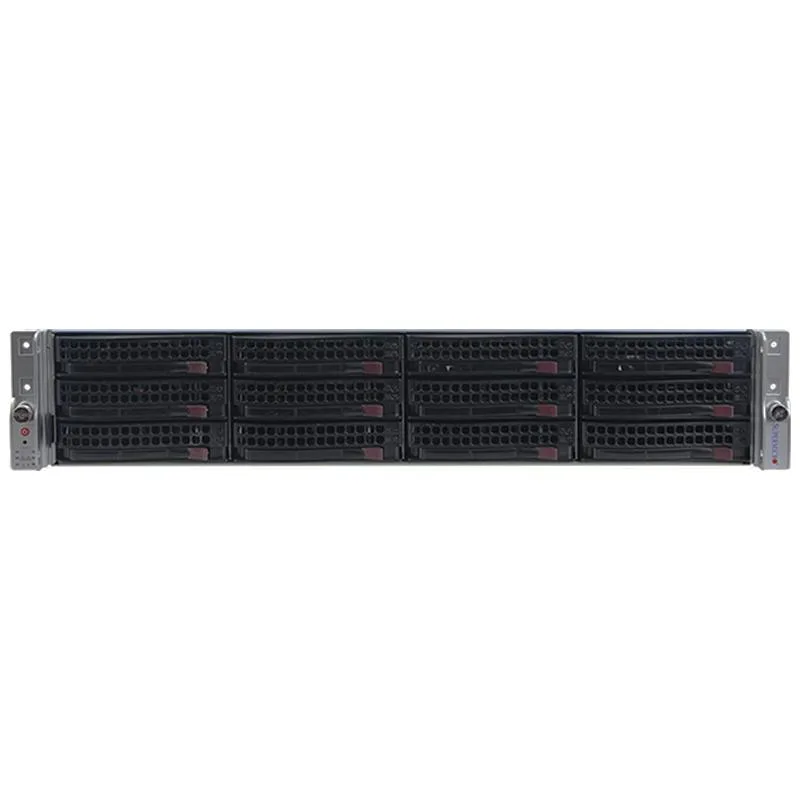

Silver 2U rack server front with twelve 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 12-bay 2U rack server 2x Xeon Gold 6130 16-core 128GB DDR4

SKU CH-338G-AFG06

2U rack server with dual 16-core Xeon Gold 6130 CPUs, 128 GB DDR4, 12 hot-swap 3.5″ bays, MegaRAID 9361-8i, four 10 GbE ports, IPMI 2.0 and redundant 1000 W PSUs

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual 16-core Xeon Gold 6130 CPUs at 2.1 GHz turbo to 3.7 GHz for heavy compute
  • 128 GB DDR4-2666 ECC registered memory across eight DIMMs for large datasets
  • MegaRAID 9361-8i with 1 GB cache and battery backs RAID 0/1/5/6/10/50/60
  • Twelve hot-swap 3.5" SATA/SAS bays plus four 10GBase-T ports via Intel X710
  • IPMI 2.0 with KVM-over-LAN and dual 1000 W Titanium supplies for remote uptime

Dual Xeon Gold 6130 2U server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system built around two Intel Xeon Gold 6130 processors. Each CPU provides 16 cores at 2.1 GHz with a 3.7 GHz turbo frequency. The platform targets virtualization, hyper-converged storage and cloud workloads that benefit from dual-socket density.

12 hot-swap 3.5-inch bays with MegaRAID

Twelve front-access drive trays accept 3.5-inch SATA or SAS drives and connect to the included LSI MegaRAID 9361-8i controller with 1 GB battery-backed cache. RAID 0, 1, 5, 6, 10, 50 and 60 are supported. The eight-port controller leaves four bays without a direct path unless an additional HBA is installed. Memory stands at 128 GB DDR4-2666 ECC registered across eight DIMM slots, leaving 16 slots open for expansion toward the 6 TB maximum.

Redundant 1000 W titanium supplies and 10 GbE

Two hot-swap 1000 W titanium-efficiency power supplies provide N+1 redundancy. Networking is handled by a quad-port Intel X710 10GBase-T adapter plus a dedicated RJ45 IPMI 2.0 port for KVM-over-LAN and virtual media. Expansion includes two full-height PCIe 3.0 x16 slots, four full-height x8 slots and one low-profile x8 slot. Front bezel and rack rails are not included.

Highlights

  • Dual 16-core Xeon Gold 6130 CPUs at 2.1 GHz turbo to 3.7 GHz for heavy compute
  • 128 GB DDR4-2666 ECC registered memory across eight DIMMs for large datasets
  • MegaRAID 9361-8i with 1 GB cache and battery backs RAID 0/1/5/6/10/50/60
  • Twelve hot-swap 3.5" SATA/SAS bays plus four 10GBase-T ports via Intel X710
  • IPMI 2.0 with KVM-over-LAN and dual 1000 W Titanium supplies for remote uptime

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size128GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Will my existing SATA hard drives work in the twelve 3.5-inch hot-swap bays?

Yes, the twelve front bays accept both SATA and SAS 3.5-inch drives and the MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50 and 60 across them.

How can I verify the dual Xeon Gold 6130 processors and 128 GB of DDR4-2666 ECC memory are recognised after installation?

During POST the BIOS will list two 16-core CPUs at 2.10 GHz with 3.7 GHz turbo and show 128 GB across eight 16 GB DIMMs; IPMI 2.0 also reports the same inventory remotely.

Which items ship with the server and which must be sourced separately?

The chassis includes two Xeon Gold 6130 CPUs, eight 16 GB DDR4 DIMMs, MegaRAID 9361-8i with battery, twelve 3.5-inch drive trays, AOC-2UR66-i4XTF for four 10GBase-T ports, dedicated IPMI RJ45, two 1000 W titanium PSUs and Matrox G200 video; rails, bezel and drives are not included.
