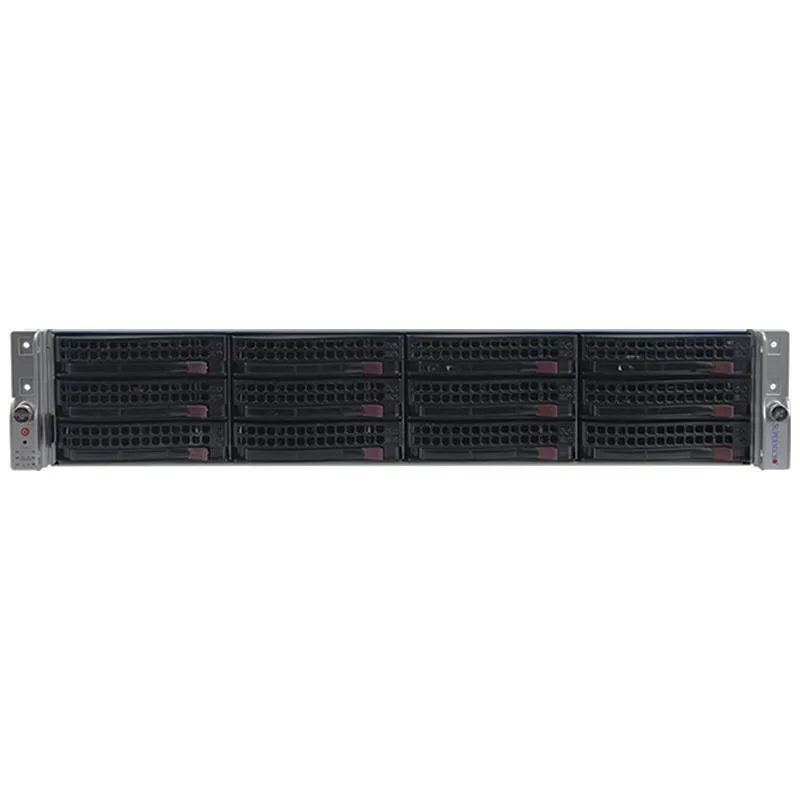

Silver 2U rack server chassis with twelve front 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2× Xeon Gold 6130 2.1 GHz 16-core 16 GB DDR4 12× 3.5″ bays

SKU CH-3RH1-C4VX8

Dual Xeon Gold 6130 2U server with 16 GB DDR4, 12 hot-swap 3.5″ bays, MegaRAID 9361-8i and four 10GBase-T ports

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual Xeon Gold 6130 CPUs provide 16 cores each at 2.1 GHz with 3.7 GHz turbo for compute-intensive tasks
  • 16 GB DDR4-2666 ECC registered memory installed across 24 DIMM slots for error-corrected capacity
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Twelve 3.5 inch hot-swap bays accept SATA and SAS drives for high-density storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN enable fast networking and remote management

Dual Xeon 2U rack server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount server system built around two Intel Xeon Gold 6130 processors. Each CPU provides 16 cores at 2.1 GHz with a 3.7 GHz turbo frequency. The platform ships with 16 GB of DDR4-2666 ECC registered memory installed across 24 available DIMM slots.

Virtualisation hosts needing dense 3.5-inch storage

This server suits teams running hyper-converged or virtualised workloads that benefit from twelve hot-swap 3.5-inch drive bays and four 10GBase-T ports. Buyers who require front bezel or rack rails included should look elsewhere, as neither is supplied. The single low-profile expansion slot also limits add-in card density for specialised accelerators.

Twelve-bay capacity with 24 DIMM headroom

The twelve 3.5-inch bays support SAS and SATA drives behind an LSI MegaRAID 9361-8i controller offering RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cached battery backup. Memory scales to 6 TB of 3DS ECC DDR4-2933 when all 24 slots are populated. Dual 1000 W titanium power supplies provide redundancy for fully loaded configurations.

Highlights

  • Dual Xeon Gold 6130 CPUs provide 16 cores each at 2.1 GHz with 3.7 GHz turbo for compute-intensive tasks
  • 16 GB DDR4-2666 ECC registered memory installed across 24 DIMM slots for error-corrected capacity
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Twelve 3.5 inch hot-swap bays accept SATA and SAS drives for high-density storage
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN enable fast networking and remote management

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size16GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Which drives must I supply for the twelve 3.5″ hot-plug bays?

The chassis accepts twelve 3.5″ SATA or SAS drives; no drives are included so you provide the capacity and type you need.

Will my existing PCIe 3.0 expansion cards fit the available slots?

The system offers two full-height x16 slots, four full-height x8 slots, one low-profile x8 slot and one internal x8 slot, all PCIe 3.0.

How do I confirm the dual Xeon Gold 6130 CPUs and 16 GB DDR4 are recognised at first boot?

Enter the BIOS or watch the IPMI 2.0 KVM-over-LAN console; both will show two 16-core processors at 2.1 GHz and 16 GB of registered ECC memory.
