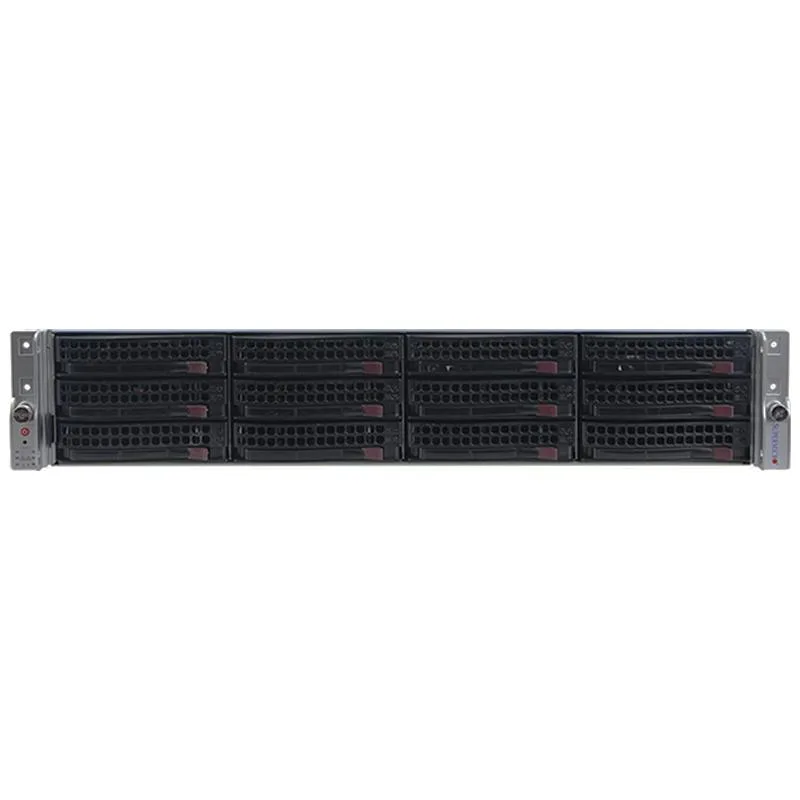

Silver 2U rack server chassis with twelve front 3.5 inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Gold 6130 16-core 2.1GHz 256GB DDR4 12x 3.5" bays

SKU CH-DQAS-JBVZZ

Dual 16-core Xeon Gold 6130 CPUs at 2.1 GHz, 256 GB DDR4, 12 hot-swap 3.5" bays, MegaRAID 9361-8i, quad 10GBase-T and dual 1000 W PSUs in a 2U chassis

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores16-Core Processor
  • Dual 16-core Xeon Gold 6130 CPUs deliver 32 threads at 2.1 GHz base
  • 256 GB DDR4-2666 ECC memory supports large virtualised workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve hot-swap 3.5" SAS/SATA bays provide high-density local storage
  • Four 10GBase-T ports plus dedicated IPMI 2.0 LAN give fast remote management

Dual Xeon Gold 6130 server with 256GB DDR4

This 2U rackmount system delivers dual Intel Xeon Gold 6130 processors running at 2.1GHz with 16 cores each. A total of 256GB DDR4-2666 ECC registered memory is installed across eight 32GB modules. The platform targets virtualization, hyper-converged storage and cloud workloads needing high core density and memory capacity in a compact form factor.

Suits dense virtualization and storage clusters.

The server fits teams building virtualization hosts, software-defined storage nodes or cloud infrastructure where dual-socket CPU performance and 12 hot-swap drive bays matter. Buyers needing GPU acceleration, desktop-grade single-thread speed or workstation graphics should look elsewhere because the onboard Matrox G200 provides only basic video output and the expansion layout prioritises storage and networking cards.

12 hot-swap 3.5" bays

Storage connectivity centres on an LSI MegaRAID 9361-8i 8-port SAS 12Gb/s RAID controller with 1GB cache and battery backup supporting RAID 0, 1, 5, 6, 10, 50 and 60. Twelve front-accessible 3.5-inch trays accept SATA and SAS drives, while four hybrid bays can take NVMe SSDs with an additional add-on card. This bay count and controller combination determines how many drives you can protect and at what RAID levels.

Highlights

  • Dual 16-core Xeon Gold 6130 CPUs deliver 32 threads at 2.1 GHz base
  • 256 GB DDR4-2666 ECC memory supports large virtualised workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Twelve hot-swap 3.5" SAS/SATA bays provide high-density local storage
  • Four 10GBase-T ports plus dedicated IPMI 2.0 LAN give fast remote management

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores16-Core Processor
# of Processors InstalledGold 6130
Installed Memory Size256GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do I install the 256GB DDR4 memory and what step is often missed?

The server has 24 DIMM slots; populate them in the order shown in the motherboard manual for each CPU to enable quad-channel operation, and ensure all modules are fully seated until the ejector clips click.

Which components will need replacement after extended operation?

The MegaRAID 9361-8i controller includes a 1GB cache with a battery-backed module that typically requires replacement every few years to maintain write-back cache protection.

What thermal limit appears first under sustained full load?

Each Xeon Gold 6130 has a 205W TDP; the dual 1000W Titanium power supplies and 2U chassis airflow are rated for this heat, so CPU thermal throttling is the first limit reached if inlet temperature rises.
