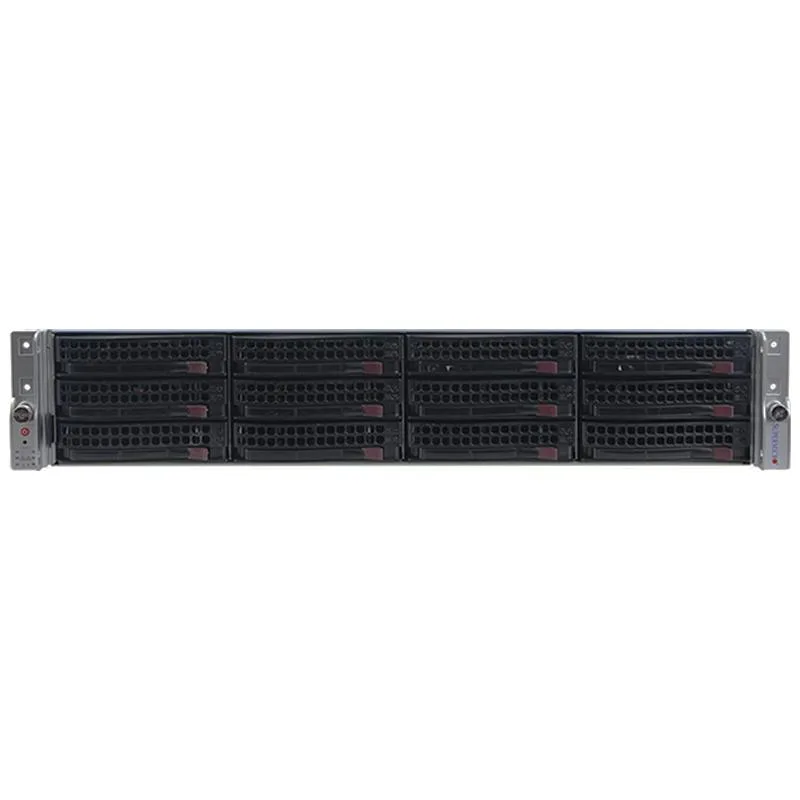

Silver 2U rack server front with twelve 3.5-inch drive bays and bezel off

Supermicro

Supermicro SYS-6029U-E1CR4T rack server 2x Xeon Gold 5118 2.3GHz 12-core 32GB DDR4 12x 3.5" bays

SKU CH-F7YH-EWBJP

A 2U rack server with dual 12-core Xeon Gold 5118 CPUs, 32 GB DDR4, 12 hot-swap 3.5″ bays and four 10 GbE ports

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.30 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores12-Core Processor
  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz with 3.2 GHz turbo
  • 32 GB DDR4 ECC memory supports virtualization and database workloads
  • 12 hot-swap 3.5" SATA/SAS drive bays provide high-density local storage
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10 GbE ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Dual Xeon Gold 5118 2U Server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system with two Intel Xeon Gold 5118 processors at 2.3 GHz. Each CPU provides 12 cores, totalling 24 threads for virtualization and database workloads. It ships with 32 GB DDR4 ECC memory and a MegaRAID 9361-8i controller.

Suited For & Not Suited For

This server fits buyers who need twelve 3.5-inch hot-swap bays and four 10GBase-T ports in a redundant 1000 W power configuration. It is not for buyers who want 2.5-inch drive density, NVMe U.2 bays, or GPU compute cards, because the chassis and expansion slots do not support those needs.

Deciding Specification

The twelve 3.5-inch SAS/SATA hot-plug bays define the storage capacity ceiling. With no drives included, the usable space depends entirely on the drives you populate, so confirm your capacity and RAID-level requirements before ordering.

Highlights

  • Dual Xeon Gold 5118 CPUs deliver 24 cores at 2.3 GHz with 3.2 GHz turbo
  • 32 GB DDR4 ECC memory supports virtualization and database workloads
  • 12 hot-swap 3.5" SATA/SAS drive bays provide high-density local storage
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1 GB cache
  • Four 10 GbE ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.30 GHz
CPU SocketLGA 3647
Number of CPU Cores12-Core Processor
# of Processors InstalledGold 5118
Installed Memory Size32GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

What rack height and mounting hardware does the SYS-6029U-E1CR4T require?

The server occupies 2U of rack space; front bezel and rack-mount rails are not included.

Which step is often missed when installing the MegaRAID 9361-8i controller?

The 9361-8i includes a 1 GB cache module with battery; the battery must be connected before first boot or the cache will stay disabled.

What maintenance will the two 1000 Watt power supplies need?

Each PSU is hot-swap redundant; a failed unit can be replaced without shutting down the server.
