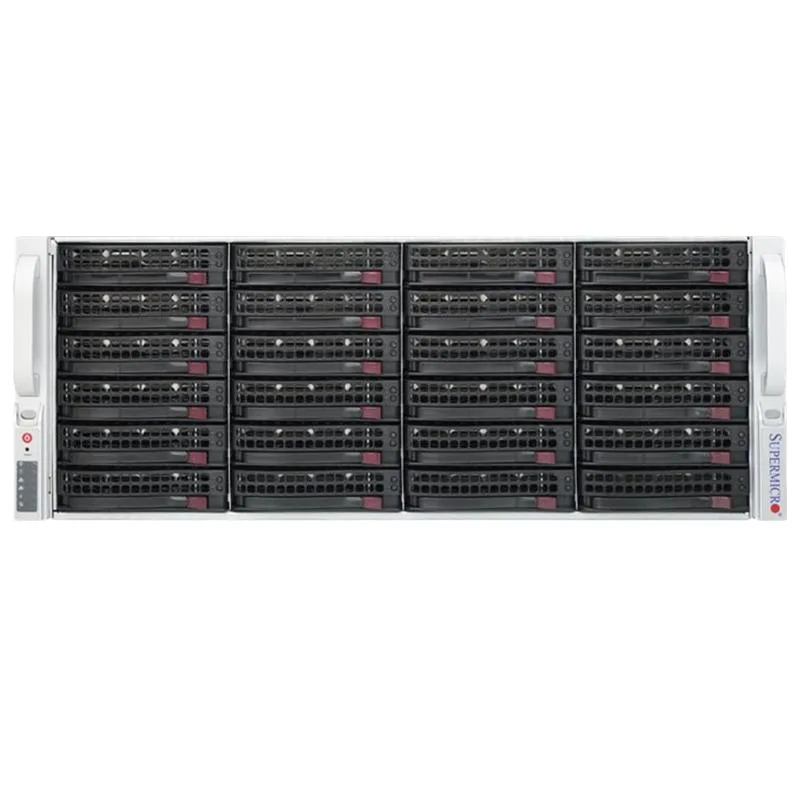

4U rack server front with 24 drive bays

Supermicro

Supermicro SYS-8048B-TRFT 4U rack server 4× Xeon E7-4820 v2 2.0GHz 512GB DDR3 24× 3.5" bays

SKU CH-E96E-028FD

4U rack server with four Xeon E7-4820 v2 processors, 512GB DDR3 and 24 hot-swap 3.5" drive bays

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores8-Core Processor
  • Four Xeon E7-4820 v2 CPUs deliver 32 cores for heavy workloads
  • 512GB DDR3 1600MHz ECC memory supports large in-memory datasets
  • 24 hot-swap 3.5" bays provide massive SAS/SATA storage capacity
  • Dual 10GBase-T ports enable high-speed network connectivity
  • Four 1620W Platinum supplies give redundant power for uptime

Quad-socket Xeon server for compute-intensive

The Supermicro SYS-8048B-TRFT is a 4U rackmount system equipped with four Intel Xeon E7-4820 v2 processors running at 2.0 GHz with a 2.5 GHz turbo frequency. Each CPU provides eight cores for a total of 32 cores across the platform. The unit ships with 512 GB of DDR3 1600 MHz registered ECC memory installed across 32 modules. It targets organisations that need dense processing power and large memory capacity in a single chassis.

Redundant 1620 W platinum power supplies

Four hot-swap 1620 watt platinum-efficiency power supplies provide full redundancy for continuous operation. The 24 front-accessible 3.5 inch hot-swap drive bays allow drive replacement without shutting down the system. A dedicated RJ45 management port enables IPMI 2.0 remote monitoring and KVM-over-LAN control independent of the operating system. The Matrox G200 graphics controller with 8 MB video memory handles basic console output.

MegaRAID 9361-8i controller

The LSI MegaRAID 9361-8i 8-port SAS 12 Gb/s RAID controller with 1 GB cache and battery backup supports RAID levels 0, 1, 5, 6, 10, 50 and 60 for flexible data protection. A SuperMicro AOC-STG-i2T add-on card provides two RJ45 10GBase-T ports via the Intel X540 controller for high-speed network connectivity. The chassis includes 24 drive trays but no hard drives, front bezel or rack mount rails. The system offers 11 PCIe 3.0 expansion slots for additional adapters.

Highlights

  • Four Xeon E7-4820 v2 CPUs deliver 32 cores for heavy workloads
  • 512GB DDR3 1600MHz ECC memory supports large in-memory datasets
  • 24 hot-swap 3.5" bays provide massive SAS/SATA storage capacity
  • Dual 10GBase-T ports enable high-speed network connectivity
  • Four 1620W Platinum supplies give redundant power for uptime

Specifications

BrandSUPERMICRO
SeriesCSE-848X + X10QBi-R1.01A
ModelSYS-8048B-TRFT
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 2011
Number of CPU Cores8-Core Processor
# of Processors InstalledE7-4820 V2
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSuperMicro AOC-STG-i2T - Intel X540 - 2x RJ45 10GBase-T Ports
Management PortRJ 45
Features24 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How do I install the four Xeon E7-4820 v2 processors into the LGA 2011 sockets, and what step is most often missed?

Align each processor with the socket notches, lower the load plate, and secure the lever; the step most often missed is applying thermal paste before mounting the heatsinks.

Which components will need replacement first during long-term operation?

The 1620 W Platinum power supplies and hot-swap drive trays are field-replaceable; the 9361-8i RAID controller cache battery will also require periodic replacement.

What thermal or power limit appears first when all four CPUs run at 2.5 GHz turbo under sustained load?

The 1620 W power supply rating and system cooling capacity set the practical ceiling before the CPUs can maintain 2.5 GHz turbo continuously.
