Supermicro SYS-8048B-TRFT 4U rack server 4× Xeon E7-4850 v4 2.1 GHz 16-core 2 TB DDR4 24-bay

Four-socket Xeon server for heavy compute

This 4U rackmount system ships with four Intel Xeon E7-4850 v4 processors running at 2.1 GHz base and 2.8 GHz turbo, each providing 16 cores for a total of 64 threads. It includes 2 TB of DDR4 2400 MHz registered ECC memory across 64 DIMM modules. The platform targets enterprises running virtualization, large databases or high-performance computing workloads that demand maximum thread count and memory capacity in a single chassis.

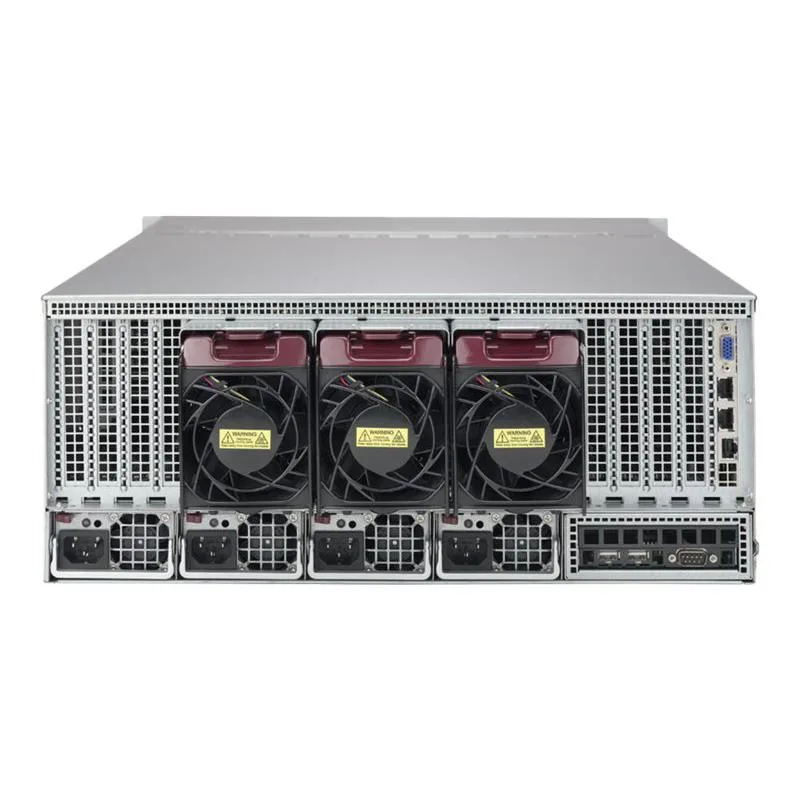

Platinum redundant power and hot-swap cooling

Four 1620 W platinum-efficiency hot-swap power supplies deliver full N+1 redundancy, keeping the system running if one unit fails. The 24 front-accessible 3.5-inch drive bays support hot-plug SAS and SATA drives without powering down. IPMI 2.0 with a dedicated RJ45 port provides KVM-over-LAN and virtual media for remote monitoring and control, reducing the need for physical access during routine management.

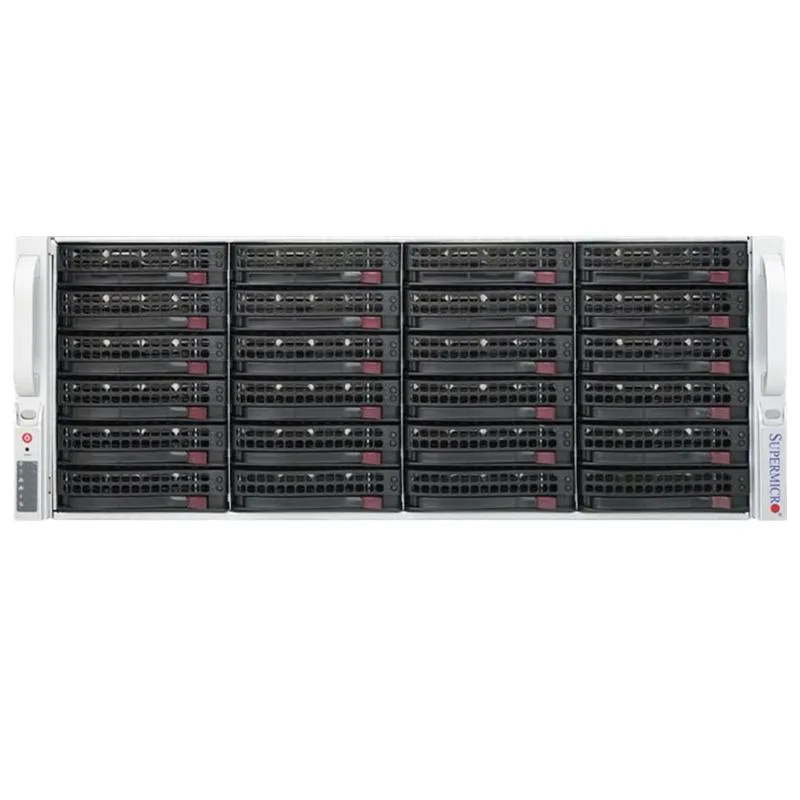

24-bay storage density with eight-port RAID

The LSI MegaRAID 9361-8i controller offers eight 12 Gb/s SAS ports with 1 GB cached battery-backed write-back, supporting RAID 0, 1, 5, 6, 10, 50 and 60 across the 24 bays. Dual 10 GbE RJ45 ports on the Intel X540 adapter handle high-throughput network traffic. Eleven PCIe 3.0 slots remain available for additional NICs, HBAs or accelerators. Front bezel and rack rails are not included, so plan for separate mounting hardware.
