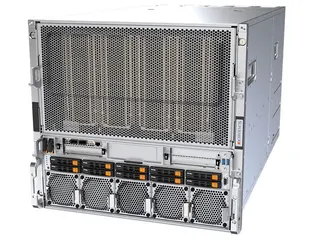

Silver 10U rack server chassis with front drive bays and LED indicators

Supermicro

Supermicro SYS-A22GA-NBRT-G1 10U rack server dual Xeon 6960P 2.3TB DDR5 8x B200 GPU

SKU CH-AFYK-XNK6A MPN SYS-A22GA-NBRT-G1

A 10U rack server with dual 72-core Xeon processors, 2.3TB DDR5 memory, eight B200 GPUs and six redundant 5250W power supplies

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height10U
  • LEDsHDD activity Network activity LEDs System information (overh
  • Hot-swap Fans15 counter-rotating 80x80x80mm Fan(s) 4 counter-rotating 60x
  • CPU TypeIntel Xeon
  • Dual 72-core Xeon processors handle heavy compute workloads
  • Eight NVIDIA B200 GPUs deliver massive parallel acceleration
  • 3 TB DDR5-6400 memory supports large dataset processing
  • Four U.2 plus two M.2 NVMe SSDs provide fast local storage
  • Six 5250 W titanium power supplies ensure redundant operation

10U Dual Xeon 6960P AI Server

This 10U rack system pairs two Intel Xeon 6960P processors with an NVIDIA HGX B200 eight-GPU baseboard. It targets organisations training or serving large language models that need dense GPU compute in a single chassis. The platform is built for continuous operation in data-centre environments.

2.3 TB DDR5-6400 with 6 TB ceiling

Twenty-four DIMM slots hold 2.3 TB of DDR5-6400 ECC memory today and can scale to 6 TB with higher-density RDIMM or MRDIMM modules. The installed capacity feeds the eight B200 GPUs and dual 72-core CPUs for multi-terabyte model weights. Workloads exceeding 6 TB total system memory will require a different platform.

Eight B200 GPUs with 180 GB video memory

The HGX baseboard provides eight NVIDIA B200 GPUs sharing 180 GB of high-bandwidth video memory. This GPU count and memory pool determine whether the server fits a specific model size or batch requirement. Buyers needing more than eight GPUs or larger per-GPU memory must look beyond this chassis.

Highlights

  • Dual 72-core Xeon processors handle heavy compute workloads
  • Eight NVIDIA B200 GPUs deliver massive parallel acceleration
  • 3 TB DDR5-6400 memory supports large dataset processing
  • Four U.2 plus two M.2 NVMe SSDs provide fast local storage
  • Six 5250 W titanium power supplies ensure redundant operation

Specifications

BrandSUPERMICRO
SeriesGold Series
ModelSYS-A22GA-NBRT-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height10U
LEDsHDD activity
Network activity LEDs
System information (overheat/UID)
UID
Hot-swap Fans15 counter-rotating 80x80x80mm Fan(s)
4 counter-rotating 60x60x56mm Fan(s)
CPU TypeIntel Xeon
CPU Speed6960P (2.70 GHz)
CPU SocketLGA 7529
Number of CPU Cores72-Core Processor
Cache Memory432 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size2.3TB
Memory TypeDDR5-6400
Max Memory Capacity6TB
Memory FeaturesMax Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Number of Memory Slots24
SSD (Installed)2 x 1.9TB M.2 PM9A3 NVMe Solid State Drive (Gen 4)
4 x 1.9TB 2.5" PM9A3 NVMe PCIe 4.0 Solid State Drive (1 x DWPD)
Servers_Graphic Installed1
GPU TypeNVIDIA HGX GPU Baseboard 8 B200
Video Memory180GB
Ethernet Controller8 x Supermicro 400-Gigabit MCX75310AAS-NEAT (1 x OSFP) Ethernet Network Adapter
1 x BlueField-3 BF3220 DPU 200GbE Dual Port Crypto Enable
1 x 2 RJ45 10Gbase-T Ports
Expansion Bays10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
Power Characteristics6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
HumidityOperating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions17.2" x 17.6" x 33.2"
Weight293 lbs.
Shipping weight156.49 kg
Package size1255 × 693 × 640 mm

Questions about this item

Will the 10U SYS-A22GA-NBRT-G1 share power and cooling infrastructure with my existing rack equipment?

The server draws power from six 5250W redundant Titanium-level supplies in a 3+3 configuration and uses 15 counter-rotating 80mm and four 60mm hot-swap fans, so your rack PDUs and airflow must support that density.

How can I verify the NVIDIA HGX B200 8-GPU baseboard is operating correctly after installation?

Check the front-panel system-information LED for overheat or UID alerts, confirm all 180GB of GPU video memory is reported in the BIOS or management console, and monitor the eight 400G OSFP network links for link-up status.

Which drives and networking modules are already installed, and what must I procure separately?

The system ships with four 1.9TB U.2 NVMe SSDs, two 1.92TB M.2 NVMe SSDs, eight 400G OSFP Ethernet controllers and one NVIDIA BlueField-3 DPU; additional DDR5-6400 RDIMMs or MRDIMMs up to the 6TB limit and any extra OSFP cables or transceivers are not included.
