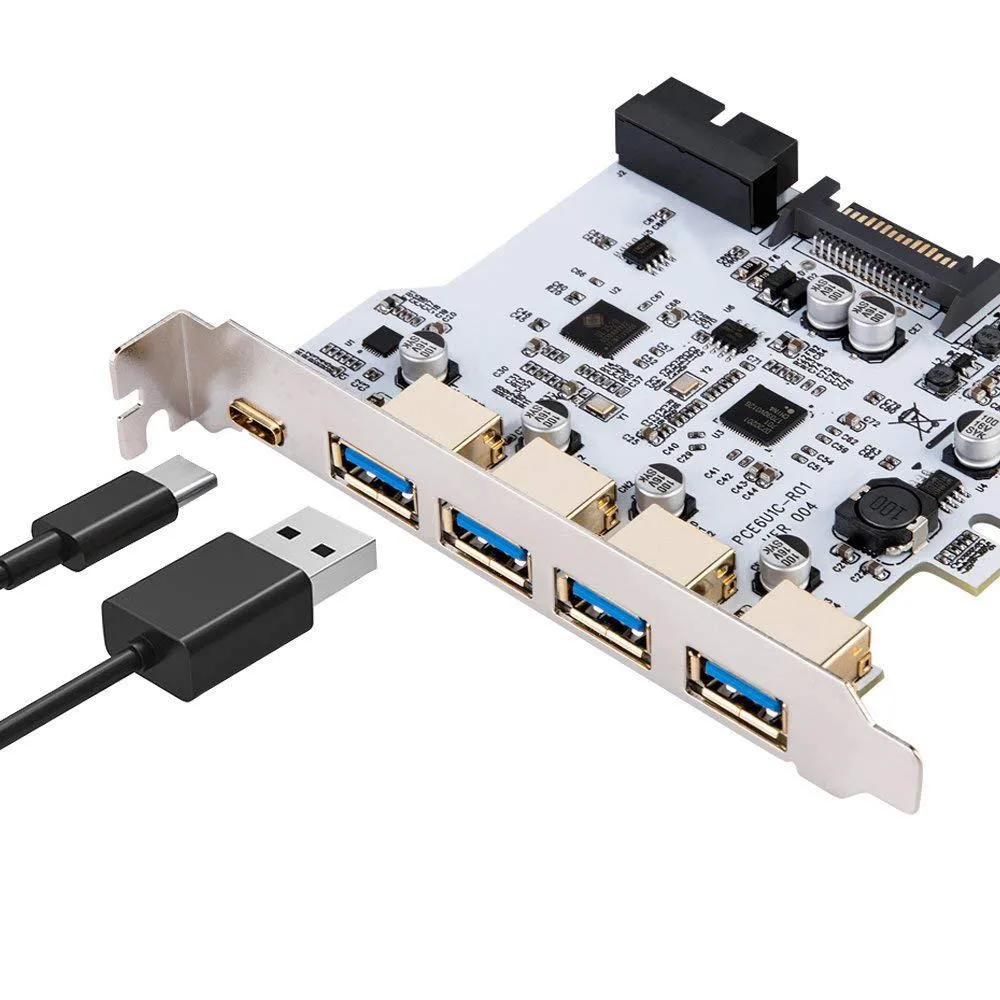

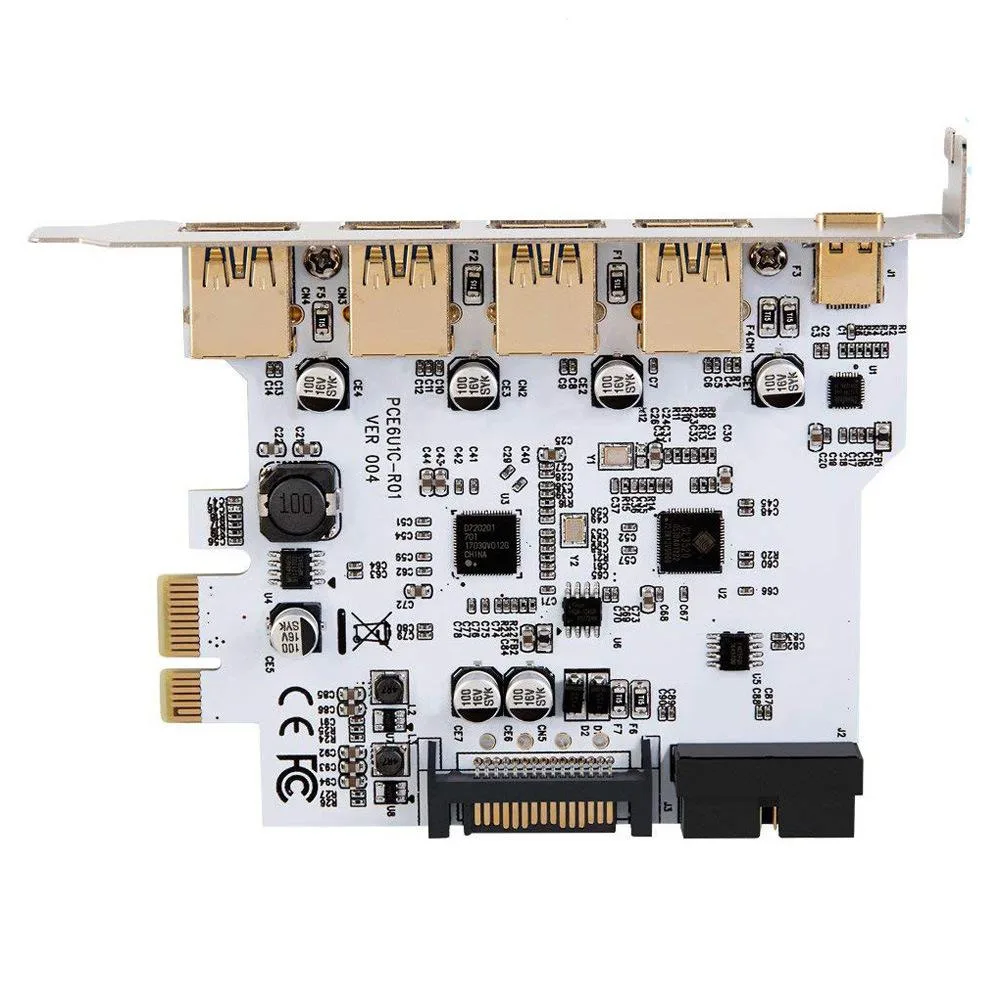

PCIe expansion card with USB 3.0 Type-C and Type-A ports

Sweet Nothing

Sweet Nothing PCE6U1C-R01 USB 3.0 Type-C Expansion Card

SKU CH-G7D1-VQA9K

Adds four USB 3.0 ports and one Type-C connector through a PCI Express slot

  • Changer TypePCI PCIE
  • SpecificationsUSB3.0/Type-C
  • Adds one USB 3.0 Type-C port via PCI Express
  • Four USB 3.0 Type-A ports expand peripheral connectivity
  • Renesas D720201 and D720210 controllers drive 5 Gbps throughput
  • Compatible with Windows XP through 10 and Linux systems
  • 19-pin internal header links front-panel Type-C and Type-A ports

USB 3.0 Type-C PCIe Expansion Card

This add-on card installs in a desktop PCIe slot and adds one USB Type-C port plus four USB Type-A ports. It is aimed at PC builders and upgraders who need more front-panel or rear I/O connectivity for peripherals, external drives or charging devices. The Renesas D720201 and D720210 controllers handle the USB 3.0 signalling.

Desktop owners with a spare PCIe slot

Suitable for Windows XP through Windows 10 and Linux systems that have an available PCIe expansion slot and a 19-pin internal USB header for the Type-C connector. Not suited for laptops, small-form-factor systems without a full-height PCIe slot, or users who require more than one Type-C port.

Single Type-C port with 19-pin header

The card provides exactly one USB Type-C port that connects to the motherboard via a 19-pin internal header, while the four Type-A ports use the standard PCIe interface. If your chassis or motherboard lacks a 19-pin header, the Type-C port cannot be used.

Highlights

  • Adds one USB 3.0 Type-C port via PCI Express
  • Four USB 3.0 Type-A ports expand peripheral connectivity
  • Renesas D720201 and D720210 controllers drive 5 Gbps throughput
  • Compatible with Windows XP through 10 and Linux systems
  • 19-pin internal header links front-panel Type-C and Type-A ports

Specifications

Changer TypePCI PCIE
SpecificationsUSB3.0/Type-C

Questions about this item

Does my motherboard need a spare PCI Express slot for this card?

Yes, the card installs in an available PCI Express slot on the motherboard.

Will the card provide USB 3.0 ports alongside my existing USB 2.0 ports?

It adds one Type-C port and up to four USB 3.0 Type-A ports that operate independently of older ports.

How can I confirm the Renesas D720201 and D720210 controllers are active after installation?

The new USB 3.0 controllers will appear in Device Manager or lsusb once the driver loads.
