Black 120mm server fan with dual 4-pin and large 4-pin connectors, 38mm thick frame

SXDOOL

SXDOOL 120mm Case Fan PFC1212DE 12V 4.8A 5500RPM 252.85CFM

SKU CH-A4CT-AJ1GN

A 120 mm server fan delivering 252.85 CFM at 5500 RPM with PWM control and dual 4-pin power connectors

  • TypeCase Fan
  • Delivers 252.85 CFM airflow for dense server cooling
  • Spins at 5500 RPM to move 7.16 m³/min through chassis
  • Generates 1.412 in H₂O static pressure for restricted airflow paths
  • PWM speed regulation via motherboard 4-pin header
  • Dual 4-pin power interfaces ensure redundant supply

High-Performance Server Fan

The SXDOOL PFC1212DE is a 120mm case fan built for DELL R910 server chassis. It delivers 252.85 CFM airflow at 5500 RPM using a dual 4-pin motherboard and large 4-pin power supply interface. The frame and blades use PBT with 30% glass fibre and V0 flame retardant.

Suited for Demanding Cooling

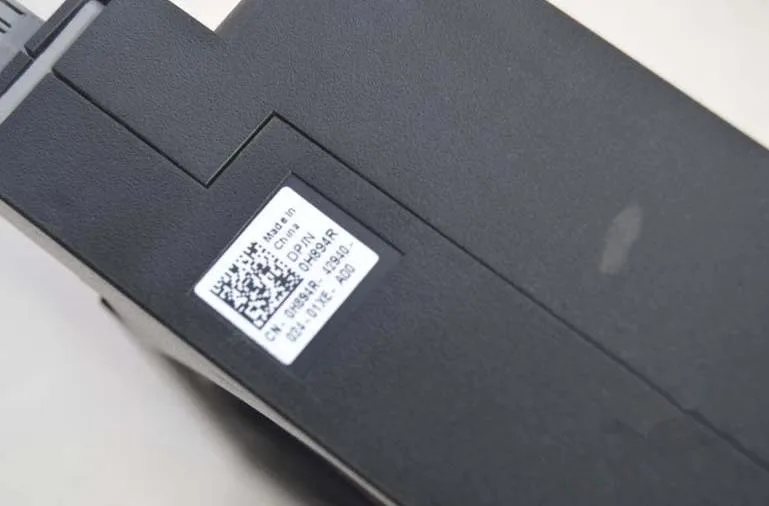

This unit suits administrators replacing a 0H894R fan in a DELL R910 or similar high-density rack systems needing maximum static pressure of 1.412 in H2O. Builders requiring quiet operation below 66.5 dB(A) or standard PWM-only connectors should look at alternative models.

Dual-Power Interface Decides Fit

The defining specification is the combined motherboard 4-pin PWM plus large 4-pin power supply connector. Verify your chassis provides both headers; a standard 4-pin header alone cannot supply the 4.8A current this fan draws at 12V.

Highlights

  • Delivers 252.85 CFM airflow for dense server cooling
  • Spins at 5500 RPM to move 7.16 m³/min through chassis
  • Generates 1.412 in H₂O static pressure for restricted airflow paths
  • PWM speed regulation via motherboard 4-pin header
  • Dual 4-pin power interfaces ensure redundant supply

Specifications

TypeCase Fan

Questions about this item

Will the 120mm 5500 RPM PFC1212DE fit alongside the existing 0H894R cooling assembly in a Dell R910 chassis?

Yes, this 120×120×38 mm fan matches the Dell R910 0H894R specification and uses the same dual motherboard 4-pin plus large 4-pin power interface, so it installs directly beside the original cooling hardware.

How can I confirm the fan is running at the rated 5500 RPM and 252.85 CFM after installation?

Connect the 4-pin PWM header to the motherboard and monitor speed via BIOS or software; the tachometer signal will report 5500 RPM at 12 V, and the dual power interface ensures the 4.8 A current draw needed for the rated 252.85 CFM airflow.

Does the 35 cm cable reach the motherboard 4-pin and PSU large 4-pin headers without extra adapters?

The 35 cm lead terminates in both a motherboard 4-pin PWM connector and a large 4-pin power-supply connector, so no separate adapters or cables are required for the dual-power design.
