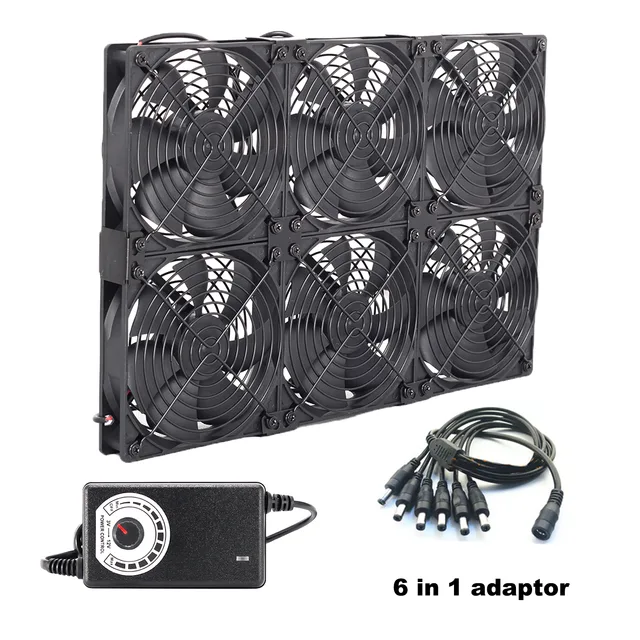

Six 120mm square fans with black frames and a small controller box

SXDOOL

SXDOOL 6IN1 Six-Fan Cooling Kit 12025 3-12V Controller Dual Ball Bearing

SKU CH-BB78-MHRV1

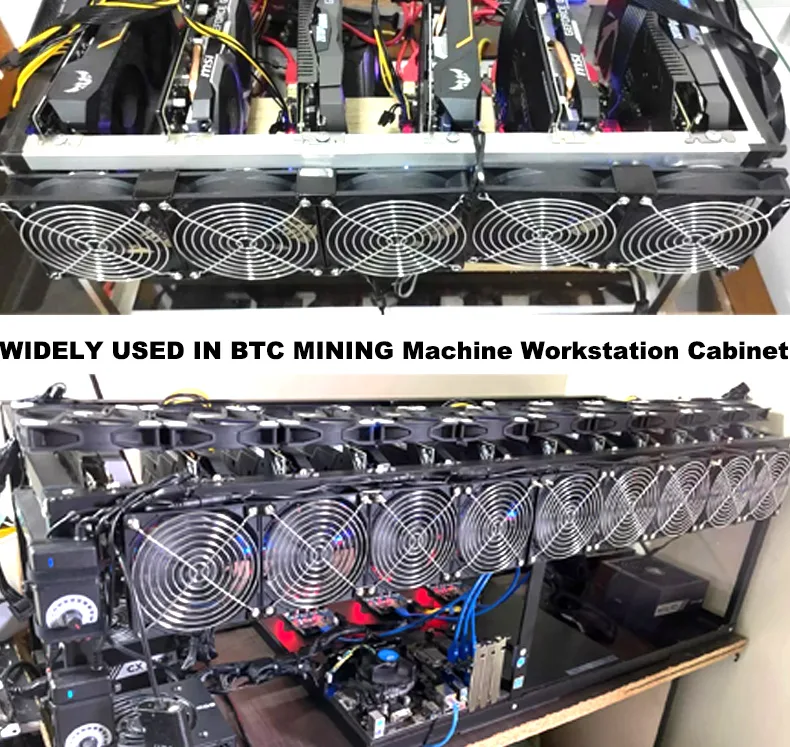

Six 120mm DC fans with an adjustable 3-12V controller and splitter for mining rigs and equipment cabinets

  • Six fans in one kit for complete enclosure coverage
  • Adjustable 3-12V controller sets airflow from silent to maximum
  • Dual ball bearings on each fan extend service life
  • 120x120x25mm frame fits standard 105mm mounting holes
  • AC adapter handles 100-240V input for worldwide use

Complete Six-Fan Kit

The SXDOOL 6IN1 kit provides six 120mm DC fans, a 3-12V adjustable controller, and a 6-way splitter in a single package. It is intended for operators of mining rigs, workstation cabinets, or equipment enclosures who need adjustable airflow across multiple mount points.

Adapter Limits and Voltage Steps

The included adapter accepts 100-240V AC at 50/60Hz and outputs up to 2A total at 3-12V DC through a 5.5 x 2.1mm barrel connector. Per-fan reference points are 1100 RPM and 48 CFM at 3V, 1600 RPM and 58.8 CFM at 5V, 2600 RPM and 79 CFM at 10V, and 3200 RPM and 94.5 CFM at 12V. The 2A cap means all six fans cannot run at their individual 12V maximums simultaneously.

Mounting and Connector Constraints

Each fan measures 120 x 120 x 25mm with 105mm hole spacing, 4.3mm hole diameter, and a 230mm lead ending in a 5.5 x 2.1mm female DC plug. Builders who need higher total airflow than the 2A adapter can deliver, or who require a different mounting pattern or connector type, should verify compatibility before purchase.

Highlights

  • Six fans in one kit for complete enclosure coverage
  • Adjustable 3-12V controller sets airflow from silent to maximum
  • Dual ball bearings on each fan extend service life
  • 120x120x25mm frame fits standard 105mm mounting holes
  • AC adapter handles 100-240V input for worldwide use

Specifications

No published specifications for this item yet.

Questions about this item

Will the included power adapter run all six fans at full 12V speed simultaneously?

The adapter is rated for 2A total output. Each fan draws about 5.02W at 12V, so six fans would exceed the adapter's 24W limit. You must lower the voltage or use an external supply for full-speed operation.

What mounting pattern do the fans use and will they fit a standard 120mm fan grille?

Each fan has a 120 x 120 x 25mm frame with 105mm hole spacing and 4.3mm diameter holes, matching the common 120mm mounting standard used on most grilles and chassis.

Can I plug the fans directly into a wall outlet if I lose the controller?

No. The fans are low-voltage DC devices with a 5.5 x 2.1mm barrel connector. They must only be powered by the supplied 3-12V adapter or another suitable DC source; direct AC connection will destroy them.
