SXDOOL ad0812mb-a7bgl 80mm PWM case fan 12V 0.15A 550-2650 rpm
An 80 mm PWM case fan with double-ball bearing runs at 550-2650 rpm from a 12 V four-pin header
- TypeCase Fan
- PWM speed control adjusts 550-2650 rpm to match thermal load
- Double ball bearing reduces friction for longer service life
- 12 V 0.15 A draw keeps power consumption low
- 30 cm 4-pin 2510 lead fits standard motherboard headers
Compact 80 mm PWM fan for tight builds

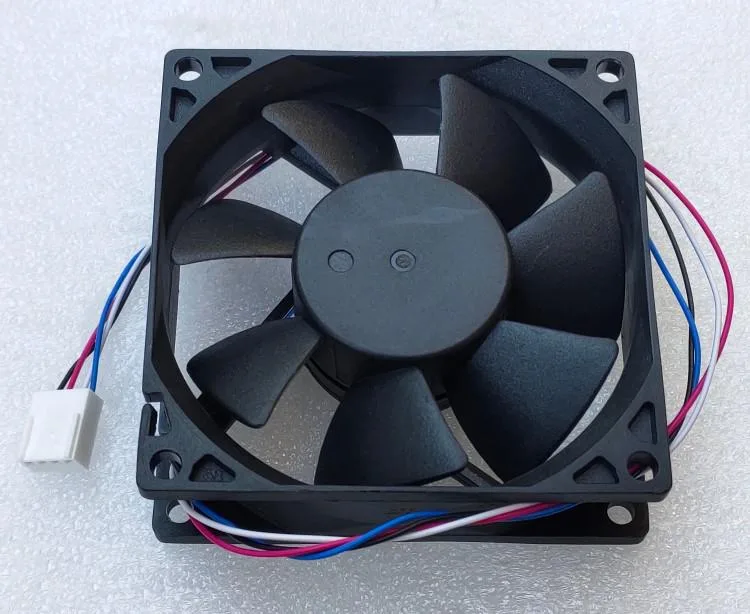

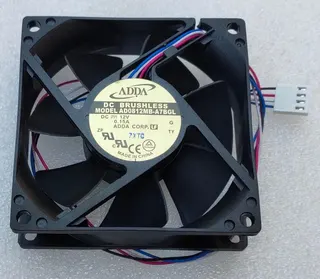

The SXDOOL ad0812mb-a7bgl is an 80 mm case fan with a 4-pin PWM connector and double ball bearing. It runs on 12 V DC at 0.15 A and spins between 550 and 2650 rpm. The 25 mm frame depth and 30 cm lead suit small-form-factor cases and CPU coolers that need a slim 8025-class replacement.
Fits 4-pin headers and frees larger mounts
The 2510-4p interface plugs directly into standard motherboard fan headers for speed control without extra adapters. Its narrow frame leaves room around dense component layouts, while the double ball bearing keeps noise low at lower speeds. Builds needing higher static pressure or larger diameter airflow will need a different fan size.
Highlights
- PWM speed control adjusts 550-2650 rpm to match thermal load
- Double ball bearing reduces friction for longer service life
- 12 V 0.15 A draw keeps power consumption low
- 30 cm 4-pin 2510 lead fits standard motherboard headers
Specifications
| Type | Case Fan |
|---|
Questions about this item
What is the maximum speed of the double ball bearing fan?
The fan reaches a maximum speed of 2650 rpm with a tolerance of ±5%.
How much current does the 12V PWM fan draw when running continuously?
The fan draws 0.15A from the 12V rail during sustained operation.
