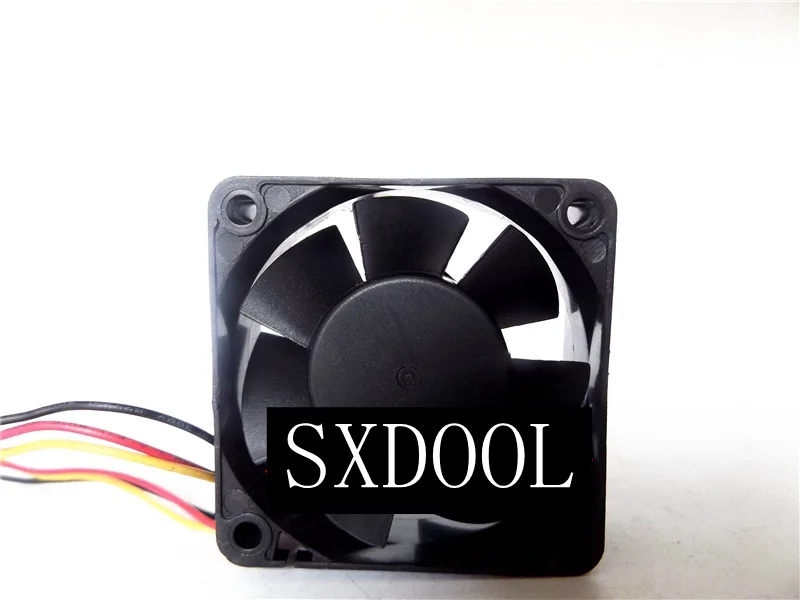

Black 60mm square case fan with three-pin connector

SXDOOL

SXDOOL FD126025HB 60mm 12V 0.18A 3-Pin Case Fan

SKU CH-6N0C-4DKT4 MPN FD126025HB

A 60 mm case fan with dual ball bearings, 12 V power and a 3-pin connector for speed monitoring

  • TypeCase Fan
  • Fan Size60mm
  • Bearing Type2 Ball
  • Power Connector3 Pin
  • ColorBlack
  • LEDNo
  • Double ball bearing extends operational lifespan
  • 12V 0.18A input keeps power draw low
  • 60mm frame fits tight chassis spaces
  • Three-pin connector enables speed monitoring
  • Flame-retardant PBT housing meets VO rating

Compact 60mm cooling fan for tight builds

This 60mm case fan suits small-form-factor cases or targeted component cooling where larger units cannot fit. It runs on 12V power and draws 0.18A for a rated 2.16W. The three-pin connector supplies tachometer feedback so the motherboard can monitor speed.

Simple three-pin mounting

The three-wire harness uses red for positive, black for negative and yellow for the speed signal, matching standard headers. Double ball bearings resist wear better than sleeve types, especially in horizontal orientations. The PBT frame with 30% glass fibre and VO flame retardant rating adds rigidity during screw installation.

Steady airflow within a wide temperature range

Operating limits span from -10°C to +70°C, so the fan maintains performance during prolonged loads inside warm enclosures. Storage tolerance reaches -40°C to +70°C for harsh environments. Counter-clockwise rotation from the blade side directs air through the frame consistently over long sessions.

Highlights

  • Double ball bearing extends operational lifespan
  • 12V 0.18A input keeps power draw low
  • 60mm frame fits tight chassis spaces
  • Three-pin connector enables speed monitoring
  • Flame-retardant PBT housing meets VO rating

Specifications

BrandY.S.TECH
SeriesFD126025HB
ModelFD126025HB
TypeCase Fan
Fan Size60mm
Bearing Type2 Ball
Power Connector3 Pin
ColorBlack
LEDNo
Dimensions60mm x 60mm x 25mm
Package Contents1 x fan

Questions about this item

How can I verify the fan is running correctly after connecting it to a 12V header?

The three-wire output uses red for positive, black for negative, and yellow for the speed signal; the motherboard or fan controller will report an RPM reading once the 12V supply is active.

What comes in the package and what must I supply separately?

The box contains one 60mm fan with a 3-pin connector; you need to provide a compatible 3-pin motherboard header or fan controller and mounting screws.

Which bearing type should I choose for continuous operation at up to 70 degrees Celsius?

The FD126025HB uses a double ball bearing rated for an operating range of -10 to +70 degrees Celsius, making it suitable for sustained high-temperature use.
