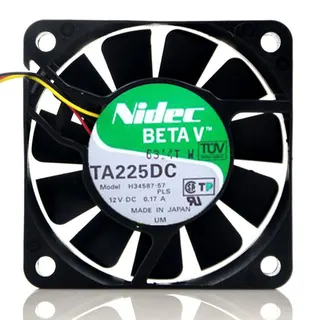

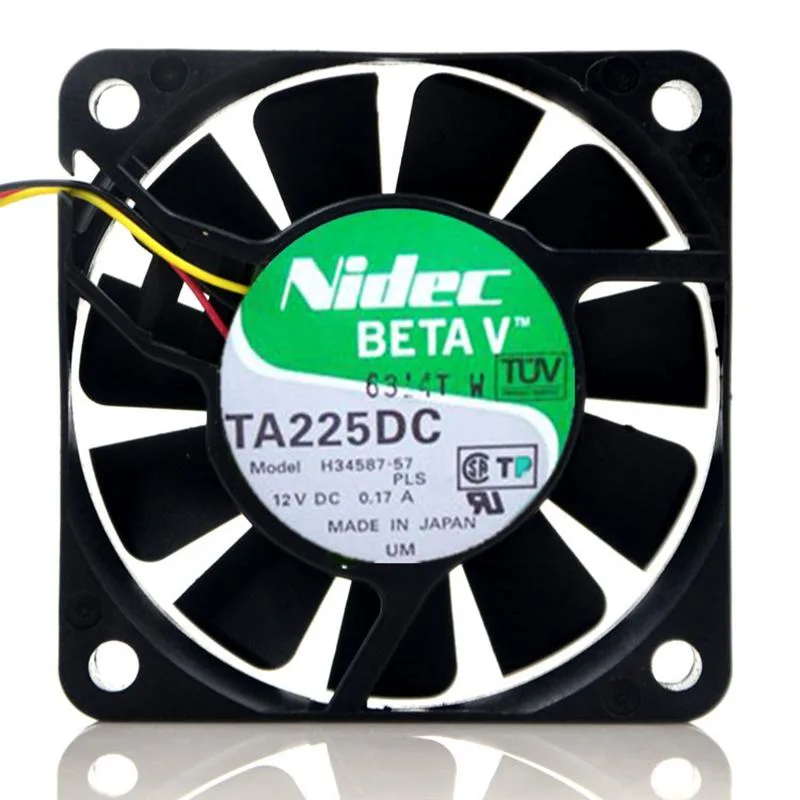

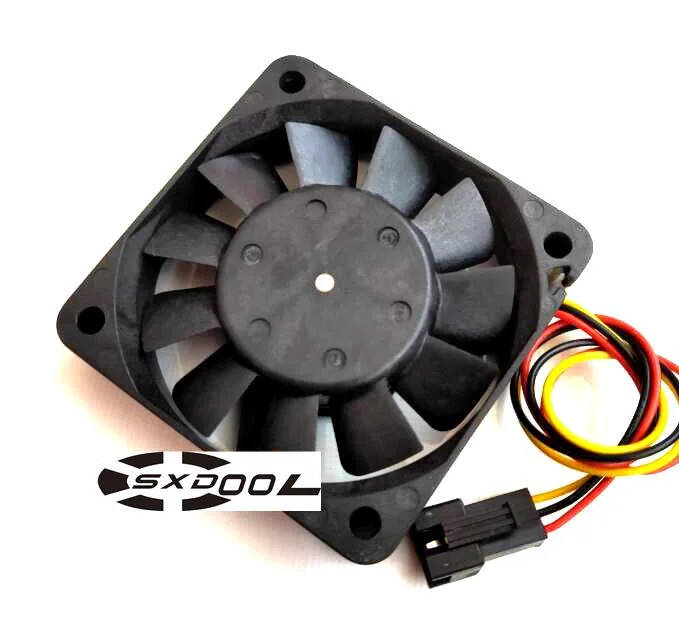

Square black frame fan with centre hub and curved blades, 60 by 60 by 15 mm

SXDOOL

SXDOOL H34587-57 60x60x15mm 12V 24CFM 5900RPM case fan

SKU CH-2GF7-Q589S MPN H34587-57

A 12 V Nidec case fan delivering 24 CFM at 5900 RPM with 38 dBA noise and double ball bearings for long life

  • Compact 60 mm frame fits tight chassis spaces
  • 24 CFM airflow at 5900 RPM clears heat fast
  • 80 Pa static pressure pushes air through dense fins
  • Double ball bearing runs 38 dBA for quiet operation
  • 12 V 1.92 W draw keeps power use low

Target application

This 60×60×15 mm fan is built for the Mitsubishi VS-XL21CH and VS-XL50CH DLP large-screen projectors. It supplies 12 V DC cooling where the original H34587-57 unit is specified.

Installation notes

The frame matches the 60 mm square footprint and 15 mm depth of the factory fan, so it fits the existing mounting holes without modification. The counter-clockwise rotation (viewed from the blade side) must align with the projector’s airflow path; reversing it will reduce cooling. The two-wire 12 V connection uses the same polarity as the OEM unit, but verify the connector keying before powering on.

Sustained operation

At 5900 RPM the double ball bearing delivers 24 CFM and 80 Pa static pressure continuously, drawing 0.16 A (1.92 W). Acoustic output stays at 38 dBA under constant load, and the maintenance-free bearing is rated for long service life without lubrication intervals.

Highlights

  • Compact 60 mm frame fits tight chassis spaces
  • 24 CFM airflow at 5900 RPM clears heat fast
  • 80 Pa static pressure pushes air through dense fins
  • Double ball bearing runs 38 dBA for quiet operation
  • 12 V 1.92 W draw keeps power use low

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the fan is running correctly after installation?

The fan should spin at 5900 RPM and draw 0.16 A at 12 V, producing 24 CFM airflow with a noise level around 38 dBA.

What comes in the box and what must I purchase separately?

The package contains the Nidec H34587-57 fan unit only; mounting screws, fan filters or a PWM controller are not included and must be bought separately.

Which version of this fan should I choose for a Mitsubishi DLP projector?

Select the H34587-57 model rated 12 V, 60×60×15 mm, 5900 RPM with double ball bearings — it matches the VS-XL21CH and VS-XL50CH cooling requirements.
