Black square 92 mm frame 38 mm thick four wire lead

SXDOOL

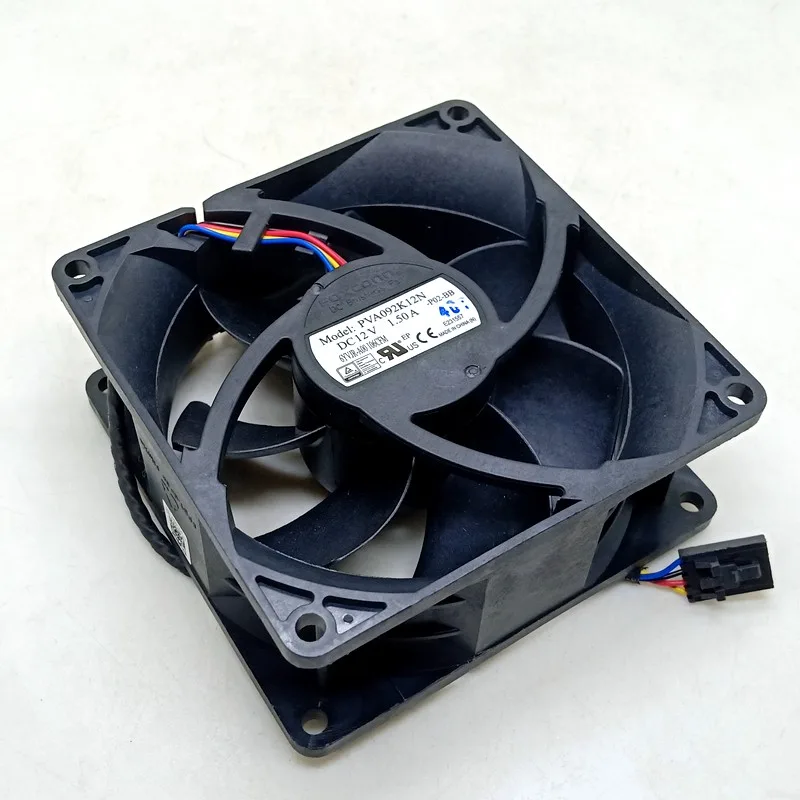

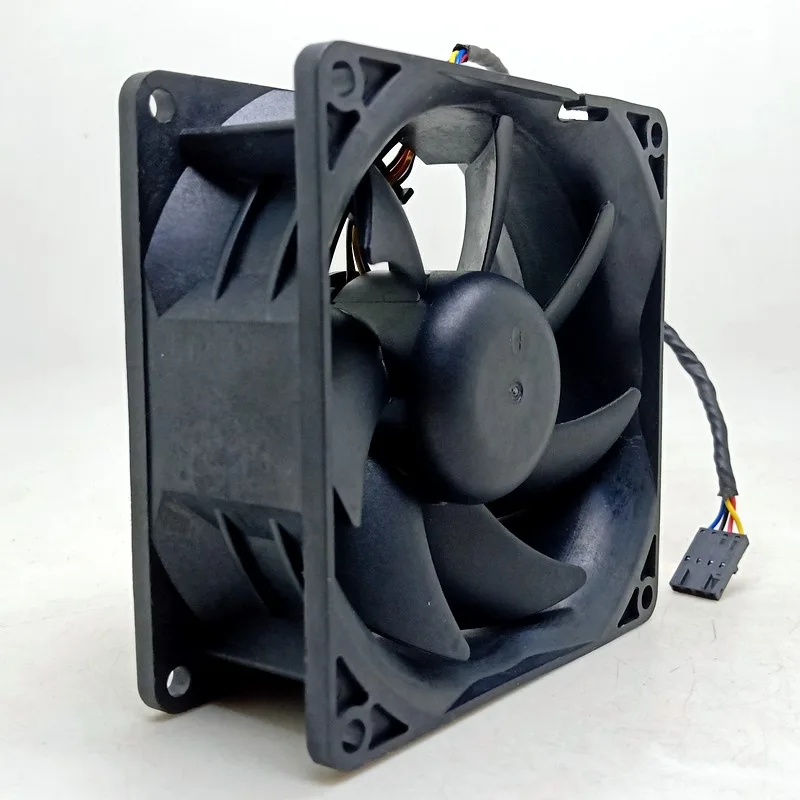

SXDOOL PVA092K12N-P02-BB 92×92×38 mm 12 V 4500 rpm case fan

SKU CH-4G9F-Y1ZCS MPN PVA092K12N-P02-BB

A 92×92×38 mm 12 V server fan with double ball bearings, 4500 rpm speed and 106 CFM airflow for Dell 6YVJR-AOO and Y1F7R-AOO systems

  • High airflow of 106 CFM cools dense server chassis
  • Double ball bearing runs 4500 rpm without maintenance
  • 4-wire PWM lead gives precise speed control
  • 12 V 1.50 A draw fits standard server power
  • 92×92×38 mm frame matches Dell 6YVJR-AOO mounting

SXDOOL 92×92×38 mm 12 V server fan

This SXDOOL case fan measures 92 by 92 by 38 mm and runs on 12 V power. It spins at 4500 rpm and delivers 106 CFM of airflow. A maintenance-free double ball bearing supports long-term operation in continuous-use environments.

Suited for Dell 6YVJR-AOO

The four-wire lead provides PWM speed control and tachometer feedback for managed cooling systems. Builders working on other platforms should verify mounting hole spacing and connector pinout before purchase. The 1.50 A current draw requires a header rated for at least that load.

4500 rpm speed rating

This single figure determines whether the acoustic profile and thermal throughput match the target chassis. Higher rpm generally increases noise while improving heat removal in dense server configurations.

Highlights

  • High airflow of 106 CFM cools dense server chassis
  • Double ball bearing runs 4500 rpm without maintenance
  • 4-wire PWM lead gives precise speed control
  • 12 V 1.50 A draw fits standard server power
  • 92×92×38 mm frame matches Dell 6YVJR-AOO mounting

Specifications

No published specifications for this item yet.

Questions about this item

How can I confirm the 4-wire PWM control is working after installing the fan?

The motherboard BIOS or fan-control software should report a speed near 4500 rpm and allow duty-cycle adjustment through the fourth wire.

What ships with the fan and what must I source separately?

The unit includes the 92×92×38 mm fan with a 4-wire lead; mounting screws and any required adapter cables are not included.

Which version matches a Dell 6YVJR-AOO or Y1F7R-AOO server?

The PVA092K12N-P02-BB model is the original Foxconn part specified for those Dell servers, delivering 106 CFM at 12 V and 1.50 A.
