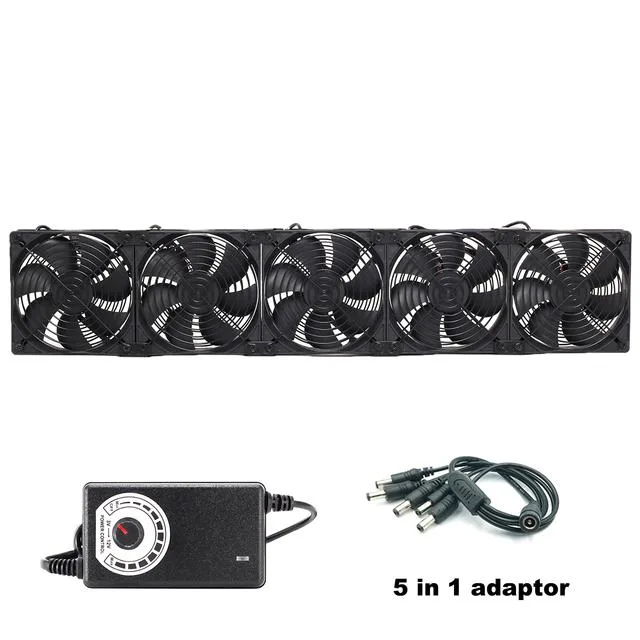

Five black 120mm square DC fans with controller and splitter

SXDOOL

SXDOOL SXD12025 5IN1 5-Fan DC Cooling Kit 120mm mining hardware

SKU CH-6FTE-M6KQ3

Five adjustable 120mm DC fans with controller and splitter deliver 48 to 94.5 CFM each at 1100 to 3200 RPM for mining rig cooling

  • Complete five-fan cooling kit with adjustable controller and splitter
  • Wide 100-240V AC input converted to 3-12V DC up to 2A total
  • Per-fan airflow scales from 48 CFM at 3V to 94.5 CFM at 12V
  • Dual ball bearings and seven blades give quiet 18.8 dBA at low speed
  • Standard 120x120x25mm frames with 105mm mounting holes fit common enclosures

Complete five-fan cooling kit

The SXD12025 5IN1 kit supplies five 120mm DC fans, an adjustable 3-12V controller, and a 5-way splitter in one pack. It is built for operators who need scalable airflow for mining rigs, workstation cabinets, or equipment enclosures. The adapter accepts 100-240V AC at 50/60Hz and outputs up to 2A through a 5.5 x 2.1mm barrel jack. Fans must not be connected directly to AC mains.

Adjustable controller and splitter change deployment

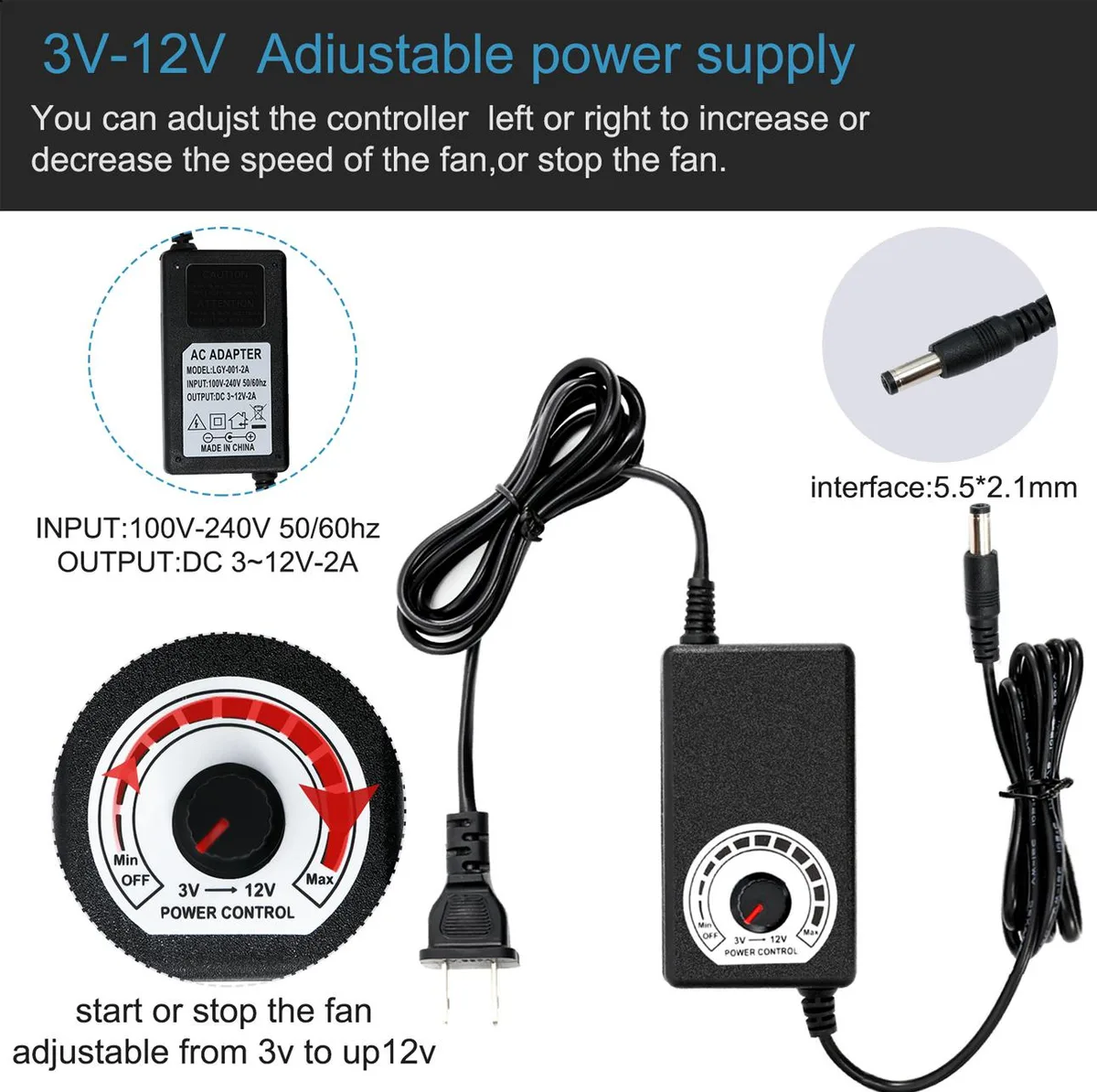

The included adapter lets you set voltage from 3V to 12V, altering speed, airflow, and noise per fan without rewiring. At 3V a single fan runs at 1100 RPM, 48 CFM, 18.8 dBA, and under 0.2W; at 5V it reaches 1600 RPM, 58.8 CFM, 23.5 dBA, and 0.65W; at 10V it hits 2600 RPM, 79 CFM, 31.2 dBA, and 2.8W; at 12V it delivers 3200 RPM, 94.5 CFM, 38.5 dBA, and 5.02W. The 5-way splitter distributes the adapter's 2A total limit across all five fans, so combined performance depends on the chosen voltage and resulting load.

Suits builders needing variable airflow

Each fan measures 120 x 120 x 25mm with 105mm hole spacing and 4.3mm hole diameter, fitting common mounting patterns. The 230mm lead and DC 5.5 x 2.1mm connector simplify wiring inside cabinets. Buyers who need higher static pressure than dual ball bearing seven-blade fans provide, or who require a single fan drawing more than the adapter's 2A shared budget, should look at alternative cooling solutions.

Highlights

  • Complete five-fan cooling kit with adjustable controller and splitter
  • Wide 100-240V AC input converted to 3-12V DC up to 2A total
  • Per-fan airflow scales from 48 CFM at 3V to 94.5 CFM at 12V
  • Dual ball bearings and seven blades give quiet 18.8 dBA at low speed
  • Standard 120x120x25mm frames with 105mm mounting holes fit common enclosures

Specifications

No published specifications for this item yet.

Questions about this item

Will the included power adapter run all five fans at full speed?

The adapter supplies up to 2A total at 12V. Five fans at 12V each draw 5.02W, which exceeds the adapter's 24W limit, so full speed on all five simultaneously is not supported.

What voltage should I set for quiet operation in a home office?

At 3V each fan runs at 1100 RPM and 18.8 dBA, delivering 48 CFM. At 5V the noise rises to 23.5 dBA with 58.8 CFM. Choose the lowest voltage that meets your thermal target.

Do these fans fit standard 120mm mounting holes?

Yes. Each fan uses 105mm hole spacing with 4.3mm diameter holes, matching the common 120mm pattern. Verify your chassis depth allows 25mm thickness and that the 230mm leads reach your routing.
